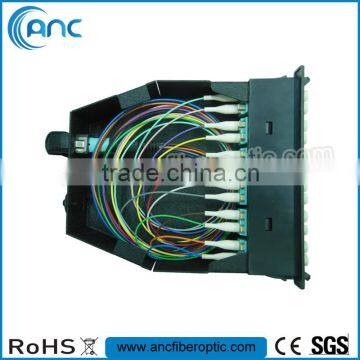

Cheap 24F MPO- LC Cassette
Cheap 24F MPO-LC Cassettes are specially designed to reduce installation time and cost for an optical network infrastructure in the premises environment. The LGX cassettes provide secure transition between MTP/MPO and LC/SC/ST/FC connectors. MTP/MPO cassettes are used to interconnect MTP/MPO backbones with LC/SC/ST/FC patching. ANC offers a wide range of single-mode and multi-mode MTP/MPO cassettes with 12-strand or 24-strand configuration. The standard MTP/MPO cassettes can accommodate 12 and 24 port configurations. They are available in all fiber modes and connector options.
Specification
12- or 24-Fiber MTP connectors on the back
MTP connectors or discrete connectors on the front, including LC, SC, and MU
Single-mode, multimode, and laser optimized multimode types available
Up to 48 fibers with MTP cassettes
Features
Pre-terminated fiber eliminates the need for complicated field terminations and splices
A variety of fiber types are available including single-mode, multimode, laser-optimized multimode
Easy one-hand installation and removal
Usage
Telecommunication
Data Network
LAN, FTTX
CATV
Technical Data
Type | Single-mode | Single-mode | Multi-mode | |||
(APC polish) | (PC polish) | (PC polish) | ||||
Fiber count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. | |||
Fiber type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3 etc. | |||
Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
Low Loss | Low Loss | Low Loss | ||||
≤0.35 dB | ≤0.70 dB | ≤0.35 dB | ≤0.70 dB | ≤0.35dB | ≤0.60dB | |
Return Loss | ≥60 dB | ≥60 dB | N/A | |||
Durability | ≥500 times | ≥500 times | ≥500 times | |||
Operating Temperature | -40℃ ~ +80℃ | -40℃~ +80℃ | -40℃~ +80℃ | |||
Test Wavelength | 1310nm | 1310nm | 850nm | |||
