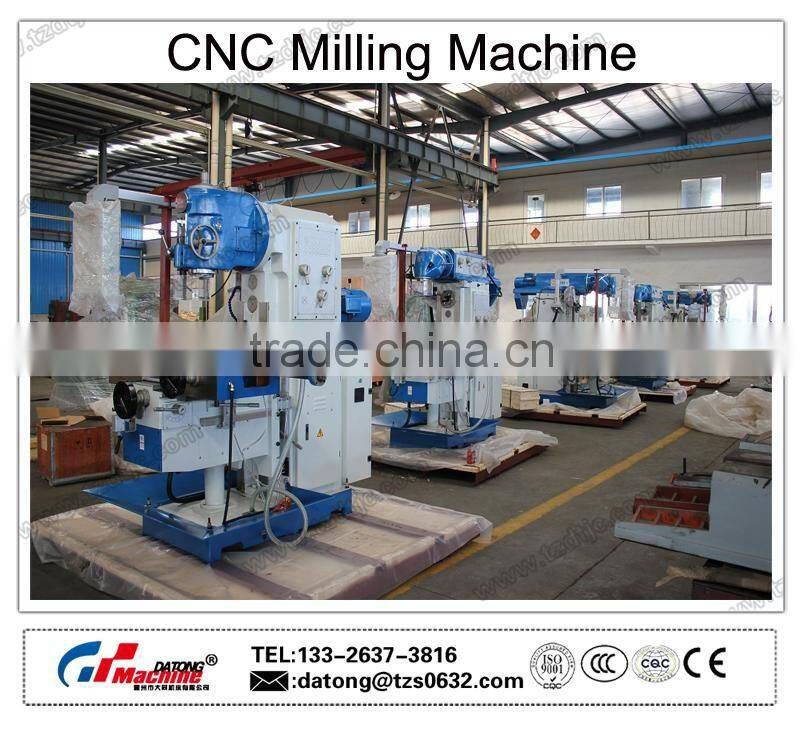

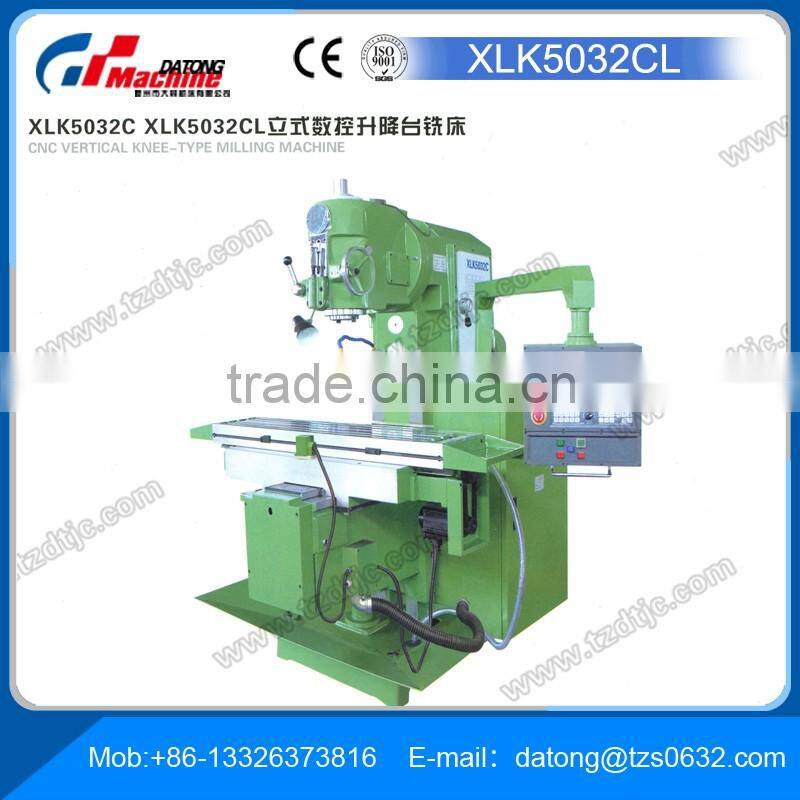

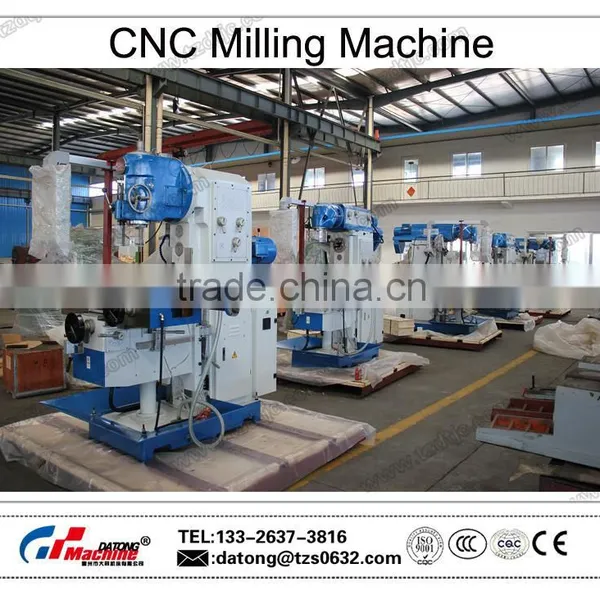

CNC Vertical Knee-type Milling Machine XLK5032CL
Specifications:
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in machining of plane and arbitrary angle plane, and slotting, drilling, reaming, boring etc.
Model |
XLK5032C |
XLK5032CL |
Table size |
1325X320mm |
1600X320mm |
T-slots(NO./Width/Pitch) |
3/18/70mm |
|
Table Travel (X/Y/Z) |
1100/320/450mm |
1300/320/450mm |
Table rapid feed speed(X/Y/Z) |
4000/4000/3000mm/min |
|
Spindle hole taper |
7:24 ISO50 |
|
Spindle speed range |
12 steps 50-1475rpm |
|
Stroke of spindle quill |
70mm |
|
|
Max.swivel angle of vertical milling head |
±30° |
|
|
Distance between spindle nose and table surface |
50-500mm |
|
|
Distance from spindle center line to column |
378mm |
|
|
Torque of X/Y/Z axis AC servo motor |
10/10/18N.m |
|
Main motor Power |
5.5kw |
|
Overall size (L×W×H) |
2245X2100X2150mm |
2520X2100X2150mm |
Net weight |
2850kg |
2900kg |
Standard equipment
KND-1000MI
Optional equipment
1.The fourth axis CNC rotary table
2.CNC dividing head
Optional CNC System
FANUC oi mate
GSK System

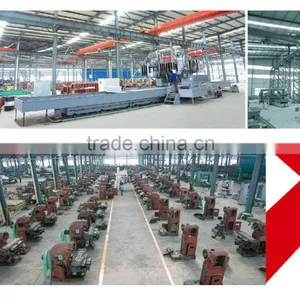

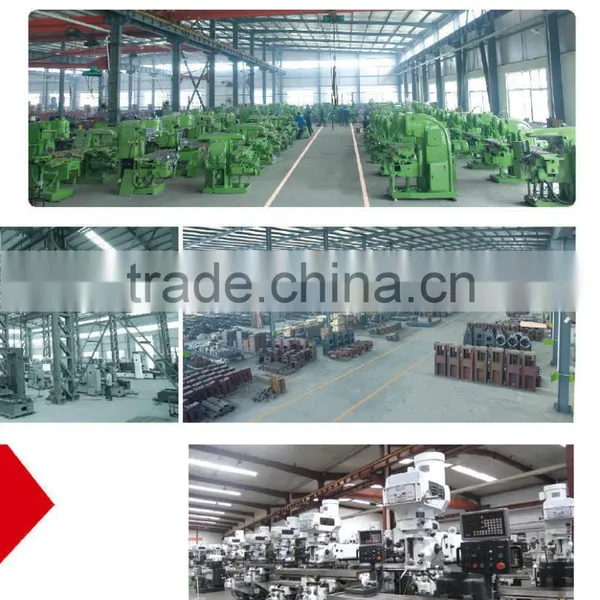

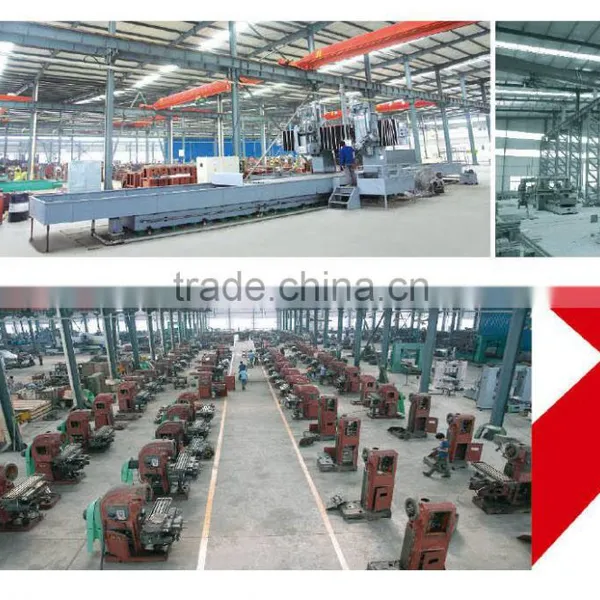

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
