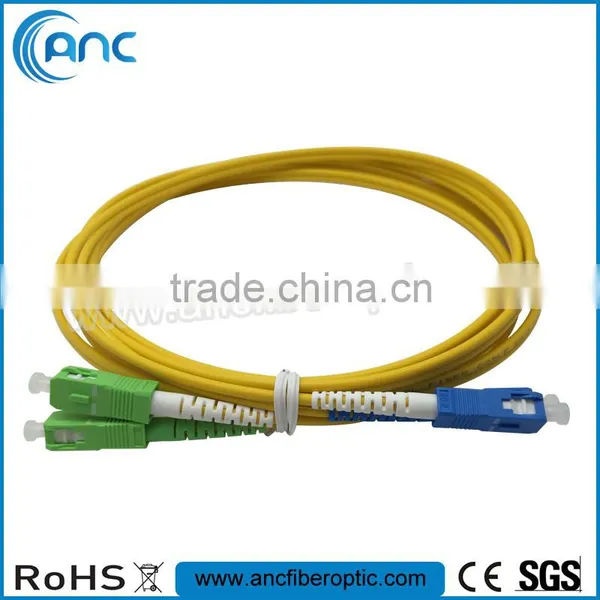

Customized SCA SC Optical Fiber Patch Cord
SC/APC-SC/PC Optical Fiber Patch Cord manufactured by ANC International Co., Limited is widely used in data network and FTTx. This SC optical fiber patch cord combines duplex 9/125 single-mode fiber cable with machine-polished SC connectors. Available in a variety of jacket styles including standard PVC (OFNR), Plenum (OFNP), and Low-Smoke (LSZH). Our skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent quality and looking. Our single mode fiber optic patch cables are fully compliant with international standards and are with very good quality and competitive prices.
Specification
Simplex or Duplex fiber optic cable assemblies optional
Low insertion loss and high return loss
Cable lengths and cable types optional
PC or UPC or APC termination types
Features
Compliant with Telcordia and IEC standard
RoHS compliant for all fiber optic patch cord material
Usage
Telecommunication
Data Network
LAN, FTTX
CATV
Technical Data
Item |
Parameter |
|
Single-mode |
Multi-mode |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
≥50 dB (PC), ≥60 dB (APC) |
|
Repeatability |
≤0.1dB |
|
Durability |
0.2dB Max. 1000 mattings |
|
Operating Temperature |
-40℃~+85℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
ANC can produce customized fiber optic patch cords at high quality, fast delivery and good price. The patch cords include:
1. SC, LC, FC, ST, MU, MTRJ, D4, DIN Fiber Optic Patch Cord
2. E2000 Patch Cord
3. SMA Patch Cord
4. MPO/MTP Cable Assembly
5. ESCON, FDDI, LX.5 patch cord
6. Waterproof fiber optic patch cord
7. Armored Patch Cord
8. Multi fiber Breakout/Distribution/Mini Fan-out Patch Cord
9. Mode-conditioning Patch Cord
10. TOSA, ROSA receptable & Module Pigtail
ANC Production Line
