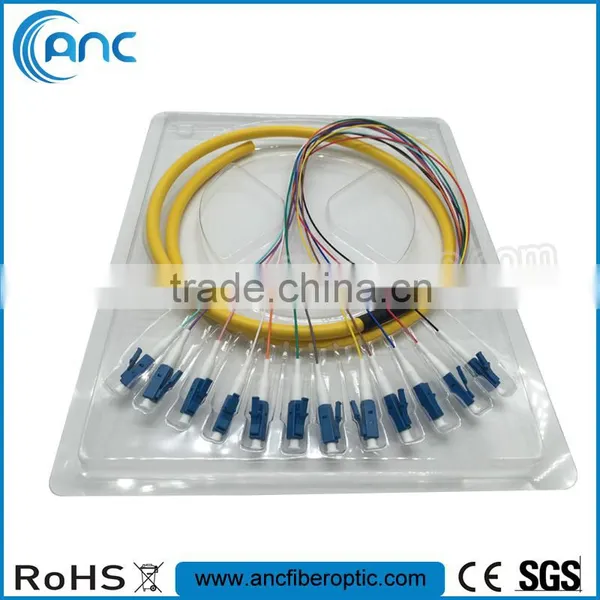

Customized 12 Core Singlemode Optical Fiber Cable with FC SC/APC LC Connector
Customized 12 Core Singlemode Optical Fiber Cable with FC SC/APC LC Connector manufactured by ANC International Co., Limited is designed for patch panels or cable ducts where space saving is required. The patch panels have either array fusion splicing (between outside plant cables and bare ribbon pigtails) or array interconnections (MPO/MTP fan-out). For cables that run from patch panels to equipment or patch panels to patch panels, the 12 Core optical fiber jumper cords with either ribbon cables or distribution cables or breakout cable can save space for cable ducts. Distribution cables are more rugged than ribbon cables. Most popular connectors, such as SC*1, FC*1, ST*2, LC, E2000*3, MU, DIN, D4, and MPO/MTP*4 are available. A fan-out cord can have MPO/MTP at one end, and fan-out terminated with single fiber connectors at the other end. The fan-out tube has a choice of 900um or 2mm.
Specification
4, 6, 8 and 12-fiber count available
Save duct space and installation time
900um, or 2mm fan-out tube
Jacketed ribbon cables, bare ribbons, or distribution cables
Features
Easy to use
RoHS compliant for all Fan-out fiber optic patch cord material
Usage
Telecommunication
Long haul networks
CATV networks
Building interconnections
Technical Data
Item |
Unit |
Value/ Performance |
|
Fiber Count |
- |
4, 6, 8 or 12 |
|
Cable Type |
- |
Bare ribbon, jacket ribbon or distribution cable |
|
Optical Performance |
- |
See corresponding patch cord data sheets |
|
Fan-out Diameter |
|
900um |
2mm |
Operating Temperature |
°C |
0 ~ +70°C |
-20 ~ +70°C |
Storage Temperature |
°C |
-5 ~ +70°C |
-40 ~ +70°C |
Tensile strength |
Kg |
>2.5kg |
>6.8kg |
1PC per bag
Customized packing
Shipping is within one week
ANC can produce customized fiber optic patch cords at high quality, fast delivery and good price. The patch cords include:
1. SC, LC, FC, ST, MU, MTRJ, D4, DIN Fiber Optic Patch Cord
2. E2000 Patch Cord
3. SMA Patch Cord
4. MPO/MTP Cable Assembly
5. ESCON, FDDI, LX.5 patch cord
6. Waterproof fiber optic patch cord
7. Armored Patch Cord
8. Multi fiber Breakout/Distribution/Mini Fan-out Patch Cord
9. Mode-conditioning Patch Cord
10. TOSA, ROSA receptable & Module Pigtail
ANC Production Line
