SM/MM Uniboot LC Fiber Optic Patch Cord

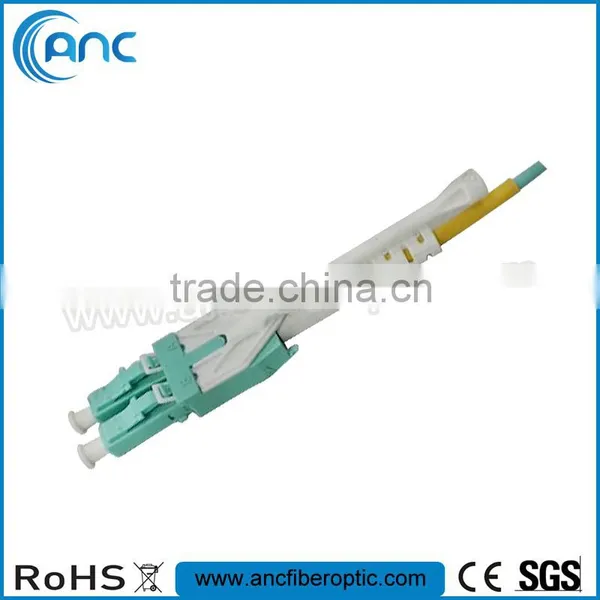

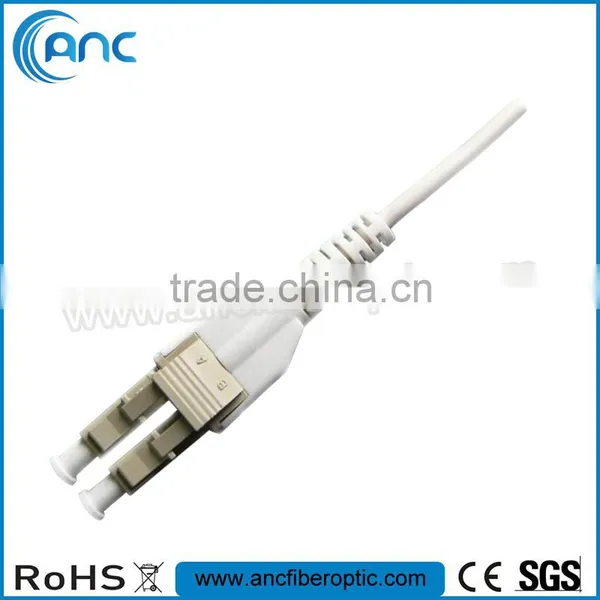

LC Uniboot cable assemblies offer a more compact design when compared to traditional duplex zipcord assemblies. These assemblies contain two LC connectors encased in a common housing with one boot, terminated on a single, round, two-fiber cable. LC Uniboot assemblies condenses the cable management to half the space used by regular zipcord assemblies. The LC Uniboot cable assemblies offer the best solution for high-density applications.
Specification
LC duplex connector uses a single housing and single boot
2.8mm dual fiber cable, LSZH jacket
ROHS compliant
Connector compliant with TIA/EIA-604-10A
Fiber Type: OM1, OM2, OM3 (10gig 150/300), OM4(10gig 550), Singlemode G652D, Singlemode G657A1, G657A1, G657B3 available
Features
Compliant with Telcordia and IEC standard
RoHS compliant for all fiber optic patch cord material
Usage
Private networks
Data centers
High density applications
Interconnect and cross-connect
Premise installations
Technical Data
Parameter |
Value |
Insertion Loss |
<0.3 dB (maximum) |
Return Loss |
>35 dB (MM) |
Durability |
500 cycles |
Operating Temperature |
-40°C to +85°C |
Ferrule |
Zirconia |
ANC can produce customized fiber optic patch cords at high quality, fast delivery and good price. The patch cords include:
1. SC, LC, FC, ST, MU, MTRJ, D4, DIN Fiber Optic Patch Cord
2. E2000 Patch Cord
3. SMA Patch Cord
4. MPO/MTP Cable Assembly
5. ESCON, FDDI, LX.5 patch cord
6. Waterproof fiber optic patch cord
7. Armored Patch Cord
8. Multi fiber Breakout/Distribution/Mini Fan-out Patch Cord
9. Mode-conditioning Patch Cord
10. TOSA, ROSA receptable & Module Pigtail
ANC Production Line
