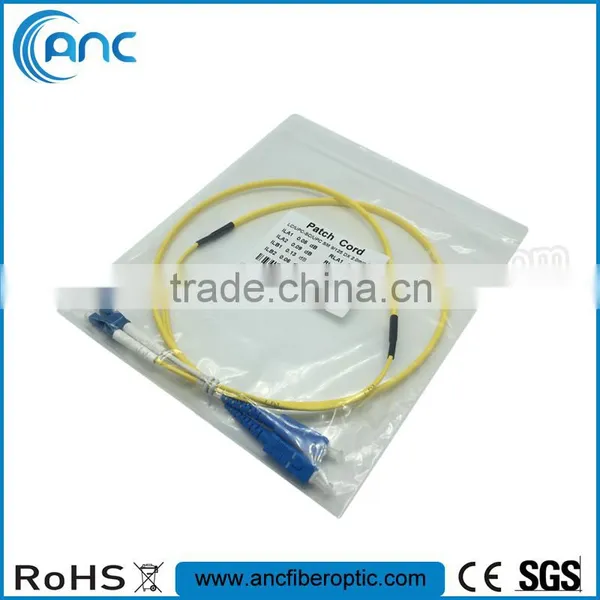

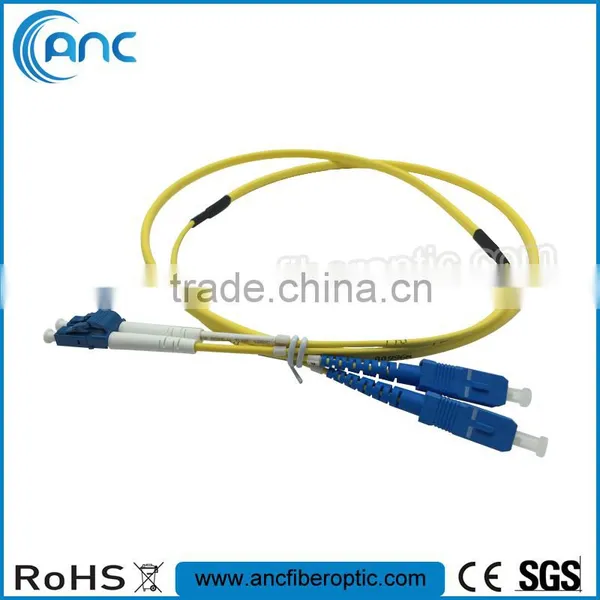

OEM SM LC SC Flat Duplex Figure 0 Fiber Optic Patch Cable
SM LC SC Flat Duplex Figure 0 Fiber Optic Patch Cable manufactured by ANC International Co., Limited is constructed with two simplex units held together with an overall LSZH/PVC jacket. Ideal for use in office LAN connections, patch cords, pigtails and internal point-to-point links where frequent handling is likely (e.g. data cabinets, equipment rooms, user outlets). Utilising 900µm buffered fibre, the cable unit is suitable for use with industry standard connectors and can be easily made into a patchcord.
Specification
SM G652D, SM 657, SM G655, OM1, OM2, OM3, OM4 fiber optional
1.6mm, 2mm, 2.4mm, 3mm core diameter optional
LSZH and PVC jacket optional
100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC)
100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC)
FC, SC, LC, MU, ST, MT-RJ, E2000, DIN, D4 etc. connector
Features
High strength Aramid yarn strength members for ease of handling
Easy to strip
RoHS compliant for all LC SC Flat Duplex Figure 0 Fiber Optic Patch Cable
Usage
Telecommunication
Data Network
LAN, FTTX
CATV
Technical Data
Characteristics |
Unit |
Value/Performance |
Insertion Loss (IL) |
dB |
PC≤0.2/UPC≤0.2/APC≤0.3 typical |
Return Loss (RL) |
dB |
PC≥50/UPC≥55/APC≥65 typical |
Accuracy |
dB |
1-10dB: ±1 typical; 10-25: ±10% typical |
Max input power |
dBm |
200 mW +23 dBm |
Polarization loss |
dB |
0.1 |
Radius of curvature |
mm |
7~25 |
Apex offset |
um |
0~50 |
Radial fiber height |
nm |
-50~+50 |
Angular offset |
<0.3 degrees |
|
Fiber roughness |
nm |
0~25 |
Ferrule roughness |
nm |
0~50 |
Fiber core |
nm2 |
0 |
Mode field diameter |
nm2 |
0 |
Ferrule contact zone |
nm2 |
<10 |
Operating Temperature |
℃ |
-40~+80 |
