Multipurpose Milling Machine - Servomill 700 for sale
Feature:
1.The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
2.This machine features a user-friendly design, significantly higher precision and increased machining capacity
3.Very high reliability and long service life of all components ensure drastically reduced maintenance and increased availability
4.Rigid machine base in a proven design, and meticulous workmanship
5.Variability via swiveling and moving top beam
6.Perfectly adjustable dovetail guide on the X axis, and wide square guides in Y and Z direction

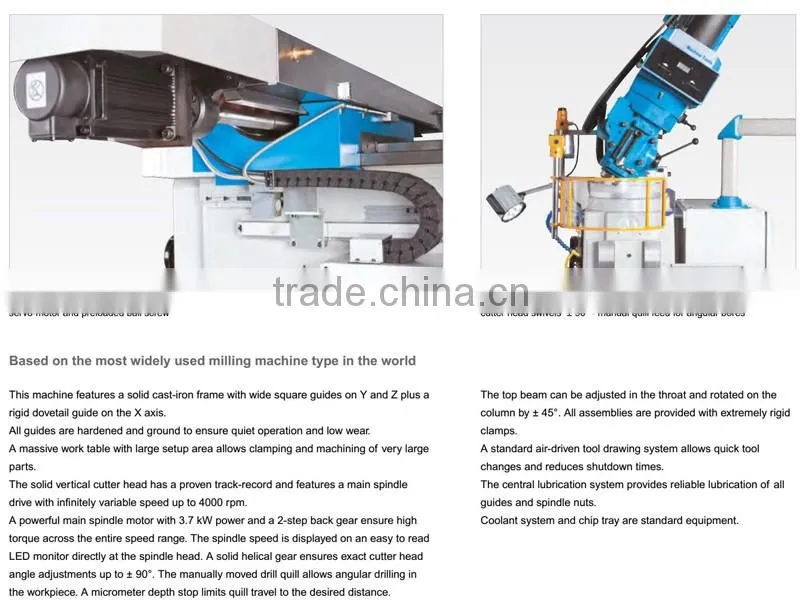

7.High-precision preloaded ball screws on all 3 axes
8.All guides are hardened and ground, and are supplied with oil by the central lubrication unit

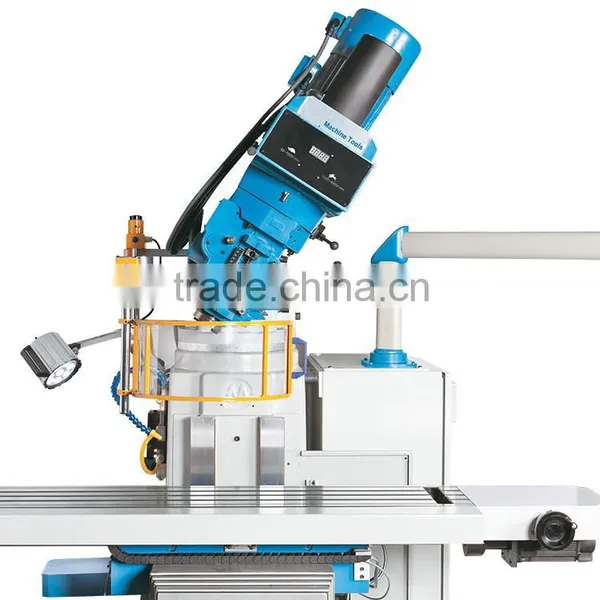

9.Cutter head swivels with pneumatic tool clamping and powerful 3.7 kW motor
10.Infinitely variable spindle speed with back gearing and LED speed indicator
11.Manual quill feed with micrometer depth stop allows for precise angular bores

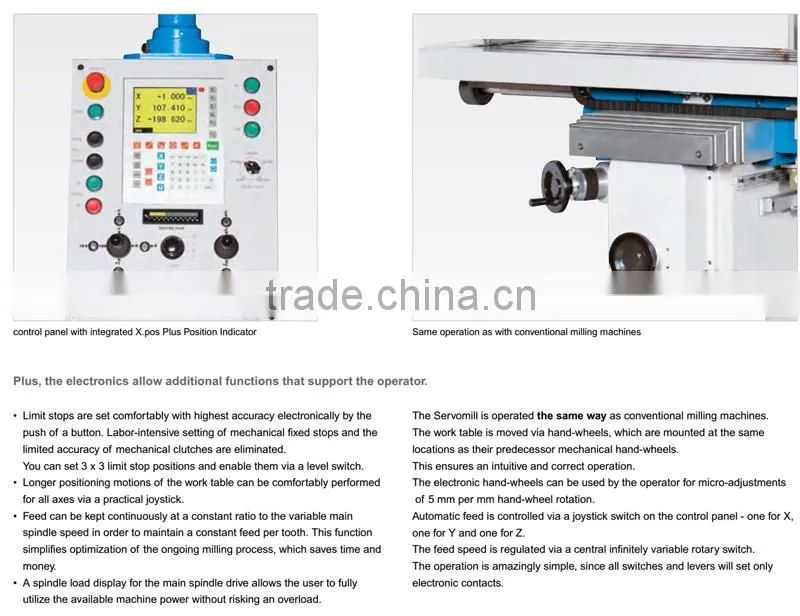

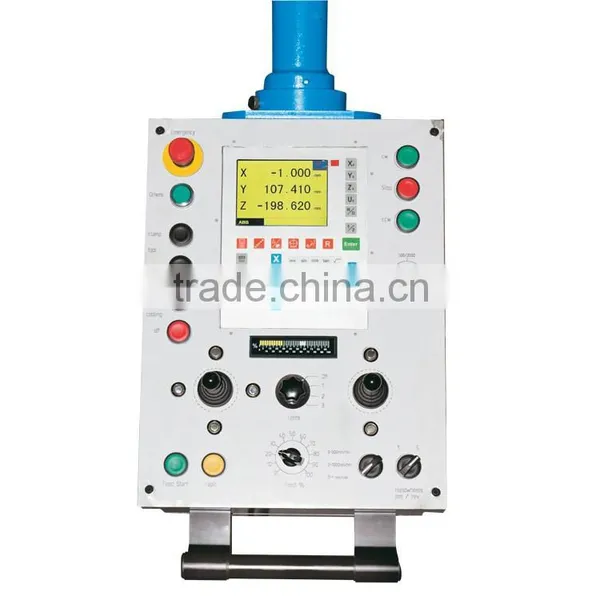

12Large, swiveling control panel with integrated position indicator
Specification:
| Model | Servomill 700 |
| Table dimensions | 1370X250 mm |
| Table load capacity (max.) | 350kg |
| Travel X/Y/Z axis | 680/365/370m |
| Spindle speed | 50-4000rpm |
| Quill stroke | 125mm |
| Spindle mount | ISO 40 |
| Spindle nose-to-table surface distance | 180-550mm |
| Rapid feed X/Y/Z axis | 5000/3000/2000mm/min |
| Feed speed (infinitely variable) | 0 - 1.000 mm/min |
| Feed per spindle revolution | 0,01 - 1 mm/R |
| Motor rating main drive | 3.7KW |
| Supply voltage | 400 V |
| Overall dimensions (length x width x height) | 2540x2156x2235 mm |
| Weight | 1800kg |
Standard Equipment:
3-axis position indicator, electronic hand-wheels, pneumatic tool clamping,
chip tray, work lamp, coolant system, manual central lubrication,
horizontal guideway cover, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
