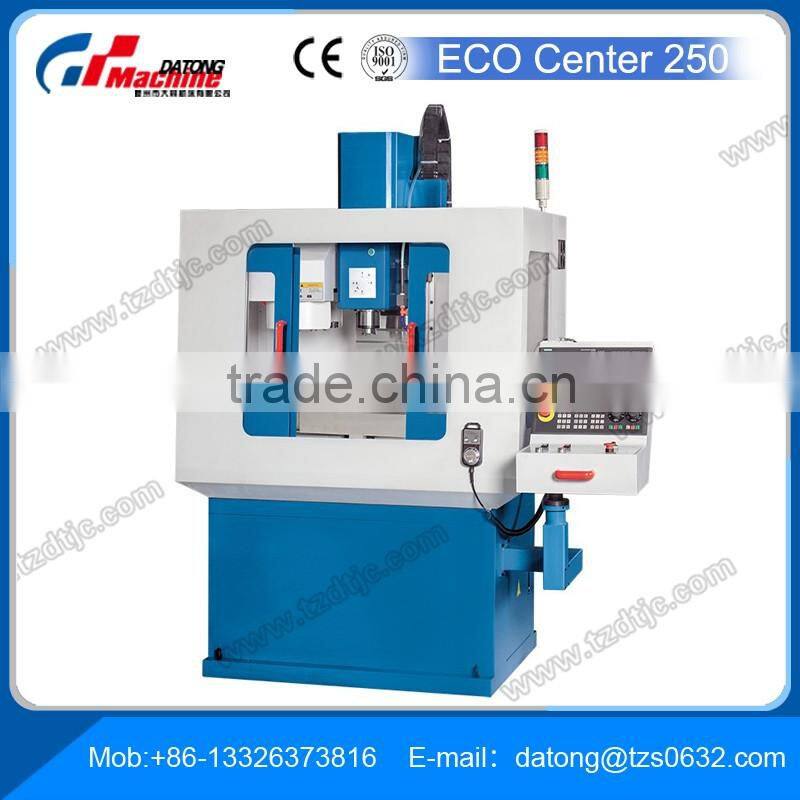

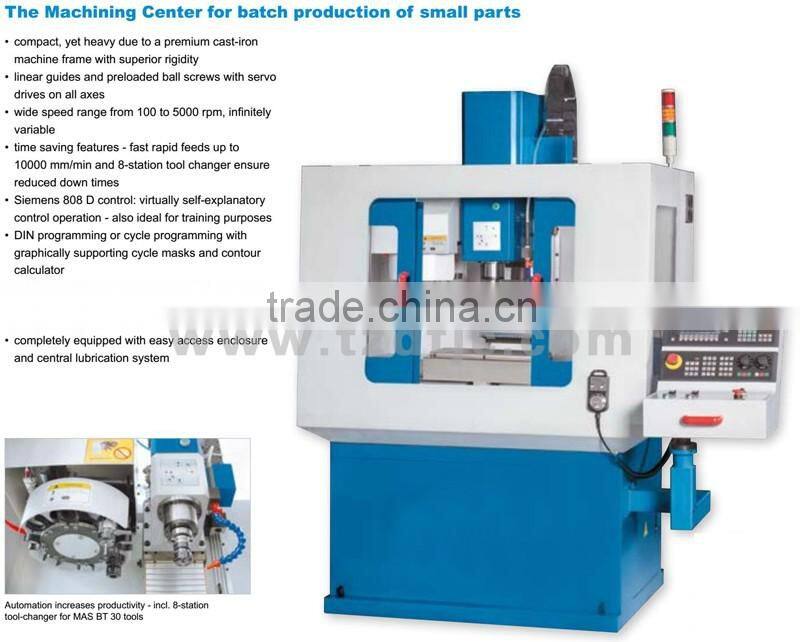

CNC Vertical Machining Center - EcoCenter 250 for sale
Feature:
1.Compact, yet heavy due to a premium cast-iron machine frame with superior rigidity
2.Linear guides and preloaded ball screws with servo drives on all axes
3.Wide speed range from 100 to 5000 rpm, infinitely variable

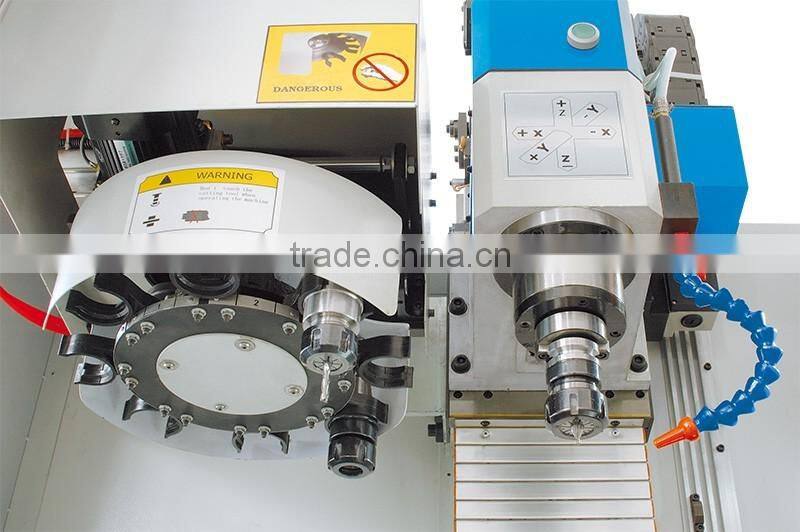

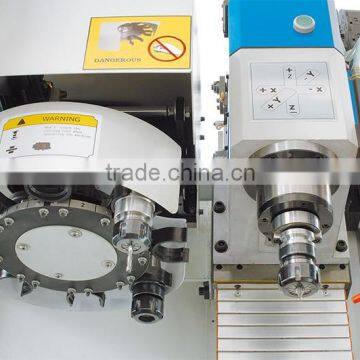

4.Time saving features - fast rapid feeds up to 10000 mm/min and 8-station tool changer ensure reduced down times
5.Siemens 808 D control: virtually self-explanatory control operation - also ideal for training purposes
6.DIN programming or cycle programming with graphically supporting cycle masks and contour calculator
7.Quick data transfers via USB port, plus standard "Sinumeric 808 on PC" Software for external programming
8.Completely equipped with easy access enclosure and central lubrication system
Specification:
| Model | EcoCenter 25 |
| Table set up area | 450X180 mm |
| Table load capacity | 60kg |
| Number of T-slots/Wideth/Spacing | 3/12/49mm |
| Spindle nose-to-table surface distance | 80-380mm |
| Throat | 320mm |
| Travel X/Y/Z axis | 250/200/300m |
| Spindle speed | 100-5000rpm |
| Spindle mount | MAS-BT 30 |
| Rapid feed X/Y/Z axis | 10000mm/min |
| Work Feed X/Y/Z axis | 4000mm/min |
| Number of tool stations | 8 Pieces |
| Tool size Ø | 63 mm |
| Tool weight max. | 2.5kg |
| Tool-changing time chip | 9S |
| Tool-change time tool/tool | 7S |
| Positioning accuracy X/Y/Z axis | 0.01 mm |
| Repeatability X/Y/Z axis | 0,01 mm |
| Motor rating main drive | 2.2KW |
| Motor rating for X/Y/Zaxis drive | 0.75KW |
| Total power consumption | 5,5 kVA |
| Overall dimensions (length x width x height) | 2250x1300x2500 mm |
| Weight | 1440kg |
Standard Equipment:
Siemens 808 D control, electronic hand-wheel, 8-station tool changer, coolant system,
automatic central lubrication, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
