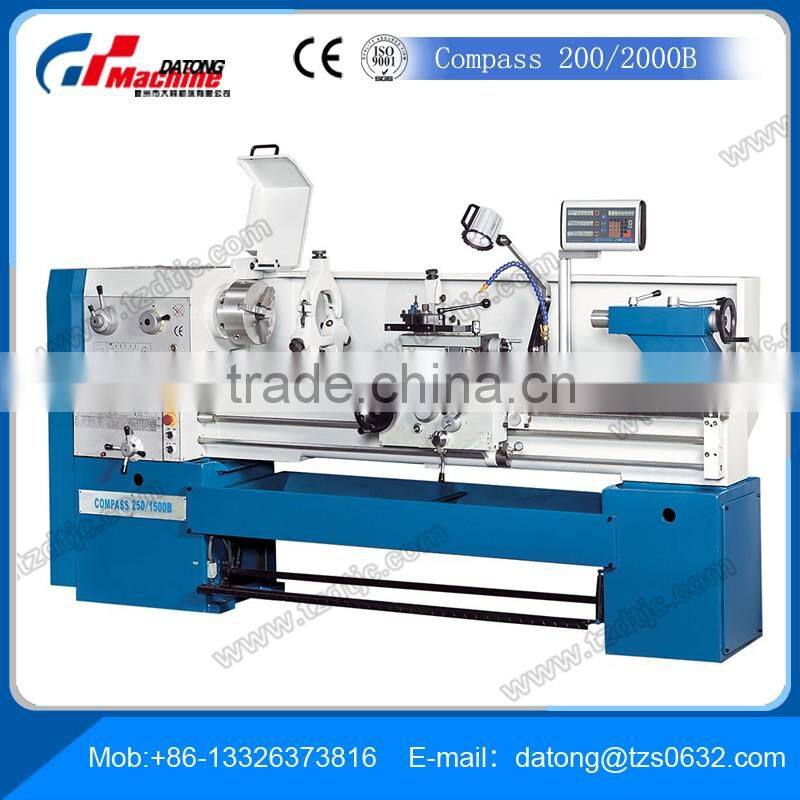

Help CenterCompass 200/2000 B Universal Lathe
Related Products
-

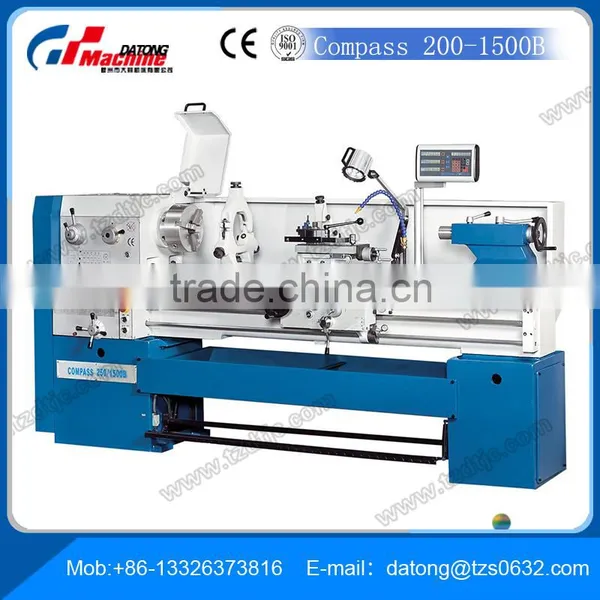

Compass 200/1500 B Universal LatheUS$ 1,000 - 10,000MOQ: 1 Set -
TubeTurn 225 Box-way Lathe( Large Spindle Bore and Dual Lathe Chuck for Long Tubes) Quality ChoiceUS$ 1,000 - 10,000MOQ: 1 Set
-
TubeTurn 200 Box-way Lathe (large Spindle Bore)US$ 1,000 - 10,000MOQ: 1 Set
-
TubeTurn 135 Box-way Lathe( Large Spindle Bore and Dual Lathe Chuck for Long Tubes)US$ 1,000 - 10,000MOQ: 1 Set
-
Servoturn 410/1000 Precision Lathe(Conventional Precision Lathe With Servo Drive)US$ 1,000 - 10,000MOQ: 1 Set
One lathe for single-part and batch production including 3-axis assembled
- stable, very rigid cast iron frame with heavy deadweight
- wide v-guides, induction-hardened and precision-ground
- removable gap bridge for machining of large diameter parts
- to ensure maximum accuracy and smooth operation at high speeds the main spindle is dynamically balanced and supported by adjustable precision bearings
- high machining performance with heavy-duty 5.5 kW main drive
- quick chuck changing and many options using the ASA D1-6 spindle mount acc. to DIN 55029
- accuracy tested according to DIN 8606, best surface roughness of 1.6 µm/N7 acc. to DIN 1302
- large spindle capacity allows for high machining variability
- quick change tool holder system allows for fast tool changing
- a steady and a follow rest stabilize long workpieces
- infinitely variable slip clutch mounted directly to the support allows for easy working with stops
- eliable lubrication of the guideways through central lubrication mounted inside the apron
- includes time-saving foot brakes
|
Working area
Center width
Turning diameter over bed
Turning diameter over support
Turning diameter over gap bridge
Travel Z1-axis
Gap bridge length
Bed width
Swing range of top slide
|
2.000 mm
400 mm
225 mm
530 mm
130 mm
320 mm
330 mm
360 °
|
|---|---|
|
Travels
Travel X-axis
|
330 mm
|
|
Headstock
Speed range
Spindle bore
Spindle mount
Spindle taper
|
(15) 22 - 1.800 rpm
65 mm
Camlock D1-6
MT 5
|
|
Feed
Feed X-axis
Feed Z-axis
|
0,036 - 2,019 mm/R
0,072 - 4,038 mm/R
|
|
Tailstock
Tailstock quill diameter
Tailstock taper
Tailstock quill stroke
Tailstock traverse adjustment
|
65 mm
MT 5
120 mm
± 5
|
|
Tapping
Tapping, metric
Tapping, module
Tapping, whitworth
Tapping, diametric
|
0,5 - 28 mm
0,25 - 1,75 mm
1 - 56 TPI
16-112 DP
|
|
Drive capacity
Motor rating main drive
Supply voltage
|
5,5 kW
400 V
|
|
Measures and weights
Overall dimensions (length x width x height)
Weight
|
3.460x1.130x1.800 mm
2.500 kg
|
Standard Equipments:
3-axis position indicator, 3-jaw chuck Ø 250 mm, 4-jaw face plate chuck Ø 320 mm, face plate Ø 400 mm, dog plate, change gears, quick change tool holder, coolant system, steady and fallow rest, chip tray, includes fixed splash guard (wall), chuck guard, foot brake pedal, work lamp, reducing sleeve, dead center, operating tools, operator manual
