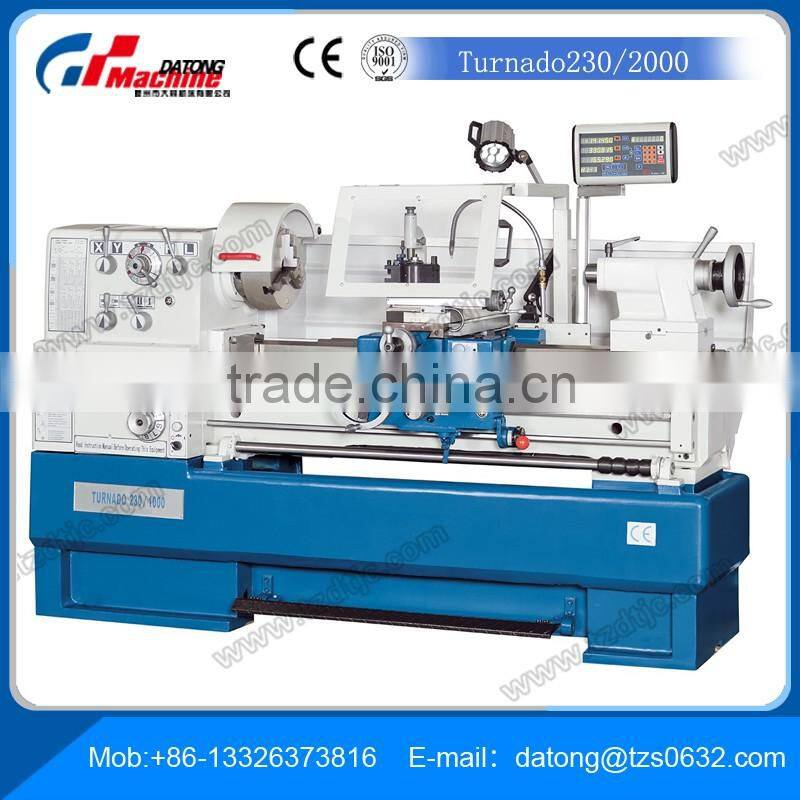

Help CenterTurnado 230/2000 Lead Screw and Feed Shaft Lathe
Related Products
-

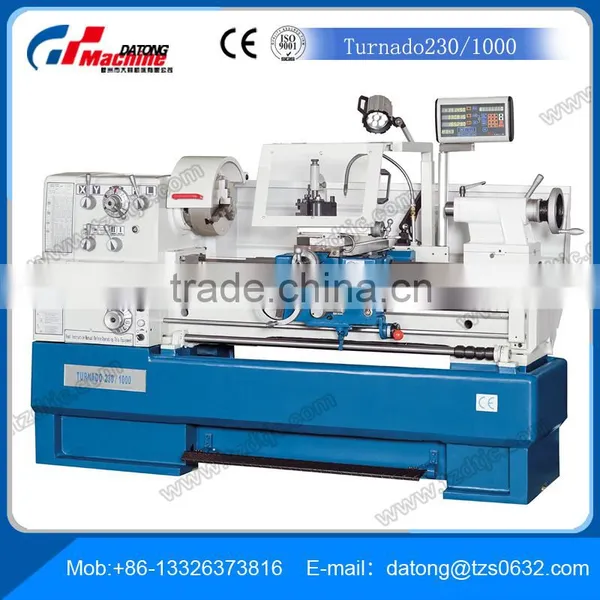

Turnado 230/1000 Lead Screw and Feed Shaft LatheUS$ 1,000 - 10,000MOQ: 1 Set -
Compass 250/2000 B Universal LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
Compass 250/1500 B Universal LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
Compass 200/2000 B Universal LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
Compass 200/1500 B Universal LatheUS$ 1,000 - 10,000MOQ: 1 Set
- cost-effective, lasting value
- practically arranged control panel with ergonomic layout of selection levers
- Camlock spindle mount D1-6
- wide bed, ground and hardened
- offset tailstock for taper turning
- large number of thread leads
- removable gap bridge for machining of large diameter
- stop spindle with adjustable travel stops

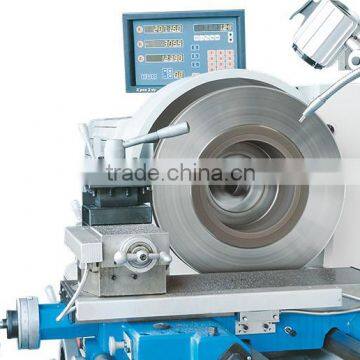

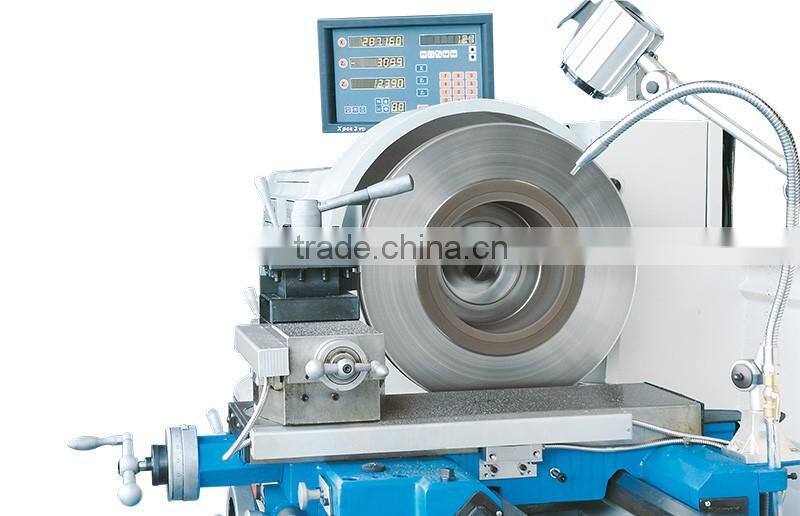

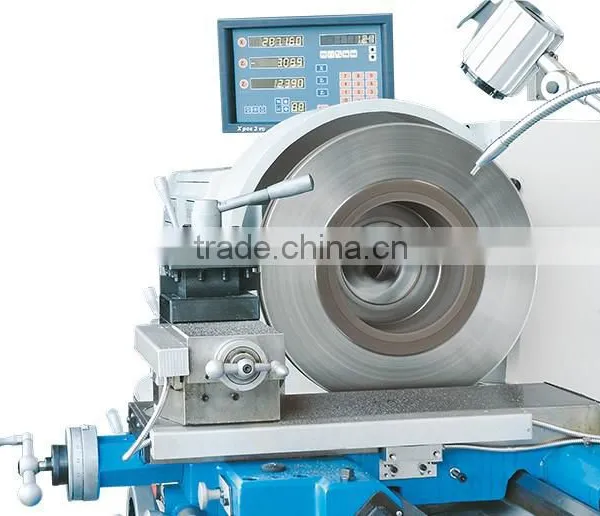

3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- hole circle pattern calculation
- calculator function
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- easy expansion and maintenance-free operation
- display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
|
Working area
Workpiece length (max.)
Turning diameter over bed
Turning diameter over support
Turning diameter over gap bridge
Travel Z1-axis
Gap bridge length
Bed width
Swing range of top slide
|
2.000 mm
460 mm
224 mm
690 mm
128 mm
155 mm
300 mm
± 52 °
|
|---|---|
|
Travels
Travel X-axis
|
285 mm
|
|
Headstock
Spindle speed
Spindle bore
Spindle mount
Spindle taper
|
(12) 25 - 2.000 rpm
58 mm
Camlock D1-6
MT 6
|
|
Feed
Feed X-axis
Feed Z-axis
|
0,014 - 0,784 mm/R
0,031 - 1,7 mm/R
|
|
Tailstock
Tailstock quill diameter
Tailstock taper
Tailstock quill stroke
Tailstock traverse adjustment
|
60 mm
MT 4
120 mm
± 13 mm
|
|
Tapping
Tapping, metric
Tapping, diametric
Tapping, module
Tapping, whitworth
|
(47) 0,1-14 mm
(50) 4-112 DP
(39) 0,1 - 7 mm
(60) 2-112 TPI
|
|
Drive capacity
Motor rating main drive
Supply voltage
|
5,5 kW
400 V
|
|
Measures and weights
Overall dimensions (length x width x height)
Weight
|
3.250x1.080x1.340 mm
2.100 kg
|
Standard Euipments:

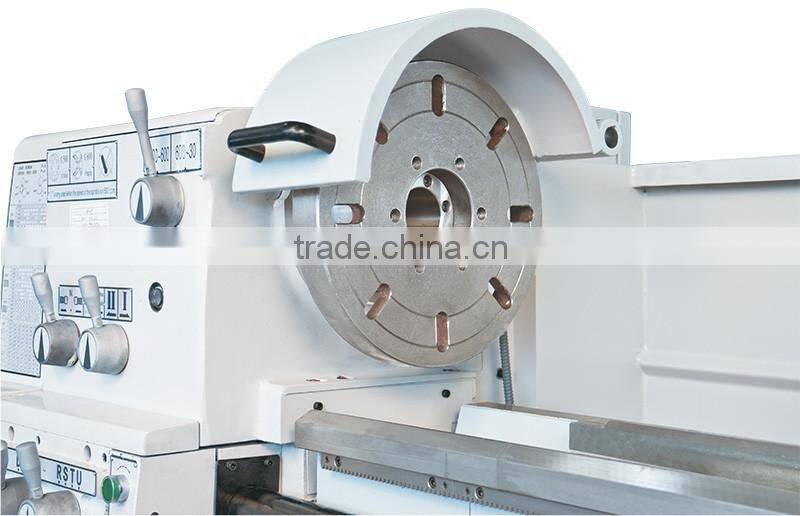

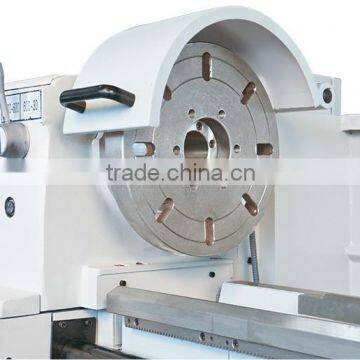

3-axis position indicator, 3-jaw chuck Ø 250 mm, 4-jaw face plate chuck Ø 300 mm, face plate Ø 350 mm, quick change tool holder head WB, quick change tool holder WBD 25120, coolant system, steady and fallow rest, stop spindle, includes fixed splash guard (wall), chuck guard, foot brake pedal, halogen lights, reducing sleeve, dead center, thread gauge, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
