Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > VDM 2600 Vertical Lathe

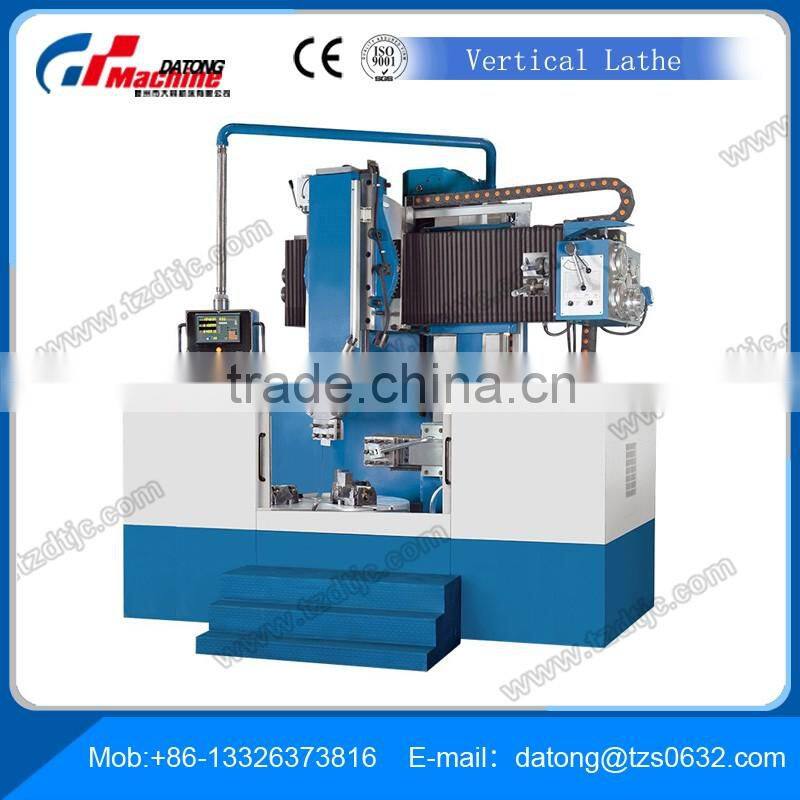

VDM 2600 Vertical Lathe

Name: VDM 2600 Vertical Lathe
Brand: DATONG
SKU: 123445645
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Tengzhou Datong Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

CNC or Not Normal

Automatic Grade Manual

Place of Origin Shandong, China

Brand Name DATONG

Model Number VDM 2600

Voltage Customer's Requirement

Power(W) 37KW

Dimension(L*W*H) 3300x4000x3500 mm

Weight 22000kg

Certification ISO9001 CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Optimum tooling and easy access for cranes and forklift trucks
Vertical support includes a 5-station tool holder, side support with independent feed for inside and outside turning
Heavy-duty column with wide, hardened guideways
hydraulic clamping of cross traverse
Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom
Spindle runs in a high-precision two-row roller bearing and is adjustable
reduction gear drive ensures high torque and a speed range of 5 - 160 rpm

3-axis position indicator

more accuracy
lower error rate
increased productivity
resulting in valuable time savings
for increased productivity
easy to read display
operator-specific features
convenient keyboard layout
resolution: 0.01/ 0.005 mm
default coordinates
axis position is maintained when display is turned off
hole circle pattern calculation
calculator function
storage for 10 tools
radius / diameter toggle
mm/inch conversion
easy expansion and maintenance-free operation
display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

Working area Rotating diameter (max.) Turning diameter of upper tool holder Turning diameter of side tool holder Machining height (max.) Travel X1 axis, upper support Travel Z1 axis , upper support Travel W-axis, traverse Travel X2 axis, side support Travel Z2 axis, side support Swivel range of upper tool holder Workpiece length (max.) Workpiece weight (max.)	2.600 mm 2.600 mm 2.300 mm 1.500 mm 1.300 mm 1.000 mm 1.100 mm 730 mm 1.180 mm ± 30 ° 1.500 mm 10.000 kg
Headstock Speed range Headstock torque Rotary table diameter	(16) 1,2 - 40 rpm 32.000 Nm 2.300 mm
Rapid feed Rapid feed of upper support Rapid feed of side support	1.800 mm/min 1.800 mm/min
Feed Feed speed X-axis Feed speed Z-axis Feed W-axis	(12) 0,8 - 86 mm/min (12) 0,8 - 86 mm/min 440 mm/min
Tool head Tool holder Tool weight max.	30x40 mm 50 kg
Drive capacity Motor rating main drive Motor rating X-axis Motor rating Z-axis	37 kW 1,3/1,8 kW / 1.7/2.4 Hp 1,3/1,8 kW / 1.7/2.4 Hp
Measures and weights Overall dimensions (length x width x height) Weight	3.300x4.000x3.500 mm 22.000 kg

Standard Equipments:

3-axis position indicator, totally enclosed work space, chip conveyor, tool holder, vertical, tool holder,horizontal, automatic central lubrication, work lamp, anchor bolts, operating tools, operator manual

Packaging & Shipping

Company Information

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.

Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
