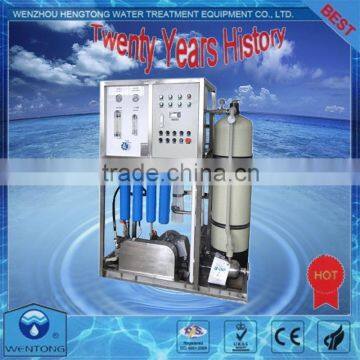

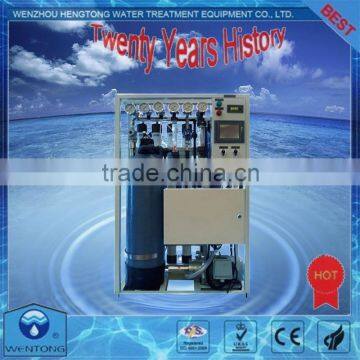

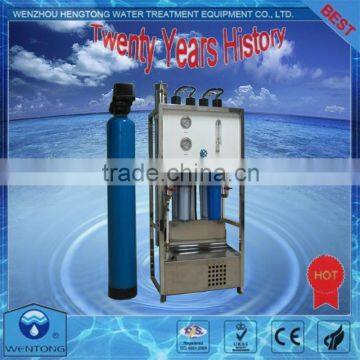

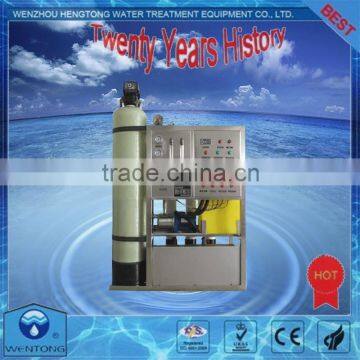

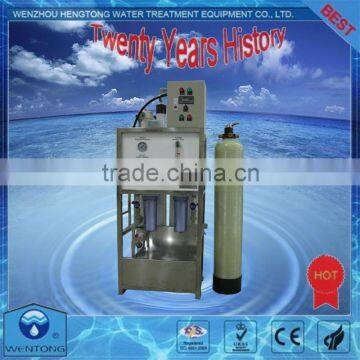

Help CenterSupply Low Price Sea Water Sedalination Equipment
Related Products
-
4000L/H Industrial RO SystemUS$ 10,000 - 15,000MOQ: 1 Unit -
Supply High Quality Low Cost SS304/SS316L/UPVC Water Treatment Machine/water Purification MachineUS$ 3,200 - 100,000MOQ: 1 Set
-
Supply High Quality Double Stage RO SystemUS$ 7,500 - 30,000MOQ: 1 Set
-
Water Purifier MachineUS$ 7,500 - 30,000MOQ: 1 Set
-
Reverse Osmosis SystemUS$ 6,000 - 10,000MOQ: 1 Set
Specification:
standard: GB5749-85 drinking water quality standard.
condition: environment temperature 0-45°c, water temperature 5-35°c, air humidity 20%-100%.
applicable sea area: apply to infinite navigating zone specification's requirement.
general condition: aims at sea water designing, directly make sea water into accord with national drinking water quality standard desalination water, long term operation and safe, reliable.
Technical parameter:
Raw water: TDS ≤35000ppm.
Product water: TDS≤ 600ppm.
Water temperature: 5-35°c.
Desalination rate: ≥99.2%.
Power supply: 380V/50Hz, 220V/440/415 60Hz alternative.
Operating pressure: 4.0-6.5Mpa.
Output capacity(L/h): customer decide.
Advantages:
Adopts computer system design, the complete system performs safely and reliable;
Treat seawater and brackish water meet to the WHO(World Health Organization) drinking water standard;
Easy operation, adopts PLC automatic control, one button realize equipment starting and stopping;
Compact size, light weight, easy installation and commissioning;
Adopts the imported famous brand membrane and pump or customer decide;
Modular design, especially suitable for the old ship, easy in position.

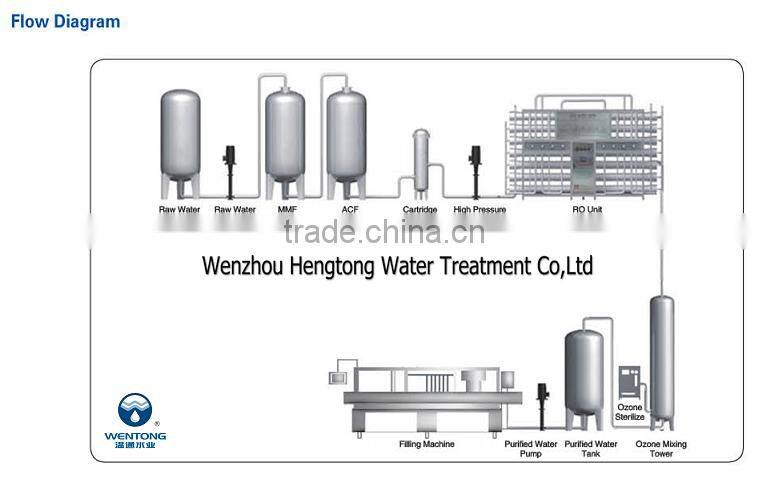

Main parts functions:
Raw water tank: its function is to store raw water, this can be omitted if you owned.
Raw water pump: to provide pressure to the raw water into the pretreatment filters.
Sand filter: to remove the suspended solids and colloids in the water.
Activated carbon filter: to remove the color, free chloride, organic matter, harmful matters, etc.
Precision filter/Cartridge filter: to remove the large particles, bacteria, virus, usual accuracy is 5um.
Dosing system: usually it is adopted when the raw water recovery is more than 35%.
HP pump: to provide high pressure so that the water can be pumped into the RO membrane with enough pressure.
RO system: one of the most important part in the plant, remove the salinity of the water with rejection rate high up to 99%.
Water processing tank: to hold product water for drinking.
The sea water sedalination equipment will packed in wooden cases or customized,
Delivery from Ningbo/Shanghai/Guangzhou by shipping.
12 months warranty and free maintainance cost
24 after-sales service online
Whole life free technical support
Trace for order until you get the goods
Engineer available to go abroad for installation and training
Wenzhou Hengtong Water Treatment Co., Ltd, established in 1997, 100 workers, over 800 square meter factory workshop and independent office space. Manufacturer of high quality water treatment equipment and spare parts for food, beverage, pharmacy, power plant, cosmetic, leather, electron and other industries.
As a manufacturer and enterprise supported by the government, we have obtained CE, ISO9001:2008 attestation and certificates from UK, Germany. The water quality standard meet with Chinese Pharmacopoeia of 2010 version, Pharmacopoeia requirements of USA and EU, GMP standard and FDA attestation.
1. Are you factory or trading company?
We are factory and also a direct manufacturer for about 20 years in this field
2. What capacity of water treatment equipment you can manufacture?
Generally from 250L/H to 200T/H
3. How long the consumables should be replaced?
Strictly speaking, it depends on source water quality. There is an approximate timetable for consumables replacement:
a. quartz sand, activated carbon: 2-3 years
b. water softening resin: 1 year
c. PP filter element: 2-3 months
d. RO membrane: 2-3 years
e. UV lamp: 8000 hours
All the consumable replace period will be depend on the feed water quality.
