SPX Semi Automatic Plastic Bottle Capping Machine

SPX Semi Automatic Plastic Bottle Capping Machine photo-1
US$ 800 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Driven Type:
Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Driven Type Pneumatic
Automatic Grade Semi-Automatic
Voltage 220v, 50/60hz
Power 60w
Packaging Type Bottles
Packaging Material Glass, Metal, Plastic
Place of Origin Guangdong, China
Brand Name sipuxin
Model Number SPX-CM2
Dimension(L*W*H) 68*58*78cm
Weight 50kg
After-sales Service Provided Engineers available to service machinery overseas

SPX_Semi automatic plastic bottle capping machineSPX semi automatic plastic bottle capping machine

Product Description

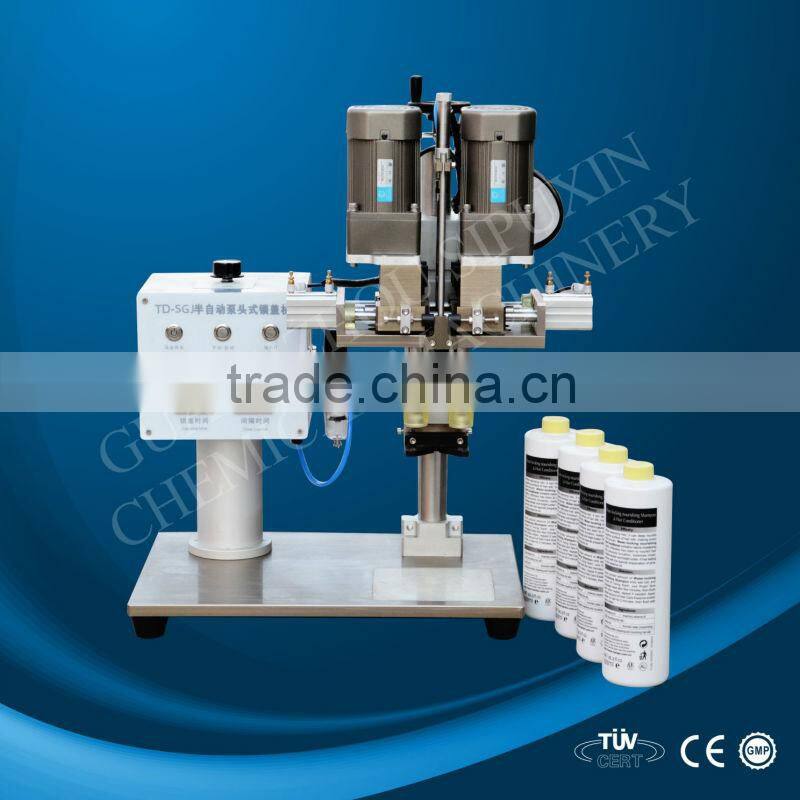

SPX semi automatic plastic bottle capping machine

Working mode:

  1. When the machine is set on manual condition, someone steps on the pedal for 1 time, the machine will work for 1 time.
  2. When the machine is set on automatic condition, it will be not be controlled by the pedal, but will automatically work in the set screwing time and interval.



  1. This capping machine adopts pneumatic energy , which has very stable performance .
  2. Equiped with positioning device , the machine is with high capping accuracy , can fullfill different sizes and different shapes of bottle lids capping .
  3. The rotate speed and the degree of tighten is adjustable according to ur bottle lids.

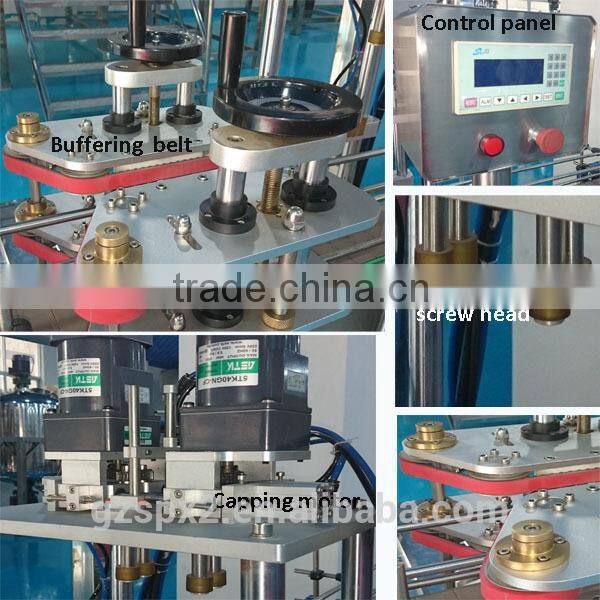

Detailed Images

SPX semi automatic plastic bottle capping machine

voltage

220v, 50/60hz

max. power

60w

machine size

57*48*68cm

packing size

68*58*78cm

G.W. / N. W.

55KG / 42KG

air pressure

4-6kg/cm2

capping speed

20-30bottle/min

capping torsion

4-8kgf/cm

capping range

bottle height: 50-300mm / cap dia.: 20-50mm































SPX semi automatic plastic bottle capping machineSPX semi automatic plastic bottle capping machine

SPX semi automatic plastic bottle capping machine

Packaging & Shipping

SPX semi automatic plastic bottle capping machine

Our monthly export of machine, packed in ply wooden cases, which is safe for shipping.

SPX semi automatic plastic bottle capping machine

Our Services

SPX semi automatic plastic bottle capping machine

The high quality and professional service team provide you with the high quality service, the most important thing is to make you comfortable.

SPX semi automatic plastic bottle capping machine

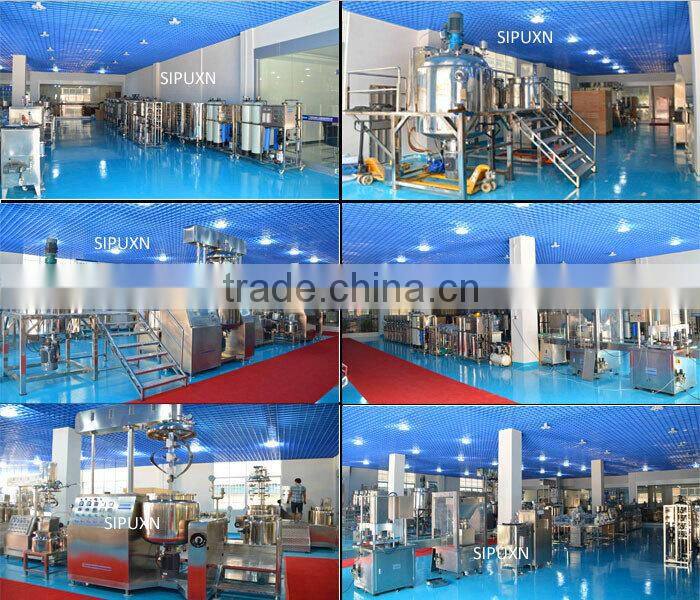

Company Information

SPX semi automatic plastic bottle capping machine

Brief introduction:

  •    Guangzhou Sipuxin Light Industry Machinery Co., Ltd. is one of the top technology-oriented machinery manufacturers in China, with more than 10 years of experience.
  •     We offer services including equipment designing, manufacturing, installation, maintenance, technical improvement support, technical consultancy, etc.
  •     Our machines are mainly used in cosmetic, pharmaceutical and chemical industries.

SPX semi automatic plastic bottle capping machine
