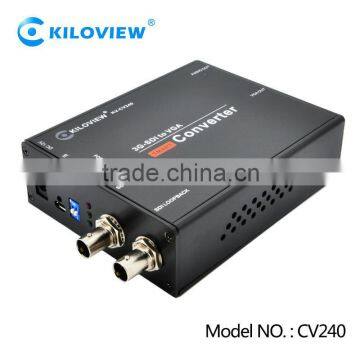

SDI broadcast grade converter support vga to uxga
KV-CV240 sd/hd/3g SDI converter is a professional video format converter which could convert HD digital component serial interface SDI signal to HDMI signal.
KV-CV220 sd/hd/3g SDI converter is compatible with SD SDI(270M),HD SDI(1.485G) and 3G SDI(2.97G) standard, built-in SDI clock-recovery circuit and circuit equalizer that can recover attenuation and distortion SDI signal after long-distance transmission.
KV-CV240 sd/hd/3g SDI converter supports many image enhancement and handling technology such as color conditioning,3D denoise,interlacing/progressive video conversion,video amplification/scale,frame rate convert to guarantee image conversion meet professional quality standards.
Our product KV-CV240 sd/hd/3g SDI converter supports VGA to UXGA various standard VESA resolution output, also 720p/1080p VGA format. KV- CV240 sd/hd/3g SDI converter could deal with resolution ratio,frame rate and image scaling of different ports. SDI embed audio can transmit to analog circuit output interface through separating conversion.|
KV-CV240 sd/hd/3g SDI converter supports VGA DDC function and could self-adaptively output the best mode of VGA. It supports remote control operation and could connect USB with PC for higher setup or firmware upgrading. KV-CV240 sd/hd/3g SDI converter is equipped with free PC interface management controlling software.
Our product KV-CV240 sd/hd/3g SDI converter is widely applied in multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia advertisement and video security monitoring and so on.
l Support any SDI input format:
SD: 525i @ 59.94Hz, 625i @ 50Hz
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
720p @ 50Hz / 59.94Hz / 60Hz
1080i @ 50Hz / 59. 94Hz / 60Hz
1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
3G: 1080p @ 50Hz / 59.94Hz / 60Hz
l Support VGA output format 640x480, 800x600, 1024x768, 1280x1024, 1280x720, 1280x768, 1360x768, 1600x1200, 1920x1080, etc.;
l Support SMPTE 425M,SMPTE424M;SMPTE292M;
l With 1 CH SDI signal loopback output;
l VGA audio/analog audio output simultaneously
l High quality 10bit YUV4:2:2 conversion, keeping color not distortion;
l Professional image enhancement, denoise, color conditioning, de-interlace and scaling;
l Support VGA DDC, self-adaptive the best mode of VGA;
l Support all formats UP/DOWN interconversion;
l Support Interlace/Progressive interconversion & frame rate convert;
l Blue screen warning when the signal loss;
l Support users to choose specified output format by remote-controller and set image output ratio (16:9, 4:3, image cutting).
Model No. | KV-CV240 |
Input interface | 1×BNC SDI |
Input signal type | SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
Support input formats | 525i 59.94,625i 50 720p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 |
SDI signal amplitude | 0.8Vp-p |
SDI impedance | 75 Ohm |
SDI coupling type | AC |
SDI signal jitter(typical) | SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI |
Maximum output coax length | Belden 1694A: SD-SDI 400m,HD-SDI 200m,3G-SDI 140m Notice:transmission distance depends on source quality and coax specification. This parameter is the value that Phabrix SDI tester making signal and transmit through Belden 1694A coax. It may be different in practical application. |
SDI loopback interface | 1×BNC SDI |
VGA output interface | 1×VGA |
Frequency bandwidth | 165MHz/comply standard(VGA 1.3) |
Dimensions(cm) | 12*10*3.5 |
Power supply | DC 12V, 1A |
Operation temperature | -10°C ~ 60°C |
Storage temperature | -30°C ~ 60°C |
Relative humidity | 20~90% RH (Non-condensation) |
