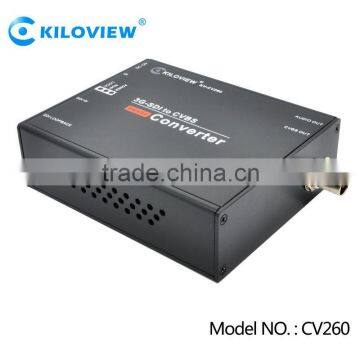

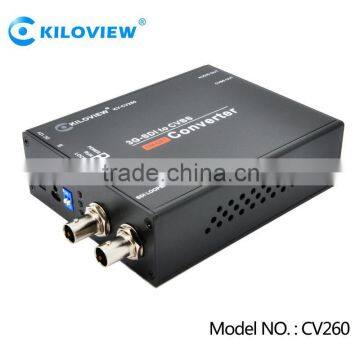

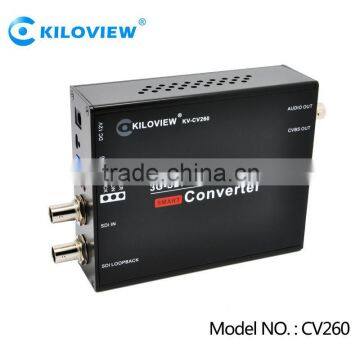

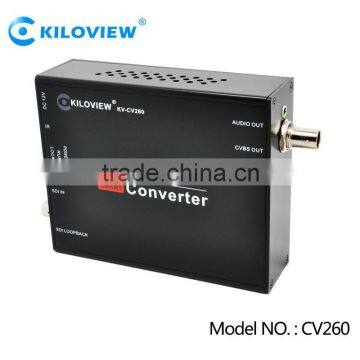

SD/HD/3G SDI to CVBS/AV smart converter
KV-CV260 SD/HD/3G SDI to CVBS/AV smart converter is a professional converter which could convert HD digital component serial interface SDI signal to CVBS(AV) signal output. KV-CV260 SD/HD/3G SDI to CVBS/AV smart converter is compatible with SD SDI(270M),HD SDI(1.485G) and 3G SDI(2.97G) standard, built-in SDI clock-recovery circuit and circuit equalizer that can recover attenuation and distortion SDI signal after long-distance transmission.
KV-CV260 SD/HD/3G SDI to CVBS/AV smart converter supports many image enhancement and handling technology such as color conditioning,3D denoise,interlacing/progressive video conversion,video amplification/scale,frame rate convert to guarantee image conversion meet professional quality standards.

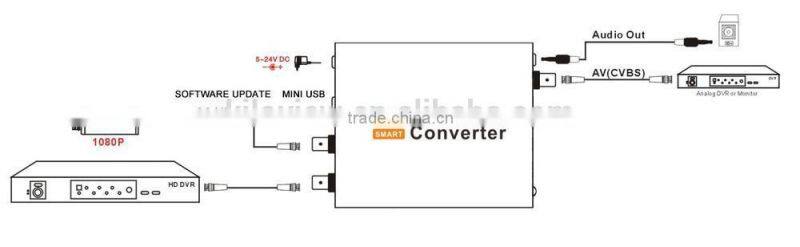

KV-CV260 SD/HD/3G SDI to CVBS/AV smart converter can convert SDI signal to CVBS(AV), and our products can deal with resolution ratio,frame rate and image scaling of different interface. Audio signal that embedded in SDI could output to analog circuit output interface through separating and converting.
KV-CV260 SD/HD/3G SDI to CVBS/AV smart converter supports remote control operation and could connect USB with PC for higher setup or firmware upgrading. KV-CV260 SD/HD/3G SDI to CVBS/AV smart converter is equipped with free PC port management controlling software.
Our product KV-CV260 SD/HD/3G SDI to CVBS/AV smart converter is widely applied in multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia advertisement and video security monitoring etc.
SD/HD/3G SDI to CVBS/AV smart converter features:
- Support any SDI input format:
- SD: 525i @ 59.94Hz, 625i @ 50Hz
- HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
- 720p @ 50Hz / 59.94Hz / 60Hz
- 1080i @ 50Hz / 59. 94Hz / 60Hz
- 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
- 3G: 1080p @ 50Hz / 59.94Hz / 60Hz
- Support SMPTE 425M,
- SMPTE424M,SMPTE292M;
- With 1 CH SDI signal loop output;
- Share SDI embed audio and output to analog audio;
- High quality 10bit YUV4:2:2 conversion, keeping color not distortion;
- Professional image enhancement, denoise, color conditioning, de-interlace and scaling;
- Support OSD and menu operation windows;
- Support Interlace/Progressive interconversion & frame rate convert;
- AV(CVBS) signal output, choice for PAL/NTSC;
- Blue screen warning when the signal loss;
- Support users to choose specified output format by remote-controller and available setting for image output proportion (16:9/4:3 and image cutting).
Model No. |
KV-CV260 |
Input interface |
1×BNC SDI |
Input signal type |
SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
Support input format |
525i 59.94,625i 50 720p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 |
SDI signal amplitude |
0.8Vp-p |
SDI impedance |
75Ohm |
SDI coupling type |
AC |
SDI signal jitter(typical) |
SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI |
Maximum output coax length |
Belden 1694A: SD-SDI 400m,HD-SDI 200m,3G-SDI 140m Notice:the test result will be different due to the above transmission distance is depend on different coax |
SDI loopback interface |
1×BNC SDI |
CVBS output format |
PAL/NTSC |
CVBS output interface |
1×BNC CVBS |
Proportion mode of output image |
Automatic stretching/maintain original proportion/cutting |

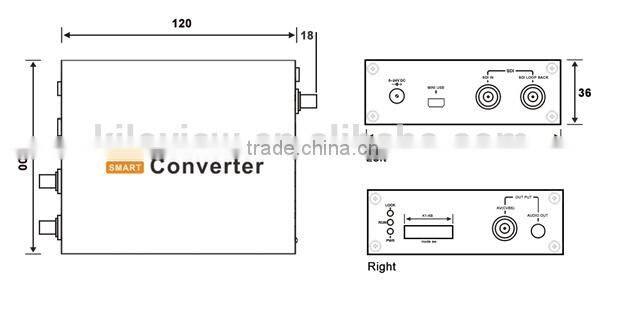

Dimensions(cm) |
12*10*3.5 |
Power supply |
DC 12V, 1A |
Storage temperature |
-30°C ~ 60°C |
Relative humidity |
20~90% RH (Non-condensation) |
Operation temperature |
-10°C ~ 60°C |
Changsha Kiloview Electronics Co.,Ltd. is a professional high-tech enterprise which engaged in HD audio and video transmission and control product researching and provide digital video technology and solutions.
Relying on first-class R&D team, we have professional EPGA video processing technology, SDI signal processing technology and video compression and transmission technology.With the help of professional signal test instruments, we provide strictquality control for each.
Our ideal and commitment is to provide customers best using experience and satisfactory service. We own professional after-sale service team that could help solve various problems.
If any inquires, please feel free to contact us. We will try to solve your problems within the shortest time.
