3G Sdi to Hdmi Converter With 1CH SDI Loopback

Name: 3G Sdi to Hdmi Converter With 1CH SDI Loopback
Brand: kiloview
SKU: 123400965
Availability: InStock

3G Sdi to Hdmi Converter With 1CH SDI Loopback thumbnail-1

3G Sdi to Hdmi Converter With 1CH SDI Loopback photo-1

US$ 1 - 120 MOQ: 1 Unit

Key Specifications

Get Latest Price

Brand Name:

kiloview

Model Number:

KV-CV220

Place of Origin:

China

Contact Supplier Request Quote Chat Now

Changsha Kiloview Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name kiloview

Model Number KV-CV220

Place of Origin China

Product Overviews

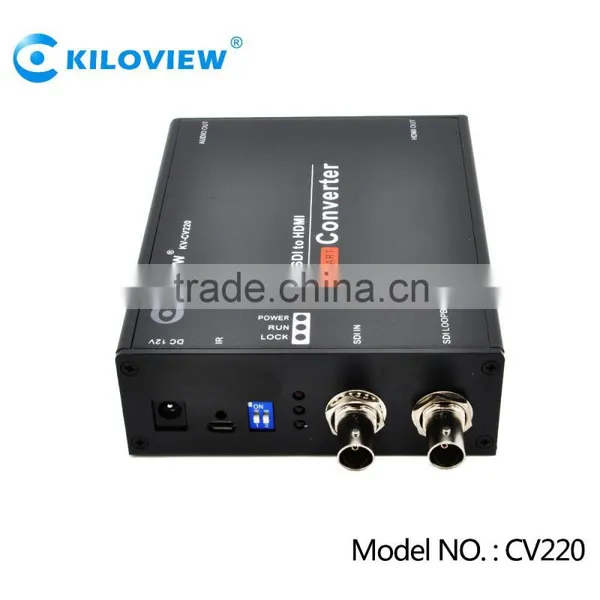

KV-CV220 3G sdi to hdmi converter with 1CH SDI loopback is a professional video format converter which could convert HD digital component serial interface SDI signal to HDMI signal.

KV-CV220 3G sdi to hdmi converter with 1CH SDI loopback is compatible with SD SDI(270M),HD SDI(1.485G) and 3G SDI(2.97G) standard, built-in SDI clock-recovery circuit and circuit equalizer that can recover attenuation and distortion SDI signal after long-distance transmission.

KV-CV220 supports many image enhancement and handling technology such as color conditioning,3D denoise,interlacing/progressive video conversion,video amplification/scale,frame rate convert to guarantee image conversion meet professional quality standards.

KV-CV220 could convert SDI signal to HDMI, and our products could process resolution ratio,frame rate and image scaling of different ports. Audio signal that embedded in SDI could embed to HDMI through separating and converting and simultaneously transmit to analog circuit output interface.

KV-CV220 supports HDMI DDC function and could self-adaptively output the best mode of HDMI/VGA. It supports remote control operation and could connect USB with PC for higher setup or firmware upgrading. KV-CV220 is equipped with free PC port management controlling software.

Our product 3G sdi to hdmi converter with 1CH SDI loopback is widely applied in multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia
advertisement and video security monitoring and so on.

Converter Features

*Support any SDI input format:

SD: 525i @ 59.94Hz, 625i @ 50Hz

HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz

720p @ 50Hz / 59.94Hz / 60Hz

1080i @ 50Hz / 59. 94Hz / 60Hz

1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz

3G: 1080p @ 50Hz / 59.94Hz / 60Hz

*Support SMPTE 425M,

SMPTE424M,SMPTE292M;

*With 1 CH SDI signal loopback;

*HDMI audio/analog audio output simultaneously

*High quality 10bit YUV4:2:2 conversion, keeping color not distortion;

*Professional image enhancement, denoise, color conditioning, de-interlace and scaling;

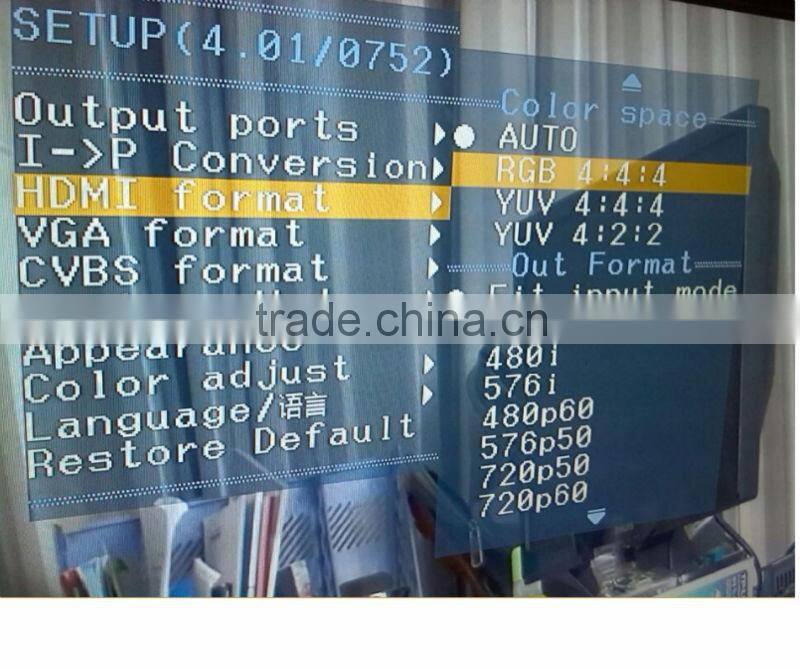

*Support OSD and menu operation windows;

*Support HDMI DDC, self-adapt the best mode of HDMI;

*Support all above formats UP/DOWN interconversion;

*Support Interlace/Progressive interconversion & frame rate convert;

*Blue screen warning when the signal loss;

*Support users to choose specified output format by remote-controller and set image output ratio.

Application Notes

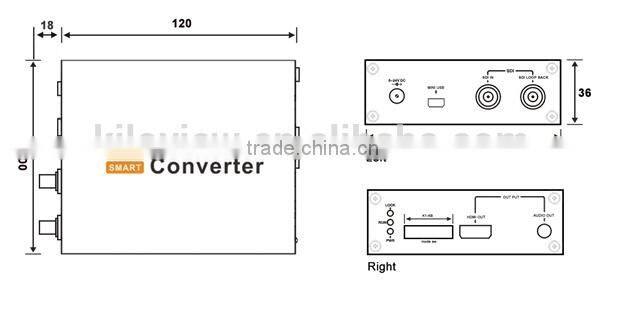

Panel Dimension

Specifications:

Model No.	KV-CV220
Input interface	1×BNC SDI
Input signal type	SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
Support input format	525i 59.94,625i 50 720p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60
SDI signal amplitude	0.8Vp-p
SDI impedance	75 Ohm
SDI coupling type	AC
SDI signal jitter(typical)	SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI
Maximum output coax length	Belden 1694A: SD-SDI 400m,HD-SDI 200m,3G-SDI 140m Notice:transmission distance depends on source quality and coax specification. This parameter is the value that Phabrix SDI tester making signal and transmit through Belden 1694A coax. It may be different in practical application.
SDI loopback interface	1×BNC SDI
HDMI output interface	1×HDMI (165MHz/HDMI 1.3 standard)
Dimensions(mm)	15610036
Weight	N.W.: 340g G.W.: 695g
Operation temperature	-10°C ~ 60°C
Storage temperature	-30°C ~ 60°C
Relative humidity	20~90% RH (Non-condensation)
Power supply	DC 12V, 1A
