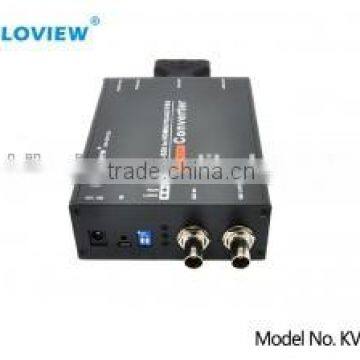

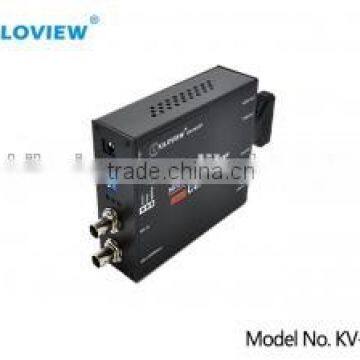

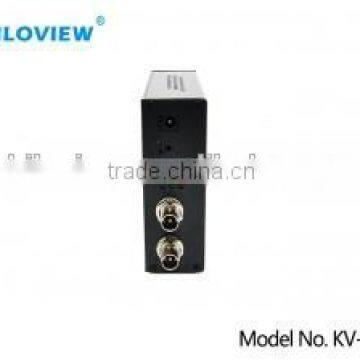

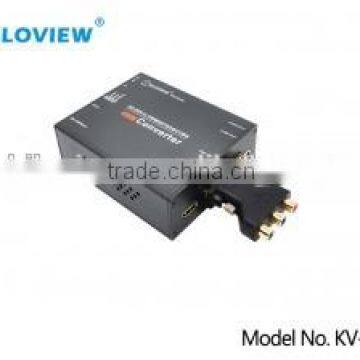

SDI to YPbPr converter KV-CV230 excellence compatibility, best image quality and supporting wide signal formats
KV-CV230 SDI to YPbPr converter is a type which can convert HD SDI to support the HD analog video signal from YPbPr output interface of component+ audio signal, use the latest high-performance decoding technology, all-digital conversion lossless, provide 3G-SDI, HD, high-quality high-definition HD-SDI and SD-SDI digital signal digital standard-definition signals with YpbPr component signal conversion, make the HD signal to maximum limits reduction. KV-CV230 be compatible SDI digital signal (data) of every bit-rate, support 480i/ 480p/ 576p/ 720p/ 1080i/ 1080p etc. format video transmission, and applied in HD electronic advertising, multimedia advertising, HD camera monitoring, HD video conferencing system, HD matrix, big screen connecting system, HI-FI family theater, HD recorded broadcast, medical system.
Support 1CH SDI input, 1CH output loopback;
- Support YPbPr output +1 CH Stereo audio output;
- support OSD and menu operation pagea;
- Adapt to best HDMI mode automatically;
- Support all format covert;
- Blue screen warning when signal loss;
- With long-distance monitoring by remote;
- Support to choose any compulsive output mode;
- Input YpPbPr support separate Stereo audio& can be easy connect with PA system.
| Model No. | KV-CV230 |
| Input interface | 1×BNC SDI |
| Input signal format | SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
| Support output format |
525i 59.94,625i 50;720p;1080i 50/59.94/60; 720p 23.98/24/25/29.97/30/50/59.94/60; 1080p 23.98/24/25/29.97/30/50/59.94/60 |
| signal width | 0.8Vp-p |
| SDI impedance | 75 ohm |
| SDI coupling | AC Coupling |
| SDI signal jitter(typical) | SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI |
| Maximum output coax length | Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft |
| SDI loopback output interface | 1×BNC SDI |
| YPbPr output format | 480I, 480P, 576I, 576P, 720P, 1080I,1080P |
| YPbPr output interface | 1x YPbPr |
| Dimension | 154*119*36 mm |
| Power requirement | 5~24VDC |
| Power dissipation |
3~6 Watts |
| Operation temperature |
-10°C ~ 60°C / 14°F ~ 140°F |
| Storage temperature |
-30°C ~ 70°C / -22°F ~158°F |
| Relative humidity |
20~90% RH (Non-condensation) |
| Dimension |
158 x 120x 36 mm |
| Weight |
300g |
Providing customers best using experience and satisfactory service is always our ideal and commitment. We own professional after-sale service team that could help solve various problems.
If any questions, please feel free to contact us. We will try to solve your problems within the shortest time.

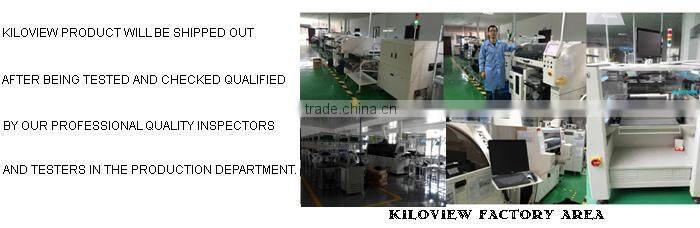

KILOVIEW Electronics Co., Ltd. is a professional high-tech enterprise which engaged in HD audio and video transmission, product R&D control, and providing technology and solutions for digital video. Each product will be shipped out after being tested and checked qualified by our professional quality inspectors and testers in the production department. Our products have been operated continuously for 24 hours, 6 months in clients’ specific project, very stable and without error, getting customers’ affirmation and recognition.
We also provide other digital video products. SDI ENCODER SDI DECODER
Meanwhile we would like to offer you few samples for your available to do real evaluation test & Welcome to visit changsha city to check our factory works.
