DAG 2000(24FXS) is a versatile IP-based voice and fax gateway. It is highly integrated router, NAT, phone gateway functionality and has market-leading voice quality, rich functionality, and lightweight, compact design. DAG 2000(24FXS) is fully compatible with SIP industry standard, can be achieved with many other SIP compliant devices and software interoperability. In addition, it supports including G.723.1, PCMA/U and G.729AB voice codec. Suitable for carrier and enterprise VoIP call center agents.
DAG 2000(24FXS)can be with the mainstream SIP proxy servers(such as Asterisk, SIP registration server, etc. ) to implement docking. Run in a variety of environments and support SIP server registration and call control. DAG 2000(24FXS)access gateway can realize flow media conversion between the IP and PSTN.
Large port access gateway
- Standard SIP protocols
- Standard G.723.1,G.729A/B,PCM A/U code
- Call forwarding, Call hold, Caller ID, DND standard voice service
- Anonymous call, Direct IP Call and Busy tone
- Fax over IP and Three –way conferences
- VLAN and SNMP
Multiple FXS ports optional
DAG 2000(24FXS) provides 16interfaces for users, and offers two configuration ports: WAN and Serial.
Full-features to meet customer’s requirements:
Supporting many applications such as call forwarding, caller ID, DND, busy tone, conference with IPPBX and Fax over IP.
Be easy to configure and maintain:
Customer can access GUI of DAG series or command line by http or telnet. With rich tools, customers can easily manage the system, and is specifically designed to be easy to use and affordable VoIP solution for both carrier and enterprise.
Security and reliability
Administrator authentication mechanism is used to ensure that information and data are secured.
Protocols supported
DAG 2000(24FXS) supports SIP 1.0/2.0.
Main features
Support Call forwarding, Call waiting, Call display etc standard voice service and Busy tone, Fax over IP, Three-way conference . Support PPPoE client , ensure voice service quality , remote management and maintenance. It is capable to work well with mainstream softswitch providers.
Interfaces |
|
Telephone interface |
24* FXS Ports,RJ11-RJ45 |
Network interface |
4*10M/100MBPS auto-sensing RJ45 Ports |
LED indicators |
Power, Run, Network and Line LEDs |
VoiceFax |
|
Voice over packet Capabilities |
G.168 with 32, 64 or 128 ms tail length |
Voice Compression |
G.711,G723.1,G.729 A/B |
Fax over IP |
T.38 or G.711 bypass |
DHCP Client/Server |
NAT Router or Switched Mode |
Telephony Features |
Caller ID display or block, Call waiting, Blind or attended call transfer, Call forward, Do not disturb |
Qos |
Diff Serve, TOS, 802.1P/Q VLAN tagging |
Network Protocols |
TCP/UDP,RTP/RTCP,HTTP,ARP/RARP,ICMP,DNS,DHCP,NTP,TFTP ,TELNET ,PPPOE, STUN |
DTMF Method |
RFC 2833,SIP Info |
Signaling |
SIP(RFC 3261)over UDP |
Provisioning |
TFTP,HTTP |
Management |
WEB browser, Telnet, Voice prompt |
Physical |
|
Universal Power Supply |
Output:12VDC, input:100-240VAC/50Hz |
Environmental |
Operational:32-104°For 0-40°C |
Dimensions(mm) |
440×250×44 |
Weight |
3.50kg |
Additional Features |
|
Caller ID |
Bellcore Type 1 & 2, ETSI,BT,NTT, and, DTMF-based CID |
Polarity Reversal |
Yes |
Homologation |
|
Safety |
UL |
Compliance |
FCC,CE |

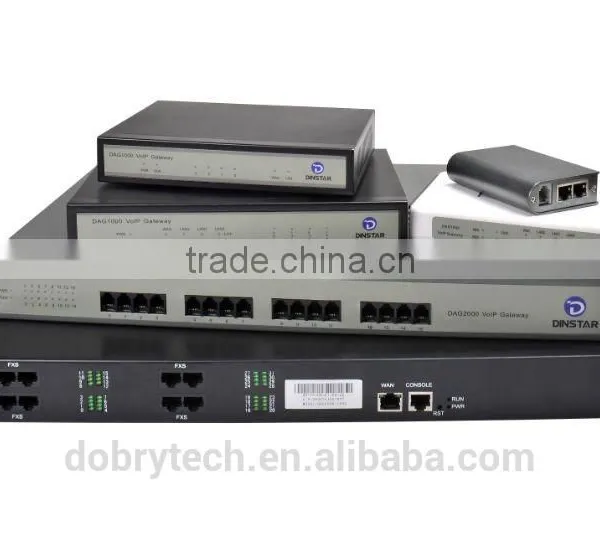

Pictures:
1 unit/box. 10 units/carton.
Shipping ways: ESM, DHL,AIR.
Delivery time: 1-3 working days after pay.
1 year warranty. Fast delivery, good after service, tech support
With R & D team, OEM is accepted in bulk order.
