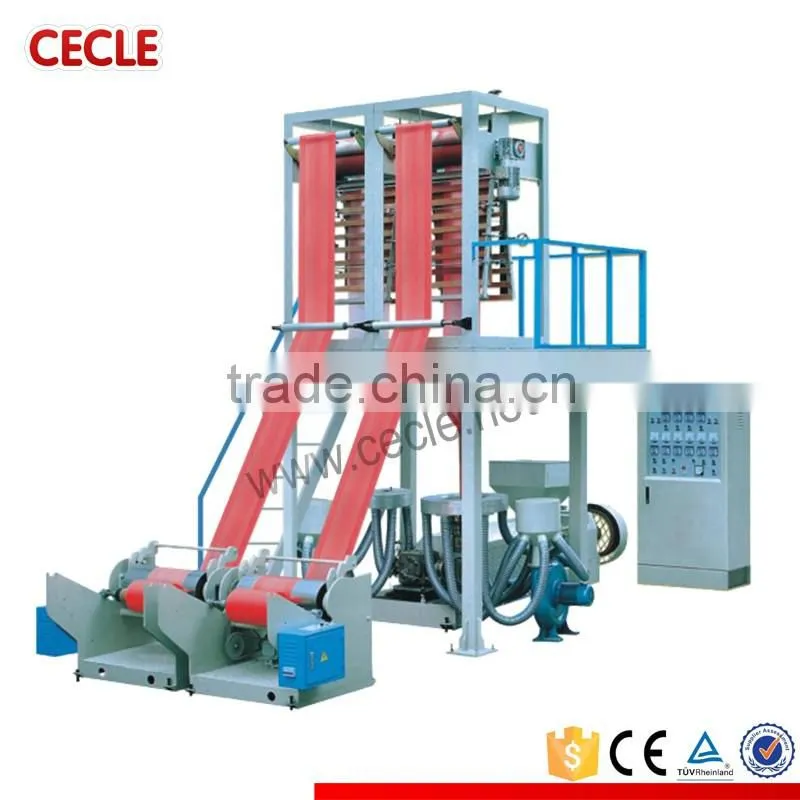

SJ-60(70) Single-Screw Double Die Film Blowing Machine Set
Features
- The machine adopts single screw to extrude the material, two die heads to blow the film;
- The screw stem and cylinder are made of 38CRMOALA high quality alloy steel after fine finshing and nitride treatment, which has high hardness, strong resistance to corrosion, durable service;
- The die head is plated with hard chrome, of screw mandrel type structure with even and smooth discharging, the blown plastic film has fine finshing; the blower is of labyrinth structure with even air output;
- The coiling unit adopts pressure friction rewinding or center rewinding, which is driven by torque motor, with even and smooths rewinding and easy roll changing.
| Model | SJ-60 |
| Screw Diameter | Φ60mm |
| Reduced diameter of film | 200-500mm |
| Single-face thickness of film | 0.005-0.05mm |
| Max output | 40-50kg/hr |
| L/D Length | 28:1 |
| Power of main motor | 18.5kw |
| Rational speed of screw stem | 10-120mm |
| Heating power | 23kw |
| Outline diameter | 6200*3000*3200mm |
| Weight | 2.3T |
Samples
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
