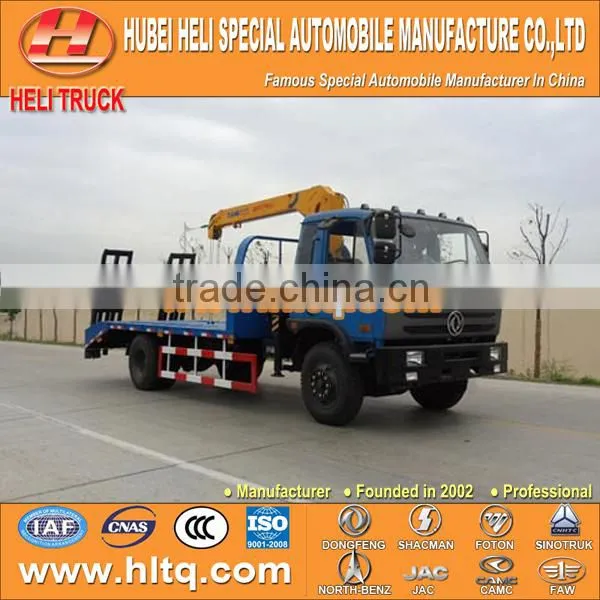

DONGFENG 4x2 platform truck with 3.2 tons crane low price hot sale for sale

Vehicle parameters

Vehicle Model

HLQ5160TPBE

Vehicle Brand

HELI

Overall dimensions

8800X2500X3700, 3305,3225,3380mm

Curb weight

7210kg

Platform dimensions

5400×2500mm

Loading capacity

15000kg

Manufacturer

Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters

Chassis model

EQ5160GKJ

Chassis brand

DONGFENG

Overall dimensions

8290x2370x2760mm

Wheel base

4700mm

Front/rear wheel track

1880/1800mm

Front/rear suspension

1430/2160mm

Approach/departure angle

20/13°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

white,other color is optional

Engine

Model

B170 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

170hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

560N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

9.00-20 nylon tire

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

3.6T

Rear axle

9.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox DF6S750, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Steel wire tire,air conditioner,CUMMINS engine 190hp,new driver’s cab

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Platform structure parameters

Platform dimensions

5400×2500mm

Loading capacity

15000kg

Thickness of pattern plate

5mm

Square steel tube

100x100mm

Square tube spacing

350mm

Channel steel frame

12#

XCMG crane

Crane model

SQS68

Maximum lifting height

6.8m

Maximum working radius

5.5m

Maximum loading

3.2 tons

Crane type

Straight arm

Telescopic arms number

2

Rack cylinder

Color and Logo

Optional

Standard configuration

Chassis,sub frame,pattern plate, two double spring climbing ladders,square steel tube, square

tube spacing 350mm, 12# channel steel frame.

Selective configuration

Hydraulic lifting cylinder for unloading, crane,5/6/8mm pattern plate

MOQ,payment terms,delivery terms,price

MOQ

One unit

Payment terms

T/T 30% down payment, 70% balance after inspection before delivery

L/C is optional

Inspection

Buyer's agent or third party inspection agency,the cost is paid by the buyer

Delivery term

20 days from down payment

Documentation

Maintenance manual

User manual

Packing list

Commercial invoice

Certificate of origin is optional

Spare parts list for purchase is optional

Standard tools

With standard tools for chassis and platform structure

Packing

The main vehicle nude and covered with wax, attached parts and tools put into standard export box

Other requirements

Please fill in here

FOB

USD

CNF/CIF

USD

Shipment

Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days.

Please confirm the price again with our company before placing the order,thanks.
