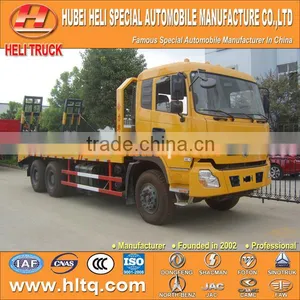

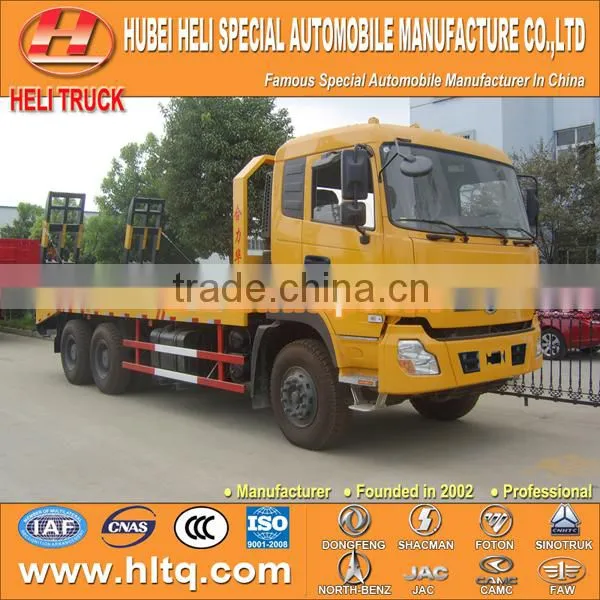

DONGFENG 6x4 Harvester Transport Truck Cheap Price Hot Sale for Sale

Name: DONGFENG 6x4 Harvester Transport Truck Cheap Price Hot Sale for Sale
Brand: DONGFENG
SKU: 123362053

US$ 28,000 - 33,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Transmission Type:

Manual

Emission Standard:

Euro 3

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Dimensions (L x W x H) (mm) 9650X2500X3000

Gross Vehicle Weight 30000

Place of Origin Hubei, China

Brand Name DONGFENG

Model Number HLQ5253TPBE harvester transport truck

Product Description

Vehicle parameters
Vehicle Model		HLQ5253TPBE	Vehicle Brand	HELI
Overall dimensions		9650X2500X3000mm	Curb weight	9295kg
Platform dimensions		6000×2500mm	Loading capacity	20000kg
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model			EQ5253GFJ2	Chassis brand	DONGFENG
Overall dimensions			9565x2470x2850mm	Wheel base	4350+1300mm
Front/rear wheel track			1940/1860/1860mm	Front/rear suspension	1245/2670mm
Approach/departure angle			28/15°	Maximum speed	85km/h
Chassis Manufacturer			Dongfeng Motor Corporation
Cab	Configuration		A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
	Color		Red,other color is optional
Engine	Model		B210 33
	Emission		Euro 3
	Type		6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
	Rated power		210hp,rated power speed 2500rpm
	Displacement		5900ml
	Max.torque		700N.m
	Bore x stroke		102x120mm
	Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Tire	Size		10.00-20 nylon tire
	Number		10+1 nos
Frame	280×80×(7+5)mm
Fuel tank	200L,steel
Front axle	5.0T
Rear axle	10.0T
Drive form	6X4
Rated voltage	24V,DC
Transmissions	Gearbox 8JS118, 8 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Air Conditioner,steel wire tire,wheel base 4750+1300mm,engine YC6A240-33(240hp),new driver’s cab
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Platform structure parameters
Platform dimensions		6000×2500mm	Loading capacity	20000kg
Thickness of pattern plate		6mm	Square steel tube	120x120mm
Square tube spacing		350mm	Channel steel frame	12#
			Color and Logo	Optional

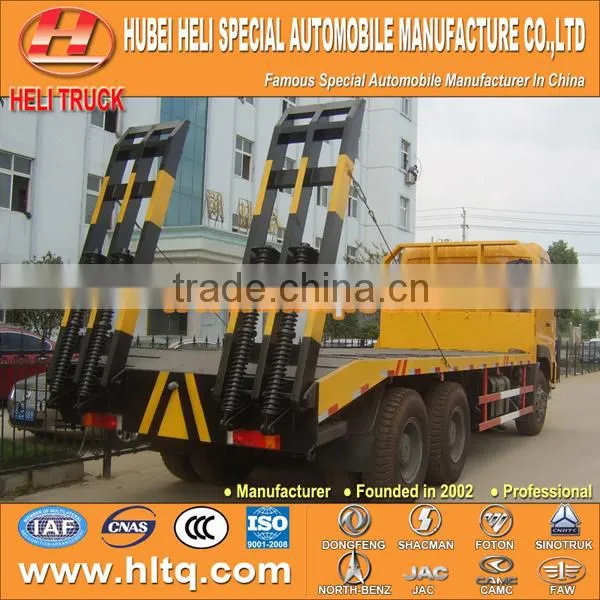

Standard configuration	Chassis,sub frame,pattern plate, two double spring climbing ladders,square steel tube, square tube spacing 350mm, 12# channel steel frame.
Selective configuration	Hydraulic lifting cylinder for unloading, crane,5/6/8mm pattern plate

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and platform structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
