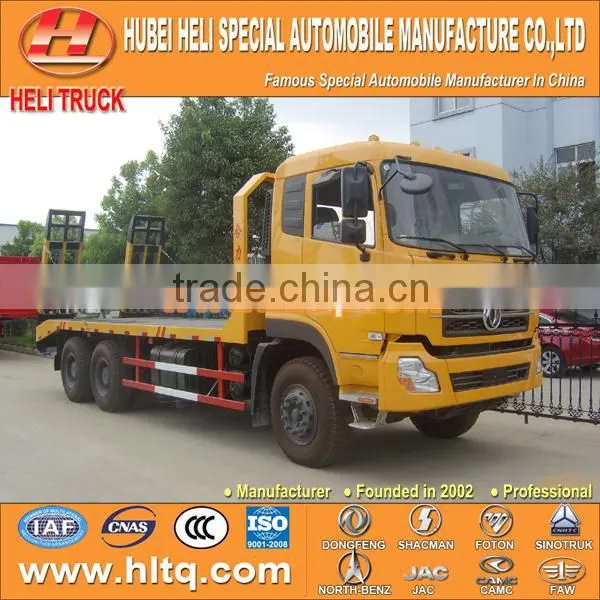

New DONGFENG DFL 6x4 excavator transport truck good quality hot sale Quality Choice

Vehicle parameters

Vehicle Model

HLQ5250TPBD

Vehicle Brand

HELI

Overall dimensions

10960X2500X3200mm

Curb weight

11035kg

Platform dimensions

6600×2500mm

Loading capacity

22000kg

Manufacturer

Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters

Chassis model

DFL1250A9

Chassis brand

DONGFENG

Overall dimensions

10460x2480x3030mm

Wheel base

5350+1300mm

Front/rear wheel track

1986/1860/1860mm

Front/rear suspension

1460/2350mm

Approach/departure angle

20/16°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

D310 standard flat roof a row and a half deluxe cab(with sleeping berth),cab,air

conditioner,electric glass,hydraulic mechanical flip, channel type instrument

panel,central lock,allowable 3 passengers

Color

white,other color is optional

Engine

Model

C260 33

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

260hp,rated power speed 2200rpm

Displacement

8300ml

Max.torque

1090N·m

Bore x stroke

114x135mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

11.00R20,steel wire tire

Number

10+1 nos

Brake

Double loop air brake system, exhaust brake

Clutch

Push type diaphragm spring clutch,Φ430

Frame

(300×80×[8+4])mm

Fuel tank

350L aluminum fuel tank

Front axle

DANA 7.0T

Rear axle

DANA 10.0T

Drive form

6X4

Rated voltage

24V,DC

Transmissions

Gearbox 9JS119T-B, 9 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Platform structure parameters

Platform dimensions

6600×2500mm

Loading capacity

22000kg

Thickness of pattern plate

6mm

Square steel tube

120x120mm

Square tube spacing

350mm

Channel steel frame

12#

Color and Logo

Optional

Standard configuration

Chassis,sub frame,pattern plate, two double spring climbing ladders,square steel tube, square

tube spacing 350mm, 12# channel steel frame.

Selective configuration

Hydraulic lifting cylinder for unloading, crane,5/6/8mm pattern plate

MOQ,payment terms,delivery terms,price

MOQ

One unit

Payment terms

T/T 30% down payment, 70% balance after inspection before delivery

L/C is optional

Inspection

Buyer's agent or third party inspection agency,the cost is paid by the buyer

Delivery term

20 days from down payment

Documentation

Maintenance manual

User manual

Packing list

Commercial invoice

Certificate of origin is optional

Spare parts list for purchase is optional

Standard tools

With standard tools for chassis and platform structure

Packing

The main vehicle nude and covered with wax, attached parts and tools put into standard export box

Other requirements

Please fill in here

FOB

USD

CNF/CIF

USD

Shipment

Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days.

Please confirm the price again with our company before placing the order,thanks.
