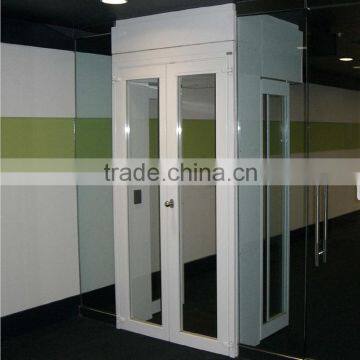

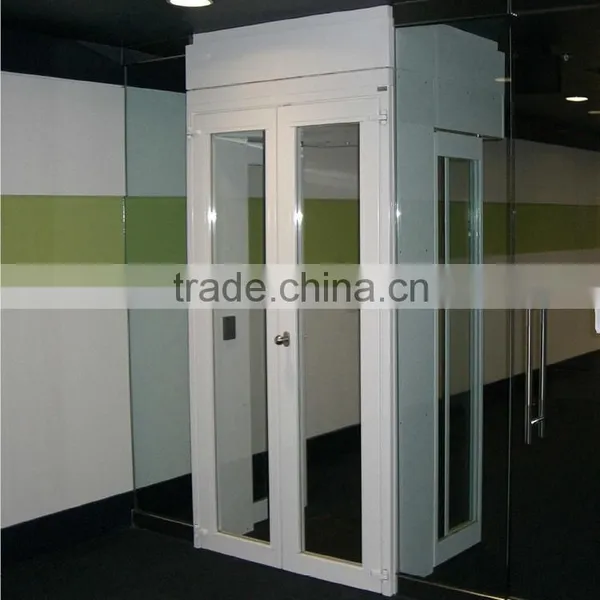

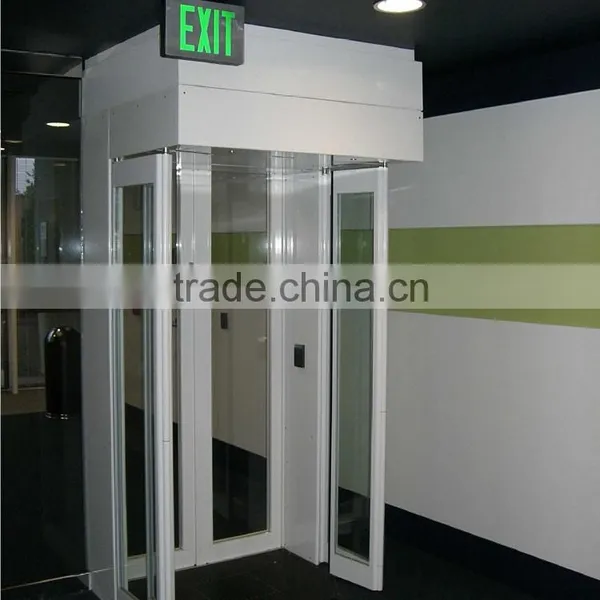

SB2 Security Booth

Proud Security Booths are a safe choice in environments where maximum security is the first priority.

Gives authorized access only and ensures only one person passes through the door per authorized passage.

Users include

l  Banks

l  Insurance companies

l  Service organizations

l  Public and private sector office premises

l  Police and military installations

l  Industrial plants

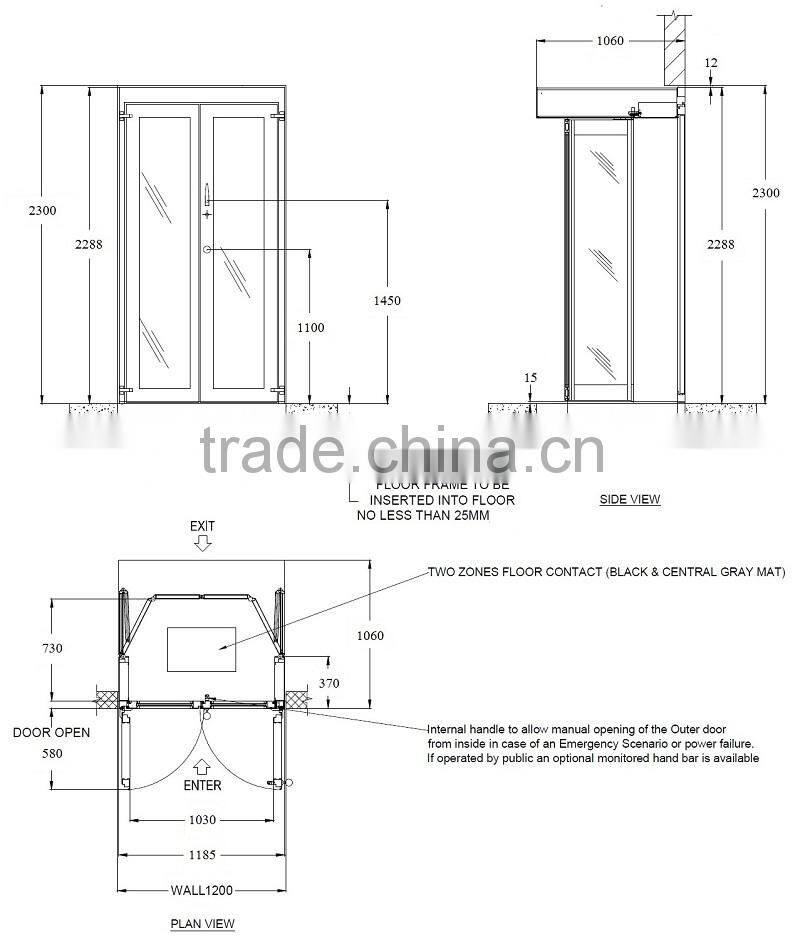

Unit dimensions:
Available in four standard sizes, dimensions in mm

Drive:                Motorized

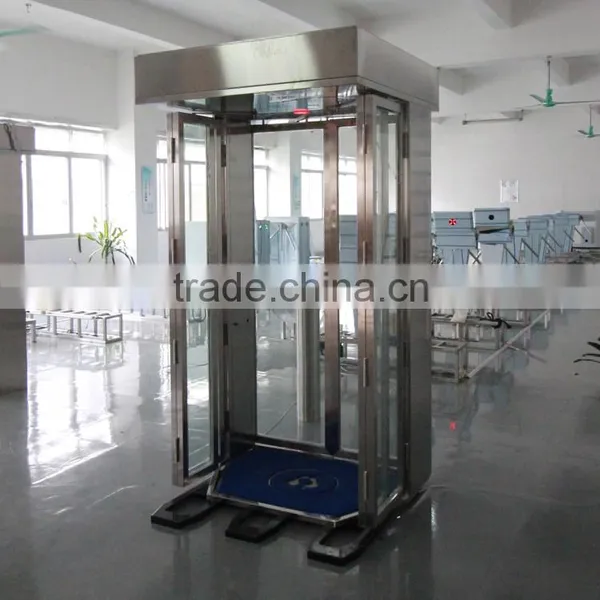

Materials:          Frame:                Stainless steel 304#

Floor:                  Rubber mat, black with central gray square

Glazing:              9mm laminated clear security glass

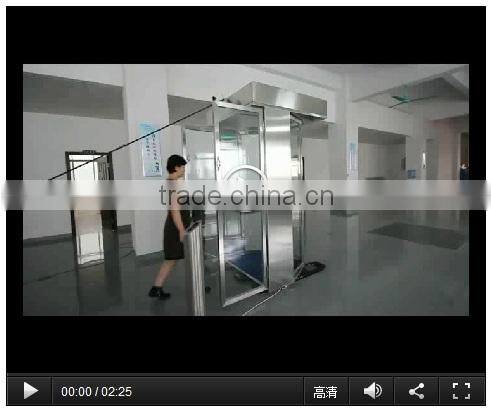

Function:           Electronically controllable single person passage in both directions.

Security Booth is as standard pre set from the factory to have the Outer door normally closed and the Inner door normally open. The Outer door opens upon acceptance of an authorized signal, i.e. access control or push button etc. Both sets of doors may be opened to allow free passage in both directions in alarm scenario or if the Transport Mode has been requested and activated.

Drive                   The doors are moved by mechanical interlocked arms that are moved via a torque

Mechanism:       shaft connected to a gearbox and DC drive unit. The gearbox allows the regulation of
the final position of the outer doors.

A safety IR sensor prevents the inner door from closing on an obstruction. Force control

system and safety photocells prevent the outer door from closing on an obstruction.

Method of         The Outer and the Inner doors are never opened at the same time except in case of alarm

Operation:         scenario or Transport mode.

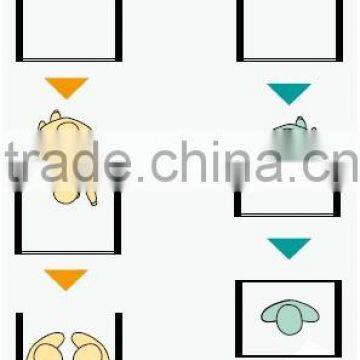

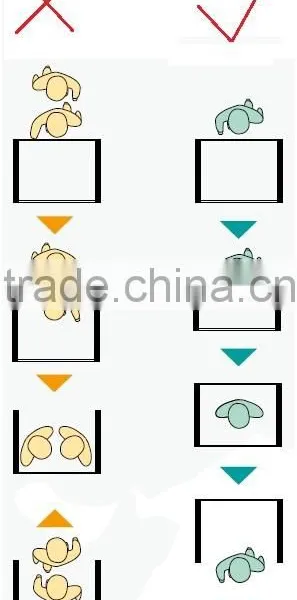

To Enter, the outer door is released and opens while the Inner door closes, via an optional access control system, i.e. card reader, code button, key operated switch, or biometric recognition (supplied by others). The floor mat and photocells ensure the presence of one person only and then the Inner door opens to allow entry while the Outer door closes behind. If two people attempts to pass at the same time, the unit gives an alarm and remains locked (2 point locking system for the outer door).

To Exit, passenger steps on the central gray mat floor for one-presence detection while the perimeter black mat floor ensure there is none other presence. Pressing the internal push button the Inner door closes while the Outer door opens to allow exit. Once cleared that there is none presence, the Outer door automatically re-closes while the Inner door reopens for next transit.

Interface:          Voltage free contact provided by card reader or pushbutton input, fire alarm and Transport mode inputs. Card reader inhibit and reset output signals are available as standard (In Passing OK and Out Passing OK). Forced access and technical alarm outputs. Open outer door by hand bar alarm output (if requested).

The unit has an adjustable time out facility if required, i.e. Go signal will be cancelled if the passage through the Compact Save is not completed within a preset time. The Standard default is 5 seconds adjustable via parameter change.

Power Supply: 110-240VAC, 50Hz

Power Rating: Stand by             60 W

In operation        210W (350W for Type 3 and 4).

Logic Voltage: 24 vDC

Weight:              500kg

CE certification

ISO9001 authentication

Extra Accessories and Optional Extras

Alternative Materials, Finishes and Custom Design

• Refer to Proud for other material, colour and design requirements.
• Alternative functionality (i.e. Outer door normally open and Inner door normally closed)
• Alternative outer door are available.
• Electronically monitored exit push bar.

Card reader Mounting

• Card reader Pedestals.

Fire Alarm

• All doors open automatically to creat an escape route.
• Power Failure: In the event of a power failure the inner doors open and the outer door close. Upon request both Inner and outer doors may open to create escape routes, in case of power failure.
• Emergency: can be connected with the fire alarm to drive both doors open.

Floor mounting type

• Floor Frame inserted, into the ground to meet the finished floor level
• Floor Frame as dual floor, inserted into a floating floor.
• Floor Frame on-ground, placed on the finished floor (the clear height is reduced by 15mm)
