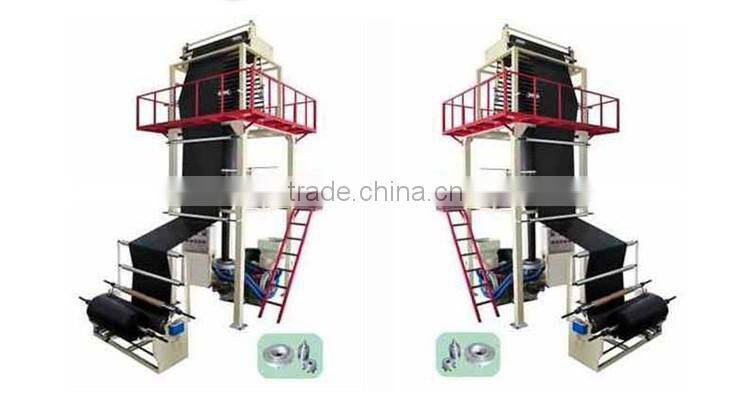

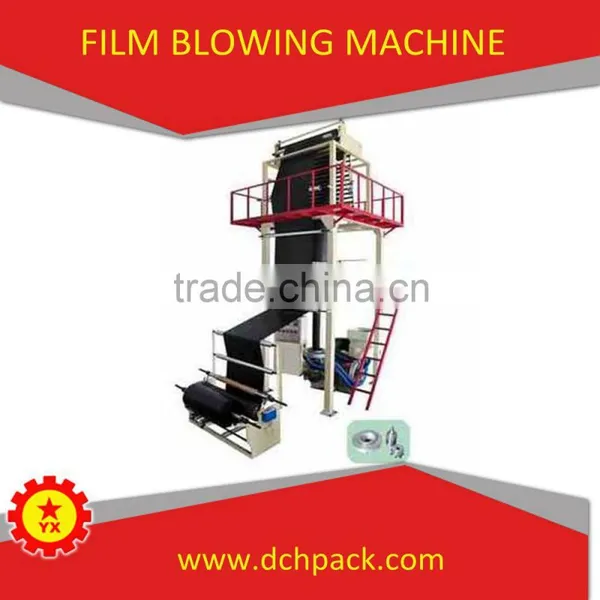

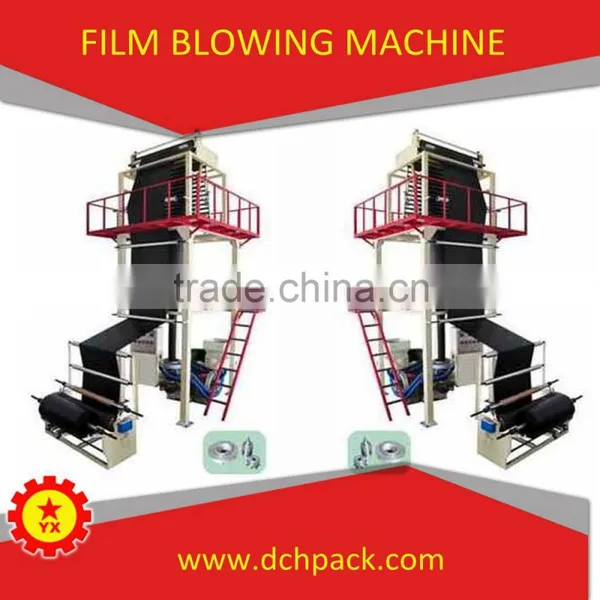

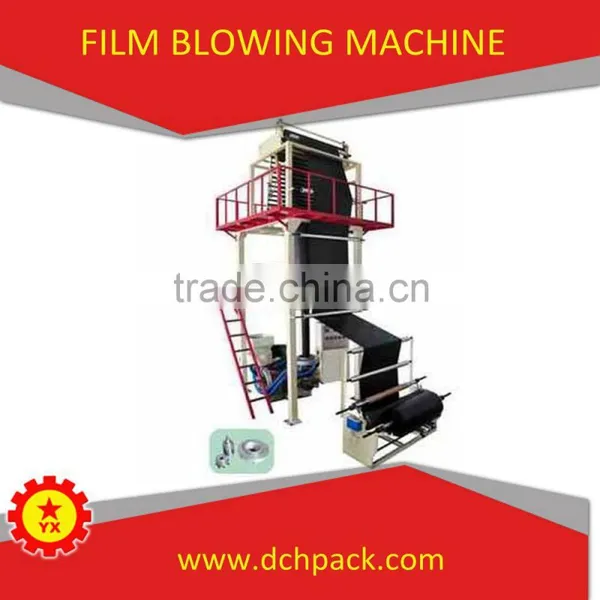

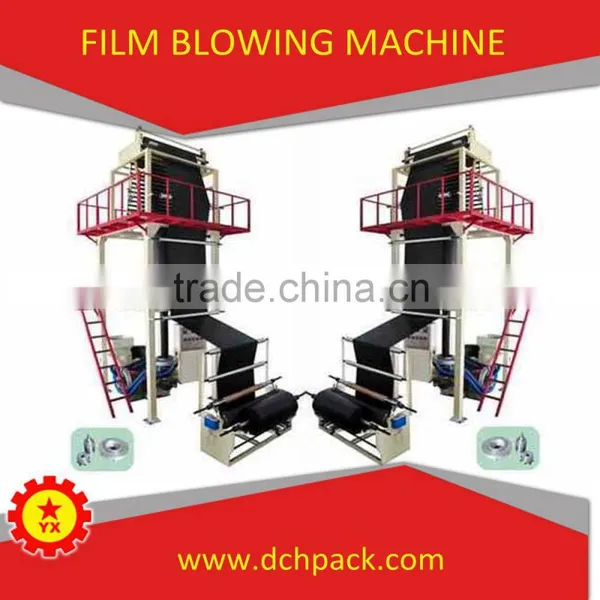

BRN-900 900mm High Speed Blown Film Machine

FOB Price

USD $10,000 - $11,000 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Film	Plastic Processed:	PE
Blow Moulding Type:	Extrusion Blow Moulding	Automatic:	No	Place of Origin:	Jiangsu, China
Brand Name:	BRN	Model Number:	BRN-900	Voltage:	220V/380V/50HZ
Power(W):	22KW	Dimension(LWH):	400028004800	Weight:	3800kg
Certification:	CE ISO	Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Model	BRN-900
Screw diameter	55mm
L/D	28:1
Barrel & Screw	38CrMoAl,hardening and tempering,deal with Nitride
Temp control	Digital meter
Die head	45 steel forge piece
Blower	1 set
Cooling	Cooling fan
Gear box	High strength hard teeth retarder with high lubrication
Extruder motor	22KW
Film width	300~1000mm
Single-face Thickness	LDPE:0.015-0.20mm,HDPE:0.008-0.05mm
Output	20-60kg/h
Speed control	Inverter
Rewind control	Torque motor
Total Power	22kw
Weight	3800kg
Dimension	400028004800

Machinery Structure

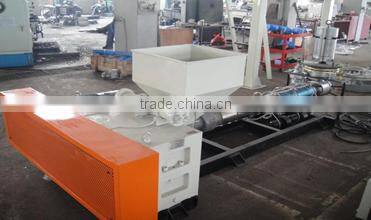

Gear box

high strength hard tooth,with cooling water

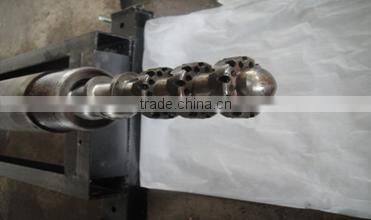

Screw and barrel

38CrMoAl,surface with NT,special mixed area .

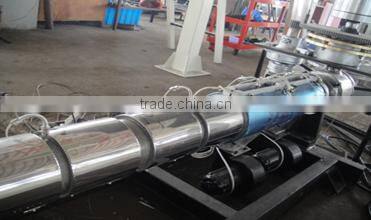

Heater

stainless steel heater ,long time and temp keeping longer

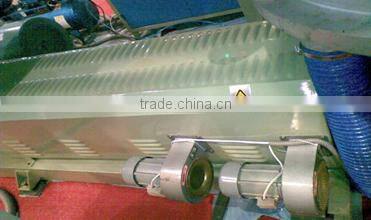

Two unit cooling fan

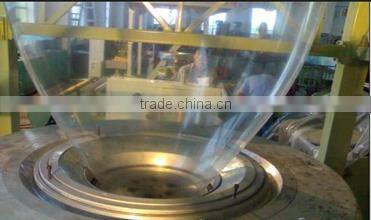

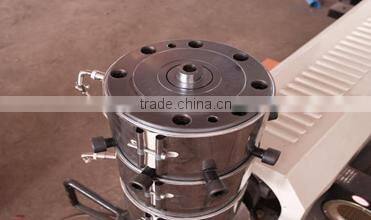

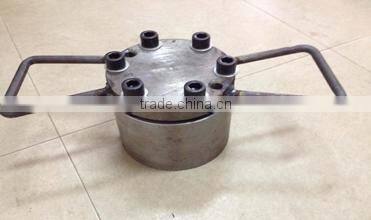

normal die

45 steel forging , cavity wall , cavity hard chromium plating , surface polishing and treatment,possible choose normal die

air ring

Special design air ring

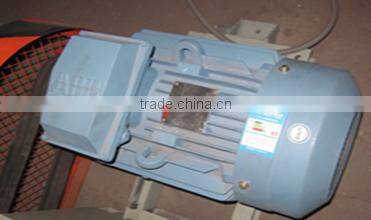

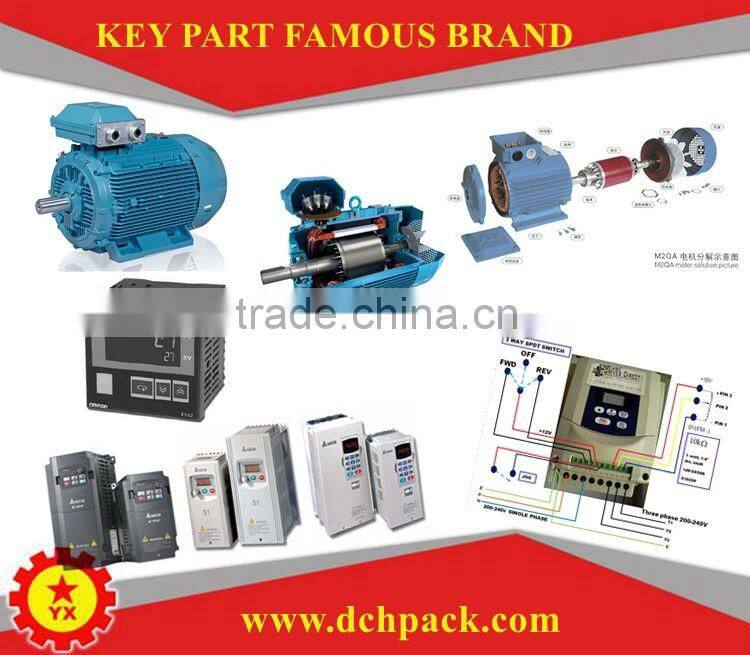

inverter motor

inverter motor :famous brand

inverter

inverter :Taiwan

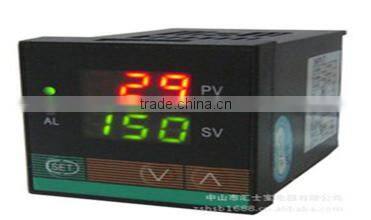

Temp meter

digital intelligent temperature ,meter

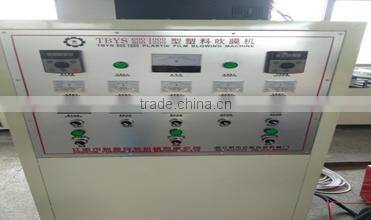

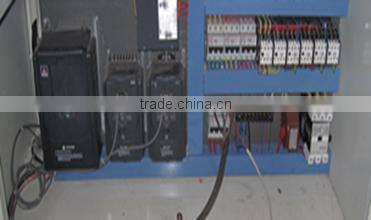

Control box

Easy operate

Title goes here.

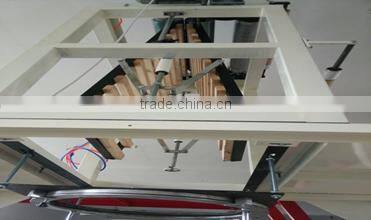

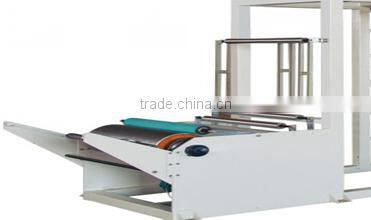

Take up unit ,fixed

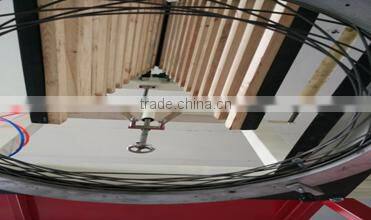

Bubble steady unit

Filter changer

one rewind

Option Parts
