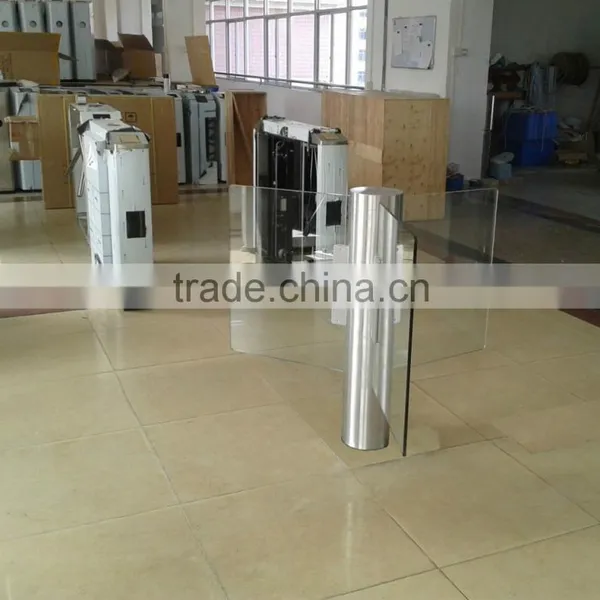

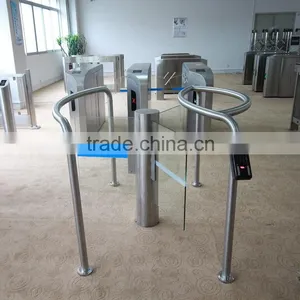

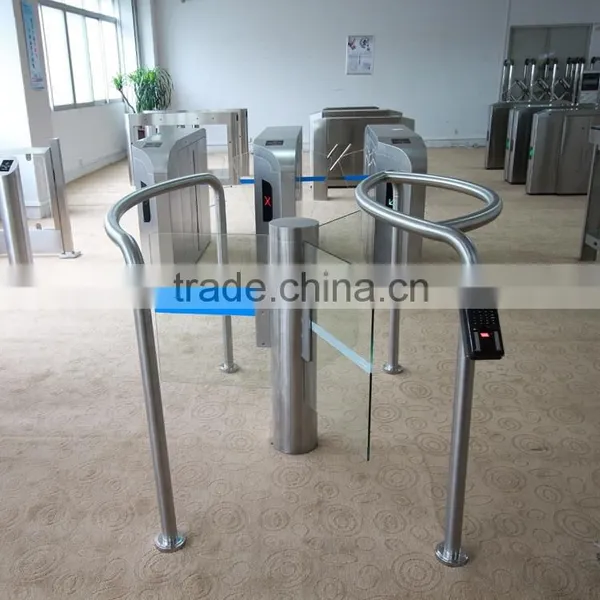

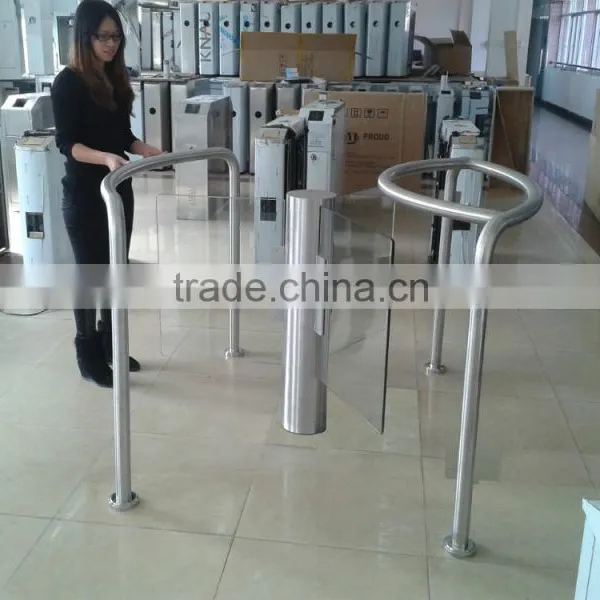

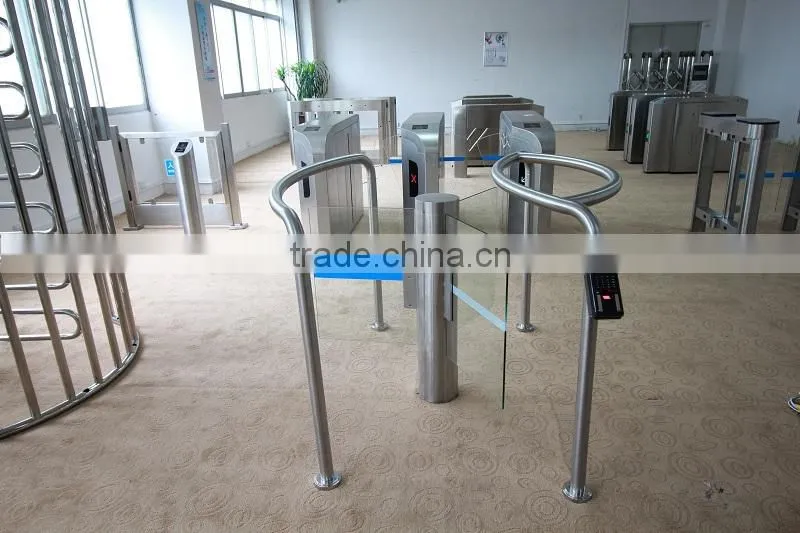

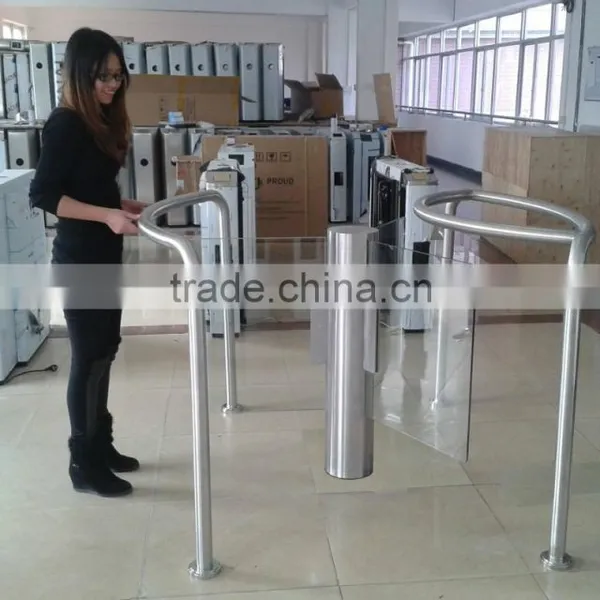

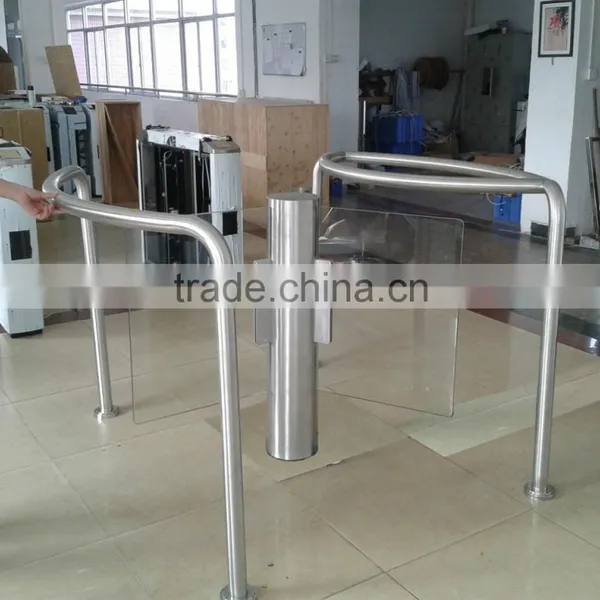

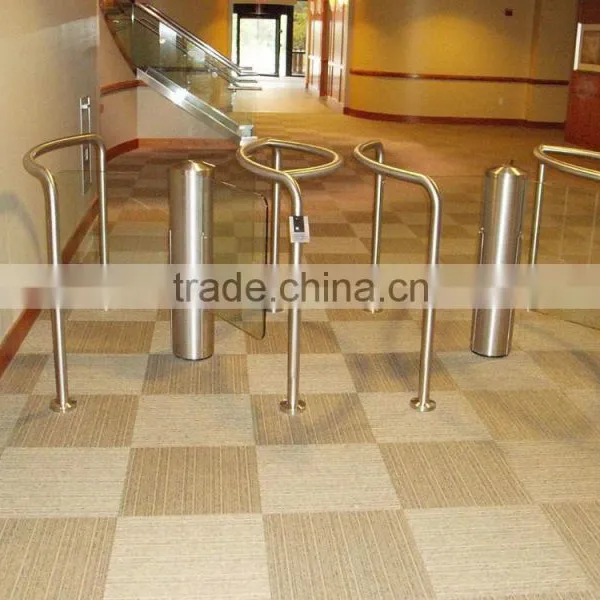

Butterfly Rotating Gate

Product description

This award winning Butterfly Rotating Gate is designed to offer many material options including wood, marble, slate, stainless steel handrails and glass casework.

The personalization ensures total integration into any environment, whilst operating quietly and rapidly.

Users include

l   Government

l   Retail

l   Finance

l   Telecommunications

l   Information Technology

l   Banking

l   Publishing

l   Leisure

l   Petrochemical

l   Education

Technical Specifications

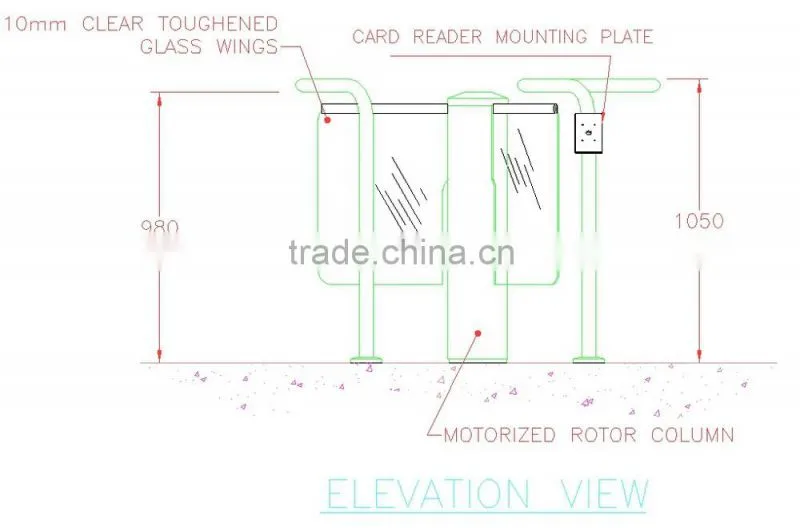

Unit Dimensions:     Diameter189*Height960mm

Walkway Width Standard 550mm

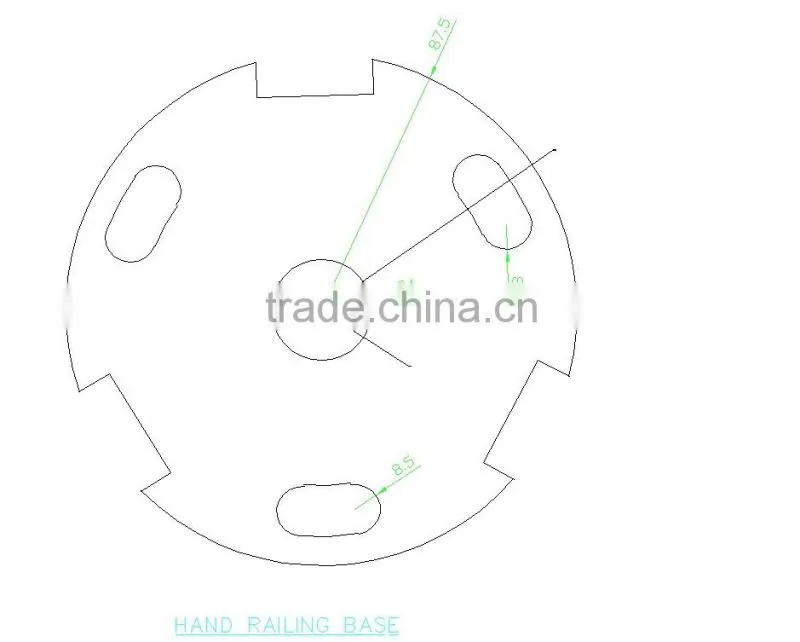

Materials:          #304 Stainless Steel, 50mm dia uprights and handrail

                     Rotor wing 10mm thick clear toughened frameless glass panels

Construction:    Pedestals are constructed of a steel frame. Small radius casework construction and

                     finishes applied such that no exposed seams appear at leading edges. Integrated

                     panels easily removed for Preventative Maintenance.

Drive:                 Motorized

Orientation:             Pass Left or Pass Right

Function:            Passage in both directions, electronically controllable

Operation:        On receiving a signal from the access control system or pushbutton, the unit will unlock and be in a state of readiness for use. On the paddle receiving pressure from the user i.e. push to start, the motor will take over and drive 120°to its next home position. Should the wing meet any resistance it will stop and nudge forward. If obstruction continues the unit will alarm and free wheel. An Auto-Reset will reestablish control. Should an attempt be made to tailgate the unit will lock. The Auto Reset will re-establish control.

Power Failure: In the event of emergency or isolation of power supply, unit will failsafe i.e. rotor would freely turn in both directions.

Fire Alarm:              Input facility is available for voltage free contact supplied by others to effect fail state. (12V and OFF on driver board interface )

Interface:          Potential free contact provided by either card reader or pushbutton input. Card reader inhibit and reset outputs signals are available as standard.

The unit has an adjustable time out facility if required, i.e. Go signal will be cancelled if the passage through the Butterfly is not completed within pre-set time. The standard default is 10 seconds

Power Supply: 110-240VAC 60Hz.

Power Rating: 80VA per Walkway

Logic Voltage: 24V DC

Installation Details:        Butterfly is delivered kit from i.e. Wings, Casework and Rotor, which may require lift gear for off loading.

Approximate Weight: 60kg

Modes:               Enter / Card In

Exit / Card Out

Free Exit / Card Out

Closed

Reset

Installation

Tools Required: Industrial hammer drill, Concrete drill bit 12mm, Socket 17mm AF, Extension bar (1m in length), Torque wrench.
