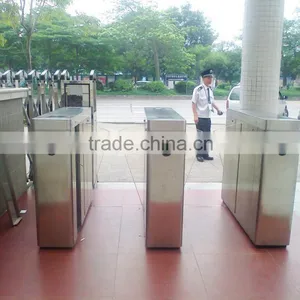

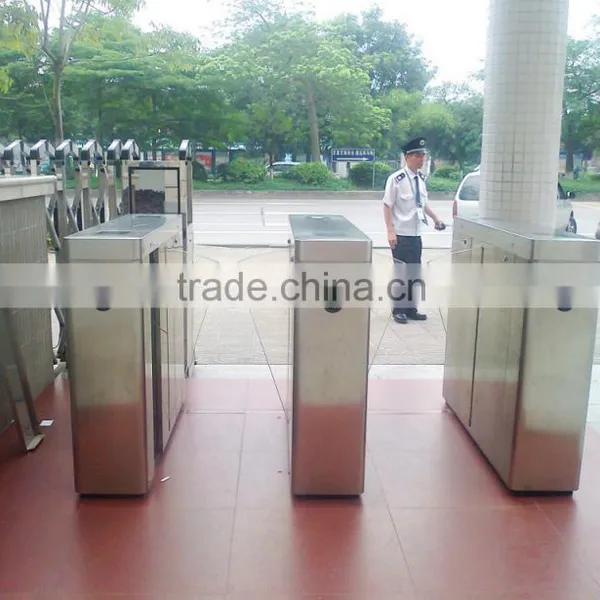

Optical Wing3

Optical Turnstile with Barrier Wings

AESTHETICS
The Wing11 has a substantial, authoritative profile that works well in large lobby or entrance areas. The hand polished exterior satin stainless cladding is set off beautifully by the turnstile’s black solid surface acrylic lid.

OPERATION
In normal operating mode, when a valid credential is presented, the clear barriers quickly retract into the cabinet in approximately 25 seconds, creating a clear passageway for the user. As the user passes through the turnstile, the barriers either smoothly return to the closed position (ready for the next valid credential), or, if another credential has been presented, the barriers remain open for the next users’ passage. Called “stacking” of credentials, this feature supports high user throughput.

The barrier panels are controlled via DC motors through rotary encoder control that monitors panel position every 1/1200 of a second. The panel movement is quick, precise and constantly monitored for utmost safety.

User passage and detection is accomplished using Proud’s newest generation optics and sophisticated detection software. The Wing11 provides a near perfect blend of safety, security and operational functionality.

INTUITIVE FOR USERS AND STAFF
Use of the Wing11 is highly intuitive for users and staff. Illuminated status icons on the lid and audible sounds prompt users, and provide clear notification of card status. The various alarm conditions (e.g., unauthorized entry; loitering in lane; tailgating, etc.) are differentiated by light flashing patterns and through the use of sounds which differentiate depending on the type of alarm.

THROUGHPUT
The Wing11 supports very rapid user throughput. The panels retract very quickly and optic processing is instantaneous. To further enhance throughput, the turnstile supports “stacking” of valid entries, meaning the turnstile can queue multiple valid entries without requiring the panels to cycle after each individual patron passage. Additionally, if a subsequent valid credential is presented during the barrier panel closing cycle, the arms stop in mid-cycle and immediately reopen; users do not need to wait until the opening/closing process completes. Depending on the application and response time of the access system used, throughput rates of up to 40 persons a minute can be reasonably expected.

PASSAGE MODES
The Wing11 has multiple passage modes. The turnstile can provide controlled operation in both directions (card in/card out). The turnstile can also provide controlled entry and free passage operation for environments where users are not required to “credential out" for exit. In free passage mode, users can walk directly into the passage lane at a normal pedestrian pace and the panels will automatically open without requiring the user to slow down. Individual turnstiles or select travel directions (e.g., entry as opposed to both entry and exit) can also be closed during off hours or slow periods.

UNWANTED ENTRY DETERRENCE
The Wing11 optical turnstile is also highly effective at deterring and detecting unwanted entry. Proud’s sophisticated detection technology detects unauthorized access attempts and "tailgating" behind an authorized user. Lower crawl sensors detect crawl under attempts. In the event of an invalid entry or exit attempt, the turnstile lights and sounds notify the user and alert attendants. Additional notification outputs are also provided, allowing integration with remote alarms, door locks, CCTV or other devices.

SAFETY
The Wing11 has a number of safety features. Multiple sensors and sophisticated detection algorithms prevent panels from closing on people. In addition, the turnstile has a dedicated emergency input for fire/life safety. If the emergency input is triggered (e.g. via fire alarm system), the barrier panels retract to allow free egress.

INSTALLATION AND COMMISSIONING
The newly redesigned Wing11 provides a very straightforward install. Instead of having to "tweak" each and every turnstile (e.g. adjust home/end panel positions), the Wing11 is nearly perfect right out of the crate. Proud takes great pride in keeping things simple for installers to minimize deployment time and avoid unnecessary complications. The Wing11’s standard operation settings are ideal for the majority of applications, but adjustments can be made through easy-to-use utilities.

RS485-BASED COMMUNICATION
RS485-based communication and configuration functionality is built into all Wing11 optical turnstiles, making it possible to adjust core turnstile settings via a local and/or remote RS485 network session. LaneSetting, allows authorized security personnel and technicians to load software updates and set individual turnstile parameters including:

• Alarm sounds and alarm timer settings
• Optical settings for detection of tailgating
• Motor settings, panel breakaway, sensitivity and speed settings

INTEGRATION WITH ACCESS CONTROL AND VISITOR MANAGEMENT SYSTEMS
The Wing11, like all Proud optical turnstiles, easily integrates with nearly any access control system. Each side of the turnstile allows interior (under the lid) installation of a mullion sized proximity reader at each end of the turnstile. Larger, or non-proximity-type, readers can be accommodated on top of the turnstile lid or through the use of an integrated pedestal.

The Wing11 also has a dedicated single–time entry override input that allows simple integration of a visitor management system and/or the implementation of a guard station push button.

OPTIONS & CUSTOMIZATIONS
The Wing11 has a number of available options. Alternate lid colors and materials are just an example of available options.

LANEGUARD (TURNSTILE CONTROL AND MONITORING SOFTWARE)
LaneGuard is a desktop application typically installed at a guard or attendant desk that allows installed Wing11 turnstiles to be monitored and controlled from a single PC. LaneGuard has an intuitive graphic interface that gives desk attendants a current status of all turnstiles, including an immediate notification of alarm conditions.

LaneGuard also includes the ability to set up scheduling templates that allow turnstile mode changes to be implemented automatically.

ENTRY AREA RAILING / BARRIERS
Modular post and rail and custom fabricated barrier sections are available to fill in open areas around installed turnstiles and gates. Learn more in our barrier and railing section.

CONSULTING / DELIVERY / SALES / AFTER INSTALLATION SUPPORT
our knowledgeable sales staff can assist with layout, product usage and options.

Wing11 turnstiles are made in China in our 1500m² manufacturing facility. The normal lead time for ten turnstiles or less is one week.

Sales and service is provided through an experienced integration and dealer network. Proud also has a national and international sales team to work directly with end users and our integration and dealer partners. On site commissioning is available from Proud employed technicians.

Proud has a dedicated support team that provides e-mail and phone support for the life of the product. Spare parts are maintained on site and are available for immediate shipping.

FEATURES

l  Attractive design suitable for any first class lobby

l  ADA spaced lanes are suitable for special needs passage

l  Sparkling clear barriers provide excellent optical clarity

l  Easily integrates with any access control or visitor management system

l  High throughput rates, up to 40 persons per minute

l  Superior optics detect tailgating and unauthorized entries; virtually eliminates false alarms

l  Safety sensors and "smart" software avoids barriers from closing on user

l  Fire and life safety system inputs automatically open barriers in emergency conditions

l  Clear user graphics and audio sounds provide intuitive guidance for users

l  Rotary encoder motor control provides quick, precise and quiet barrier movement

l  Extremely reliable operation - virtually no maintenance

l  Space for mounting mullion sized proximity readers under the lid

l  Installed and serviced through Proud's trained dealer network

l  Manufactured in China

OPTIONS

l  Corporate logo etching on clear moving barriers

l  Alternate lid colours and plated or color powder coated cabinets

l  ADA compliant widths

l  Portable base plates

l  Lane Guard configuration and administration software communicates with turnstiles over a wired TCP/IP network

l  Lane Key Control - If Lane Guard is not used, a three-position key can be used to override lane configuration and place turnstile in "Free Passage" or "No Passage" modes

l  110VAC - Unit accepts 110-240VAC input

TECHNICAL SPECS

l  Orientation: Bi-Directional

l  Unit Dimensions: L1200*H100*W280mm

l  Walkway Width Standard: 600mm

l  Materials: #4 Stainless Steel

l  Construction: Pedestals are constructed of a #4 Stainless Steel frame. Small radius casework construction and finishes applied such that no exposed seams appear at leading edges. Integrated panels easily removed for Preventative Maintenance.

l  Function: Passage in both directions, electronically controllable.

l  Drive Mechanism: The wings are moved by mechanical arms. The arms are rotated by a torque shaft connected to the drive unit. A safety photocell prevents the wings from closing upon an obstruction. Should the normal wing operation be stopped by an obstruction, the controlling logic detects an abnormal condition and reverses the wing to the fully open position.

l  Method of Operation: On receiving a signal from the access control system, or push button, the wings open. If an unauthorized person tries to tailgate or attempts to enter from the opposite direction, the system detects the unauthorized passage and activates the built-in alarm system.

l  Presence sensing is achieved by infrared sensors.

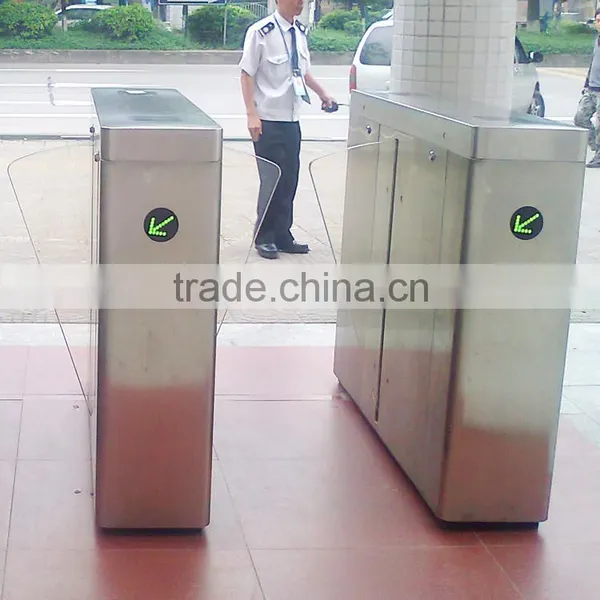

l  Status Lights: 50mm dia. LED display Status Lights flush mounted within the barrier lid top face. The Green badge symbol is continuously illuminated indicating passage is available. Upon authorization a Green arrow will illuminate in the direction of passage authorization while in the opposite direction a Red Cross symbol will illuminate to indicate the unit is not available for use or is already in use.

l  Power Failure: In the event of a power failure the wings will drive to the open position.

l  Fire Alarm: Input facility is available for voltage free contact supplied by others to effect fail state.

l  Interface: Potential free contact provided by either card reader or pushbutton input. Card reader inhibit and reset outputs signals are available as standard.

l  The unit has an adjustable time out facility if required, the go ahead signal will be cancelled if the passage through the Barrier is not completed within a pre-set and field programmable time frame.

l  Power Supply: 110-240VAC, 60Hz.

l  Power Rating: Stand by Less than 0.5 AMP, In Operation Up to2.0 AMP

l  Max power consumption is 100W per lane with all available electrical options.

l  Operational Voltage: Primary power is stepped down and rectified for low voltage 24VDC, 12VDC and 5VDC operations.

l  ON/OFF Key Switch: An on/off key switch is located on each master cabinet.

l  Surge Protection: A 2.5 amp fuse is installed in each master cabinet.

l  Operation Temperature: 1°C to 70°C

l  Storage Temperature: -4°C to 80°C

l  Relative Humidity: 20%-90% (non-condensing)

l  Installation Details: Delivered as a fully assembled unit and may require lifting gear for off loading.

l  Approximate Weight: 90kg

l  Shipping Weight: 120kg

Standard Operating

l  Status Lights: Uniquely designed Card Reader Pictograms are fitted into the box top, one for each direction, to visually assist the user when passing through the unit.

l  Audible Notification: Each lane of the box has four discrete sounds to indicate the following:
                   One tone - Reminder to swipe card.
                   Chime - Access authorization.
                 Two tone - Lane alert.
                  Loud buzzer - Forced barrier.

l  Pictograms: 80mm dia LED display pictograms flush mounted within the barrier lid top face (included as standard). The Green badge symbol is continuously illuminated indicating passage is available. Upon authorization a Green arrow will illuminate in the direction of passage authorization whilst in the opposite direction a Red cross symbol will illuminate to indicate the unit is unavailable for use or is already in use.

l  Card reader mounting
                   Integration of customer supplied readers into the Barrier Top or Front inlays.
                   Card reader Pedestals.

l  Push Button Control
                   Simple console to control Flap barrier wing release. (Suitable to authorize access
                   for persons needing assistance)
                   Remote console to specific requirements.
                   Casework mounted push button.

l  Additional Interface
                   RS 485 Serial Interface

l  Traffic Flow Control
                 LED Way Mode Indicator - Switching Red cross and Green arrow to indicate the
                   unit is available for use
                   Remote switching of unit for Traffic Flow.

l  Counting
                   CD Counter
                   Electro-mechanical Counter
