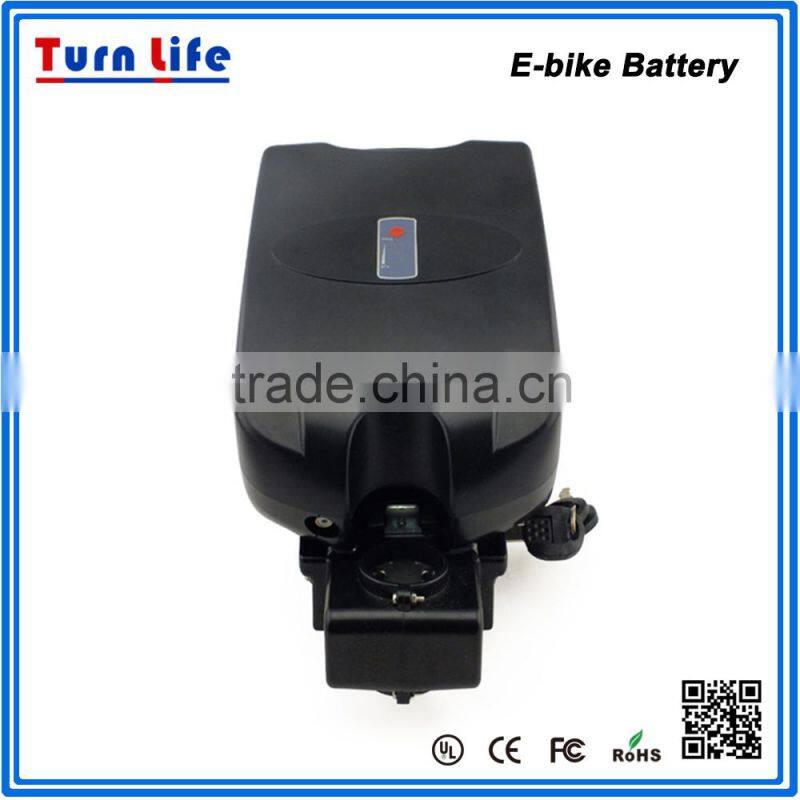

Help CenterLithium Polymer Battery 24v 10ah With Samsung Frog E-bike Battery Case
Related Products
-
24V 10Ah 18650 Samsung Cell Silver Fish Battery Pack for Electric BikeUS$ 80 - 250MOQ: 100 Packs -
Electric Bicycle Battery Rear Back E-bike Battery Case 36V 10AhUS$ 1 - 40MOQ: 100 Sets
-
24V 10Ah Battery Pack for Electric BikeUS$ 1 - 165MOQ: 10 Packs
-
36V 10Ah Rechargeable Lithium Battery PackUS$ 1 - 198MOQ: 10 Packs
-
24V 10Ah Aluminum Silver Fish External Battery CaseUS$ 1 - 25MOQ: 100 Sets
Lithium polymer battery 36v 10ah with Samsung frog e-bike battery Case
| Model | QW001 | |
| Cell Type | 18650 Li-ion |
|
| Nominal Voltage | 24V 10.4A | |
| Rated Capacity | 10Ah (0.5C2A discharge) | |
| Internal Resistance | ≤190mΩ (AC1kHz AC impedence) | |
| Weight | About 4.KG | |
| Dimension | 314(L)mmx149mm(W)x157mm(H) | |
| Charge&Discharge Mode | CC&CV | |
| Cycle Life | ≥2000 times | |
|
Battery Hopower Retention (power strorage:one month) |
≥95% | |
| Certification | RoSH,CE | |
| Warranty | 18 months | |
| Applicaiton | Electric bike,E-scooter etc | |
| Charge | Standard Charge Current | 2A |
| Max Discharge Current | 3.5A | |
| Max Charge Voltage | 42V | |
| Discharge | Standard Discharge Current | 5A |
| Max Discharge Current | 20A | |
| Discharge Cut-off Voltage | 30V | |
|
PCB parameters |
Overcharge Protection Voltage | 4.25±0.03V |
| Over-discharge Voltage Protection | 2.5±0.1V | |
| Over-current Protection Current | ≥40A | |
| Over-current Protection Delay | < 15 ms | |
|
Working Temp. |
Charge Temp. | 0~45°C |
| Discharge Temp. | -20~55°C | |
Detailed photo
Product Feature
1.Import Waterproof ABS plastic raw material;
2.Light-weight,high energy density;
3.Built-in PCB protection,prevent overcharge,over-discharge,over current and short current.To keep battery chemistry intergrality and prolong battery life;
4.Superior 18650 li-ion battery,has longer cycle life than NIMH battery;
5.PolySwitch Installed will cut off the power when the battery is discharging over current.
Packed with carton
Shipping: by sea or by air
1.18 Months Warranty:We will provide 18 months warranty after shipment.
2.Strict Quality Control:All parts must be strictly tested by QC department before shipping.
3.OEM order Welcome:We can accept OEM order anytime.
4.Small Quantity Acceptable: Please don’t worry your requirement quantity is small, because we also accept samples
before bulk orders.
5.Return Policy:For defective goods,please send us the pictures to confirm then we will give you the replacement
during warranty period.
6. Good Aftersale Service:Any questions on technical issues,welcome to contact us anytime.We will help you solve at first time,our hotline:86 755 66852088(613)
Certification
Q: What's the capacity of the frog case?
A : 24V/ 36V,not suitable for 48V.
|
|
|
|
|
|
