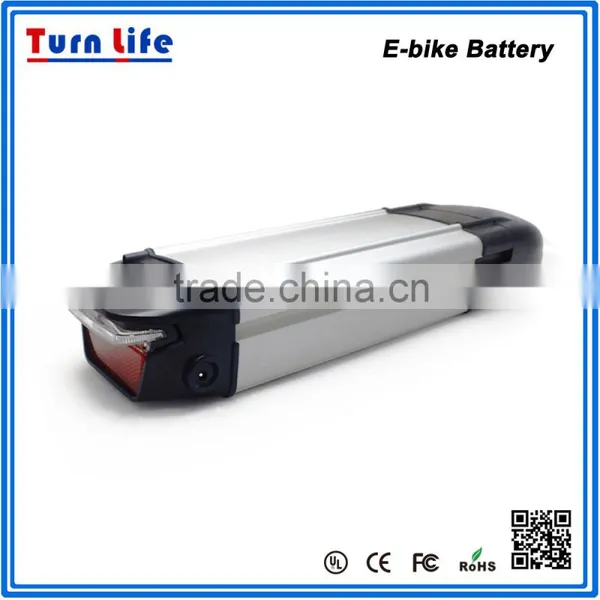

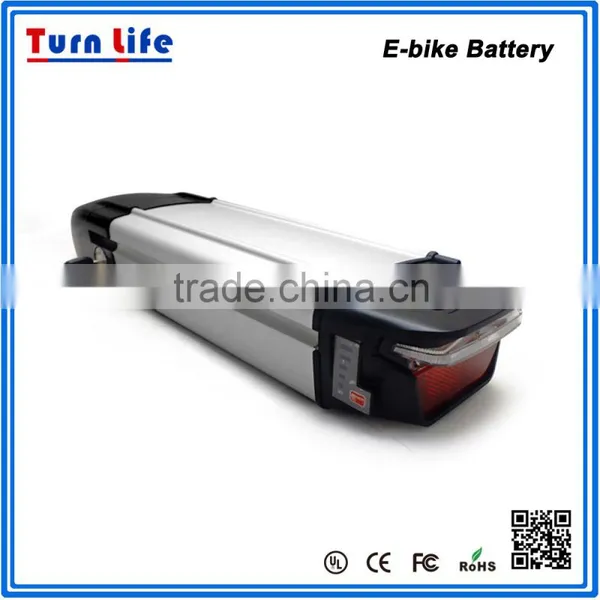

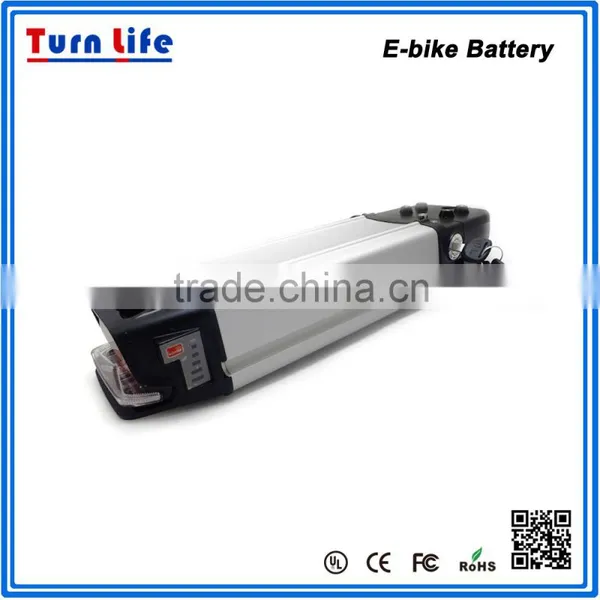

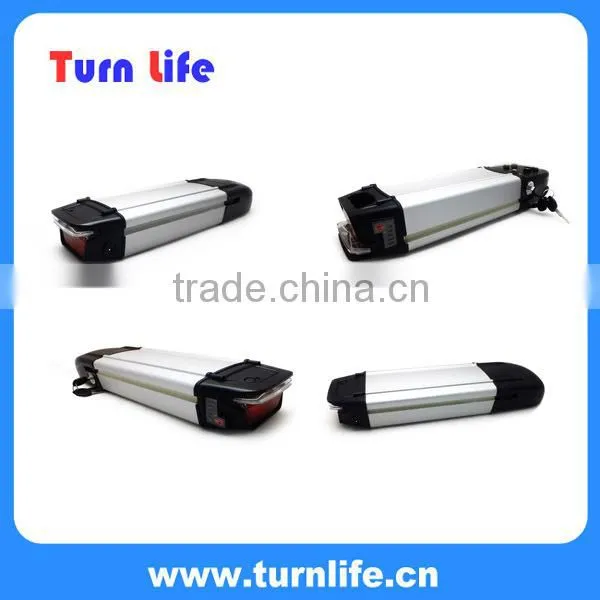

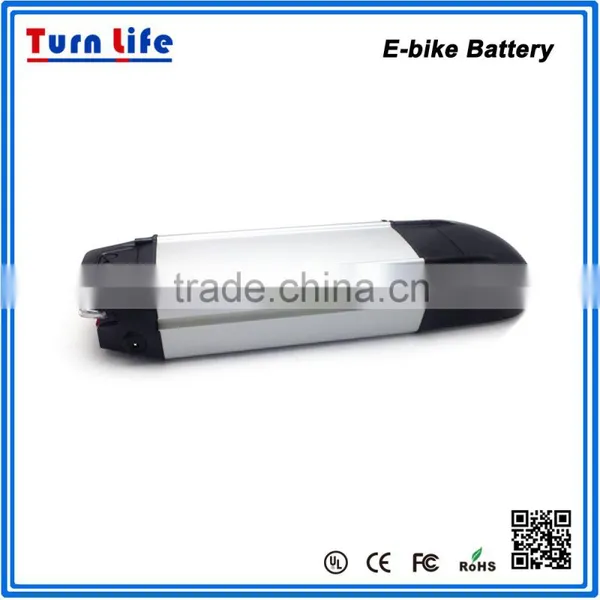

24V 10Ah Battery Pack for Electric Bike
1.Model: TL-SLBP2410HC243
2.Cell Type:18650 Samsung Li-ion
3.Nominal Voltage:24V
4.Rated Capacity:10Ah (0.5C2A discharge)
5.Internal Resistance≤160mΩ (AC1kHz AC impedence )
6.Weight:About 4.5KG
7.Dimension: 453mm(L)x128mm(W)x79mm(H)
8.Charge&Discharge Mode:CC&CV
9.Cycle LIfe≥2000 times
10.Charge:Standard Charge Current:2A
Max Discharge Current:3.5A
Max Charge Voltage:29.4V
11.Discharge:Standard Discharge Current:5.0A
Max Discharge Current:20.0A
Discharge Cut-off Voltage:21.0V
12.PCB parameters:Overcharge Protection Voltage:4.25±0.03V
Over-discharge Voltage Protection: 2.5±0.1V
Over-current Protection Current≥40A
Over-current Protection Delay < 15 ms
13.Working Temp.:Charge Temp.:0~45°C
Discharge Temp.:-20~55°C
14.Battery Hopower Retention(power strorage:one month)≥95%
15.Certification:RoSH,CE
16.Warranty:18 months
17.Applicaiton:Electric bike,E-scooter etc
1.Import Waterproof ABS plastic raw material;
2.Light-weight,high energy density;
3.Built-in PCB protection,prevent overcharge,over-discharge,over current and short current.To keep battery chemistry intergrality and prolong battery life;
4.Superior 18650 samsung battery cell,has longer cycle life than NIMH battery;
5.PolySwitch Installed will cut off the power when the battery is discharging over current.
1.18 Months Warranty:We will provide 18 months warranty after shipment.
2.Strict Quality Control:All parts must be strictly tested by QC department before shipping.
3.OEM order Welcome:We can accept OEM order anytime.
4.Small Quantity Acceptable: Please don’t worry your requirement quantity is small, because we also accept samples
before bulk orders.
5.Return Policy:For defective goods,please send us the pictures to confirm then we will give you the replacement
during warranty period.
6. Good Aftersale Service:Any questions on technical issues,welcome to contact us anytime.We will help you solve
at first time.Our service hotline:+86-755-66852088(613)
