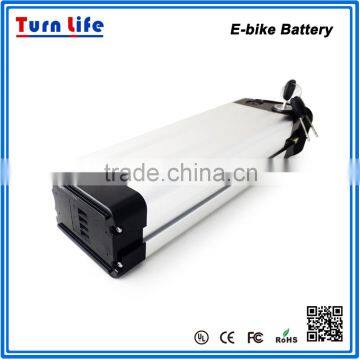

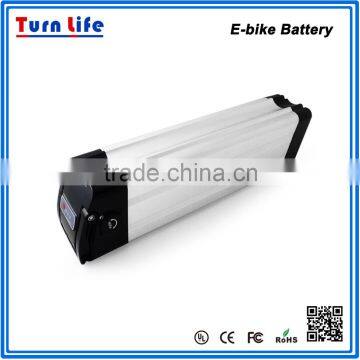

24V 10Ah 18650 Samsung Cell Silver Fish Battery Pack for Electric Bike
Product Specification
| Name | battery for electric bicycle |
|
| Cell Type | 18650 Samsung Li-ion |
|
| Model | YB285 | |
| Nominal Voltage | 24V | |
| Rated Capacity | 10Ah | |
| Internal Resistance | ≤190mΩ (AC1kHz AC impedence) | |
| Weight | About 3.5kg |
|
| Dimension | 117mm(L)x81mm(W)x390mm(H) | |
| Charge&Discharge Mode | CC&CV | |
| Cycle Life | ≥500 times | |
|
Battery Hopower Retention (power strorage:one month) |
≥95% | |
| Certification | RoHS,CE | |
| Warranty | 12 months | |
| Applicaiton | Electric bike,E-scooter etc | |
| Charge | Standard Charge Current | 2A |
| Max Discharge Current | 3.5A | |
| Max Charge Voltage | 42V | |
| Discharge | Standard Discharge Current | 5A |
| Max Discharge Current | 20A | |
| Discharge Cut-off Voltage | 30V | |
|
PCB parameters |
Overcharge Protection Voltage | 4.25±0.03V |
| Over-discharge Voltage Protection | 2.5±0.1V | |
| Over-current Protection Current | ≥40A | |
| Over-current Protection Delay | < 15 ms | |
|
Working Temp. |
Charge Temp. | 0~45°C |
| Discharge Temp. | -20~55°C | |
Product Features
1.Import Waterproof ABS plastic raw material;
2.Light-weight,high energy density;
3.Built-in PCB protection,prevent overcharge,over-discharge,over current and short current.To keep battery chemistry intergrality and prolong battery life;
4.Superior 18650 samsung battery cell,has longer cycle life than NIMH battery;
5.PolySwitch Installed will cut off the power when the battery is discharging over current.
1. .Delivery ways: DHL,UPS,FedEx door to door service ,by sea,by air,etc.
2. Neutral packaging or as per client's request.
1.Reply your inquiry in 24 working hours.
2.Customized design is available.OEM & ODM are welcomed.
3.Professional engineers & Exclusive and unique solution.
4.Well-trained staffs.
5.Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
Turn Life is one of the high technology firms which devotes to R&D the new energy, mainly engaged in the electric bike lithium
battery, customized lithium battery and power bank. Develop, produce and sell three series of solar storage system battery.
Q: Can I get one sample?
A: Yes, the sample can be sent out within 3 working days after we get the sample fee.
Q:Can we customize the outside case?
A: Yes, we can design as your request, we have a big enginner and designing team.
If you have a question or comment, please contact us now. let us make the life more healthy with the e-bike bettery. Thanks.
Just click"send" now. We are looking forward to your inquiry.
|
|
|
|
|
|
