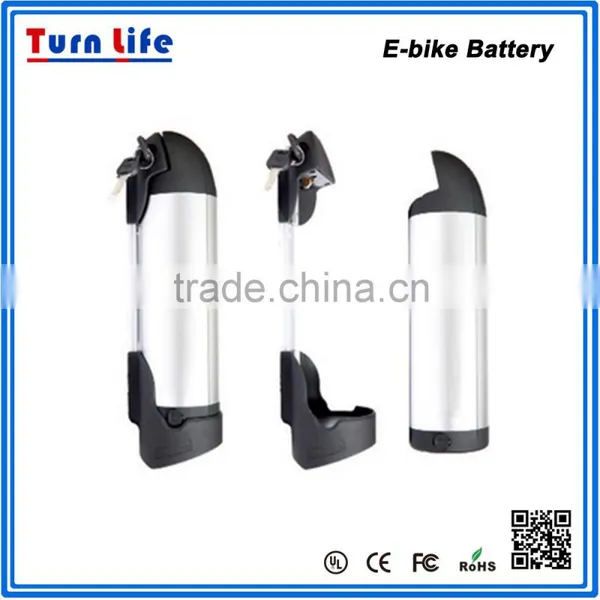

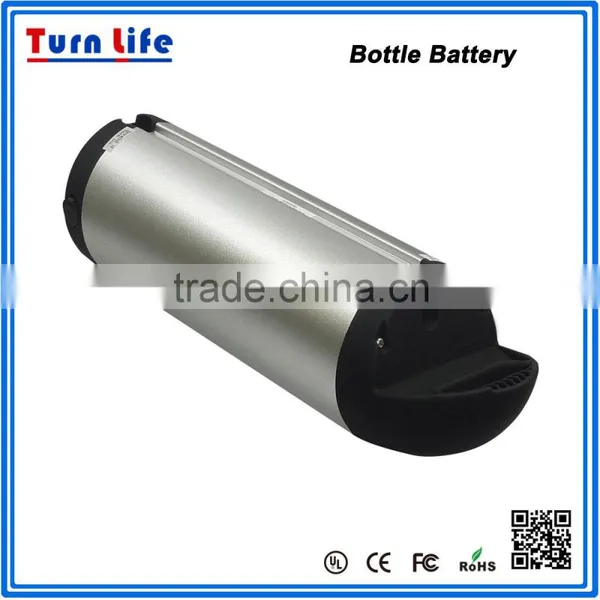

36v 10ah electric bike li ion samsung battery for electric bike
Product features
1.Import Waterproof ABS plastic raw material;
2.Light-weight,high energy density;
3.Built-in PCB protection,prevent overcharge,over-discharge,over current and short current.To keep battery chemistry intergrality and prolong battery life;
4.Superior li-polymer battery cell,has longer cycle life than NIMH battery;
5.PolySwitch Installed will cut off the power when the battery is discharging over current.
Product Specification
| Model | SS-02 | |
| Cell Type | 36v 10ah electric bike li ion samsung battery for electric bike | |
| Nominal Voltage | 36V | |
| Rated Capacity | 10.4Ah (0.5C2A discharge) | |
| Internal Resistance | ≤190mΩ (AC1kHz AC impedence) | |
| Weight | About 3.5KG | |
| Dimension | 95(L)*91(W)*386(H)mm | |
| Charge&Discharge Mode | CC&CV | |
| Cycle Life | ≥500 times | |
|
Battery Hopower Retention (power strorage:one month) |
≥85% | |
| Certification | RoSH,CE | |
| Warranty | 18 months | |
| Applicaiton | Electric bike,E-scooter etc | |
| Charge | Standard Charge Current | 2A |
| Max Discharge Current | 3.5A | |
| Max Charge Voltage | 42V | |
| Discharge | Standard Discharge Current | 5A |
| Max Discharge Current | 20A | |
| Discharge Cut-off Voltage | 17.5V | |
|
PCB parameters |
Overcharge Protection Voltage | 4.25±0.03V |
| Over-discharge Voltage Protection | 2.5±0.1V | |
| Over-current Protection Current | ≥40A | |
| Over-current Protection Delay | < 15 ms | |
|
Working Temp. |
Charge Temp. | 0~45°C |
| Discharge Temp. | -20~55°C | |

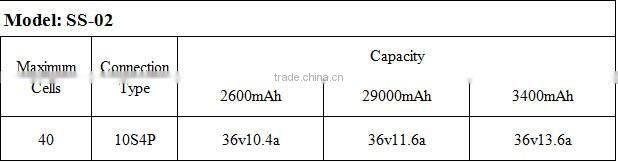

Battery Capacity
2.Strict Quality Control: All parts must be strictly tested by QC department before shipping.
3.OEM order Welcome:We can accept OEM order anytime.
4.Small Quantity Acceptable: Please don’t worry your requirement quantity is small, because we also accept samples before mass orders. electric bike battery
5.Return Policy:For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Good Aftersale Service:Any questions on technical issues,welcome to contact us anytime.We will help you solve at first time.
Our partners
Q: Is it the original Samsung Cell?
A: Yes, it is. We only export the Samsung Cell.
Q: Can we get one sample?
A: Yes, samples can be delivered 3-10 working days
