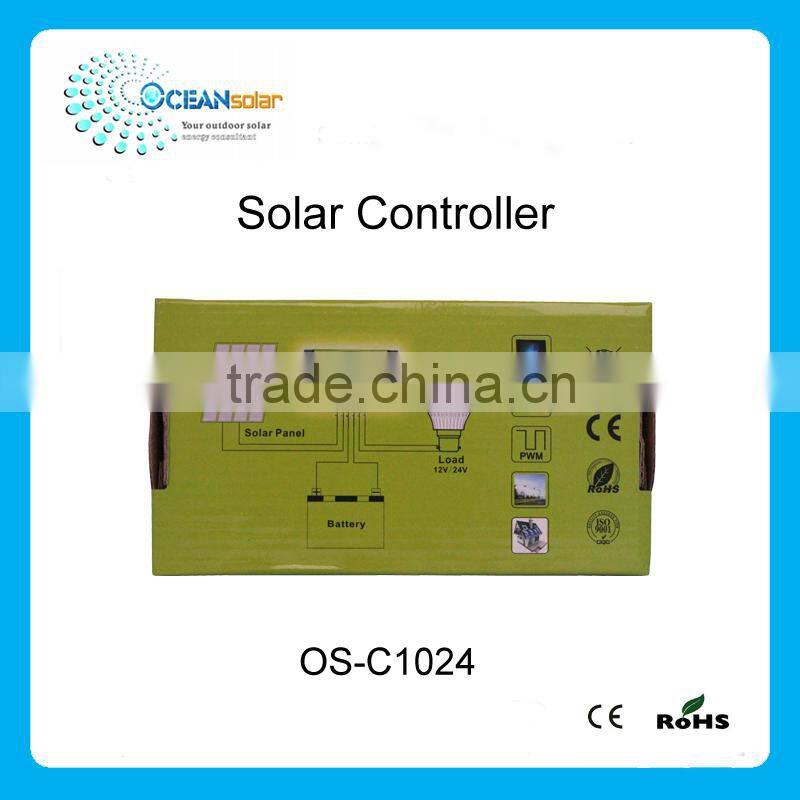

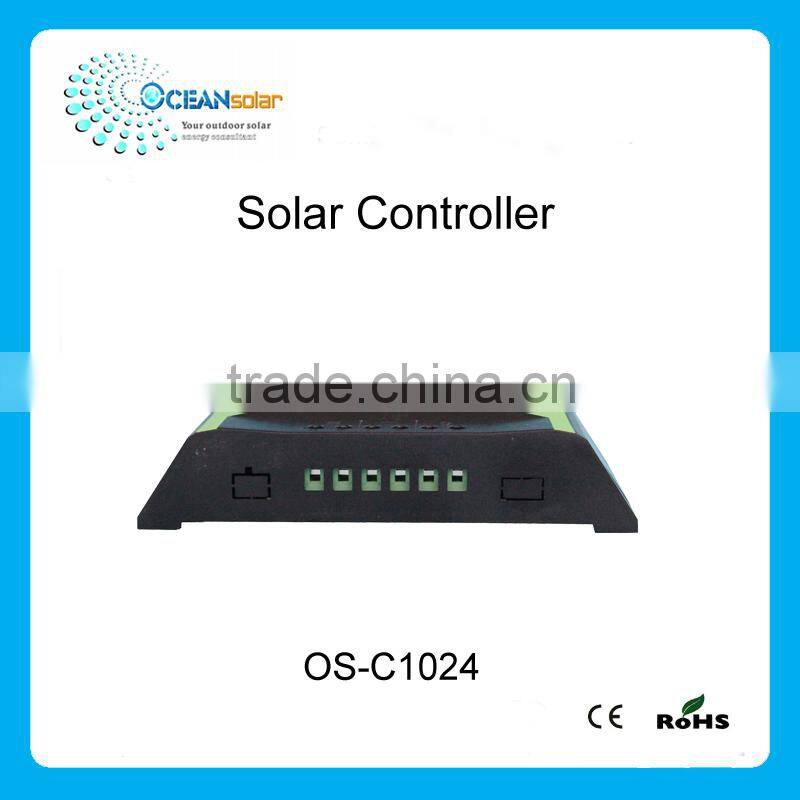

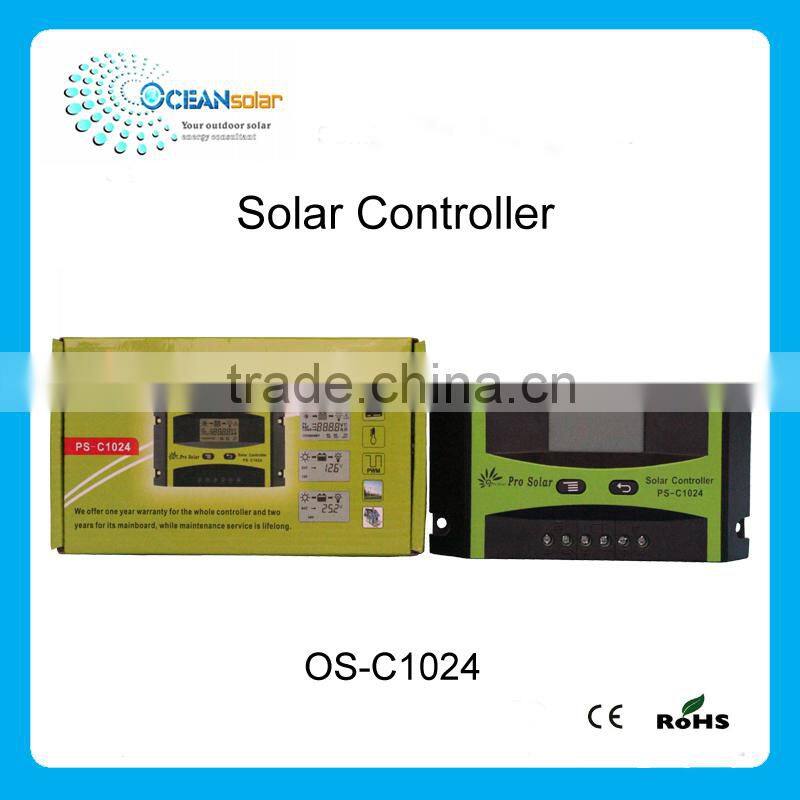

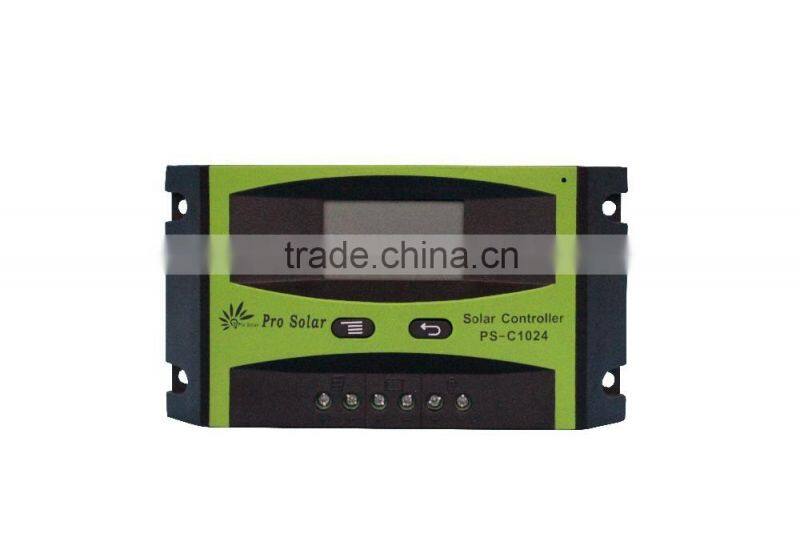

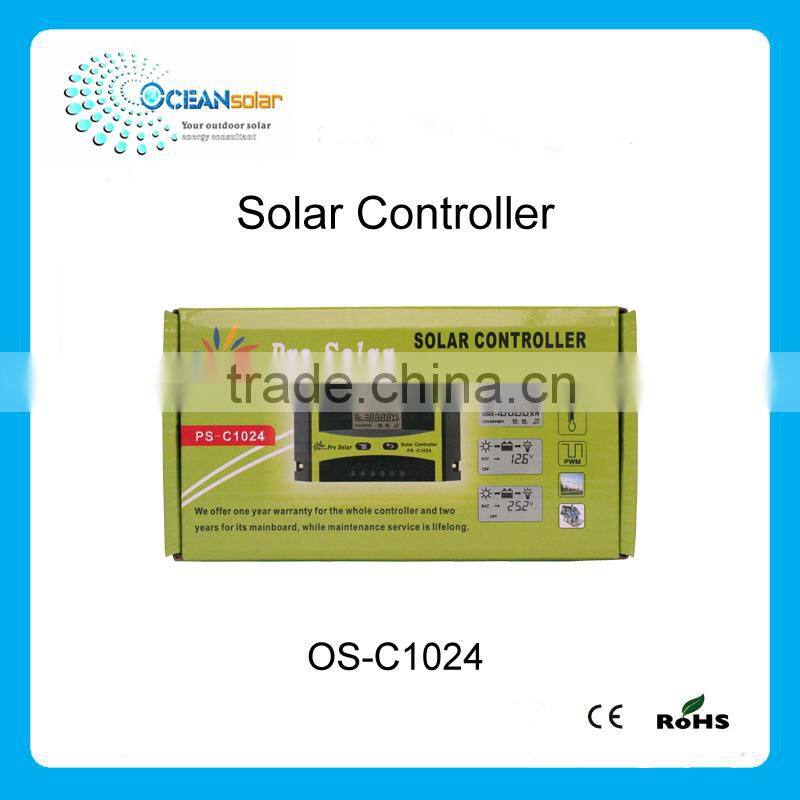

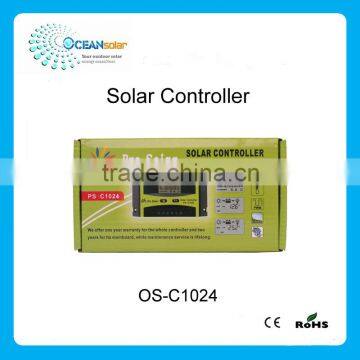

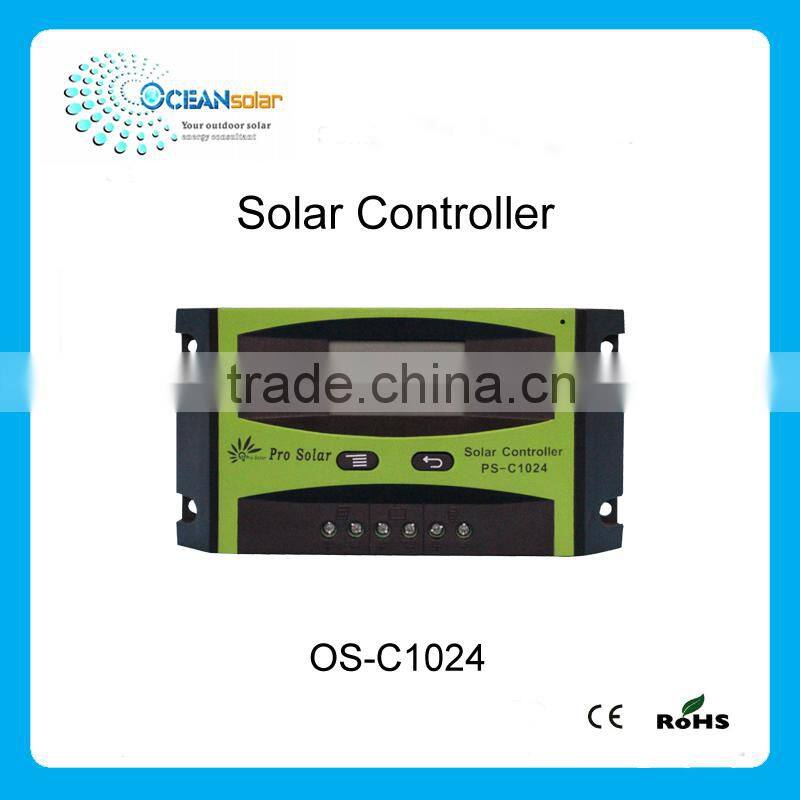

Help Center10A Hotsale 12V 24V Auto PWM Solar Regulator With LCD Display
Related Products
-
10A Pwm Solar Regulator Price 12V Manual Solar Charge ControllerUS$ 46.35 - 48.35MOQ: 200 Pieces -
20A Auto 12V24V Solar Controller Manual PWM Solar Charge ControllerUS$ 56.87 - 60.5MOQ: 40 Pieces
-
50A 12V 24V PWM Solar Regulator for Home SystemUS$ 278.3 - 281.3MOQ: 24 Pieces
-
60A Solar Charge Controller With LCD DisplayUS$ 399.3 - 402.3MOQ: 24 Pieces
-
Wholesale PWM 60A Solar Controller With Lcd DisplayUS$ 290.4 - 293.4MOQ: 24 Pieces
Solar Controller
----OS-C1024
Intelligent solar charge controller PWM Introduction:
This controller continues the huge success of one of the most used SHS (Solar Home System.) With a power range to 10A at automatically recognized 12V or 24V it fits to a system size of maximum 240 W.
The latest charging technologies, combined with a new state of charge determination which has been significantly improved once again. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display.
Product’s Features:
* Microcontroller digital accuracy self test
* PWM control
* Multistage charging technology
* Load disconnection depending on LVD
* Automatic load reconnection
* Temperature Compensation
* Common positive grounding on one terminal
* Integrated data logger(optional)
* Night light and morning light function
* Integrated self test
* Automatic detection of voltage
* Manufactured according to ISO9001 and ISO14001
Electronic protection functions:
* Overcharge Protection
* Reverse polarity protection of module, load and battery
* Short circuit protection of load and module
* Open circuit protection with disconnected battery array
* Reverse current protection at night
* Battery Overvoltage shutdown
* Deep discharge Protection
* Automatic electronic fuse
* Overload protection
* Battery Over-voltage shutdown
Operation:
* Simple menu-driven operation
* Programming by button
* Manual load switch
Parameters
Model |
OS-C1024 |
||
Rated Current |
10A |
Installation cable area. |
≤7# AWG (25mm2) |
Rated Voltage |
12V/24V |
Operating Temperature |
-10℃~60℃ |
Open Circuit Voltage of solar panel |
≤50V |
Storage temperature |
-30℃~70℃ |
Float Voltage |
13.8V/27.6 |
Humidity requirements |
≤90%,no condensation |
Low Voltage |
10.7V/21.4V |
Size |
130mm×188mm×62mm |
Low Voltage Disconnection(LVD) |
12.5V/25V |
Mounting hole spacing |
98 mm×178 mm--Φ5 |
No load loss |
<30mA |
weight |
383g |
Loop Voltage Drop |
≤170mV |
|
|
Charging Mode |
PWM |
|
|
Temperature Compensation |
-4mV/Cell/℃ |
|
|
Packing Information
Model |
OS-C1024 |
Packing Size |
53.5*39*22.5CM |
PCS/CTN |
40 |
G.W/CTN |
16.35KGS |
20GP |
596CTNS |
40HQ |
1448CTNS |
