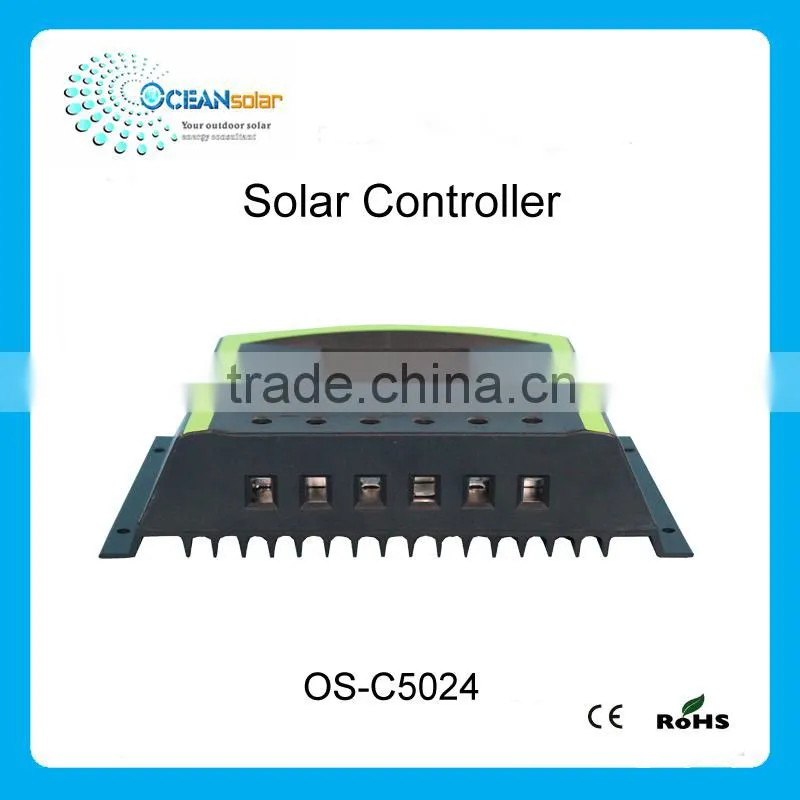

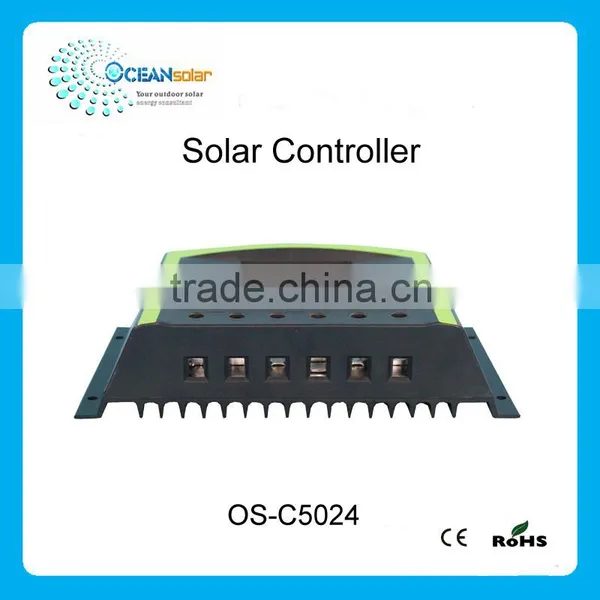

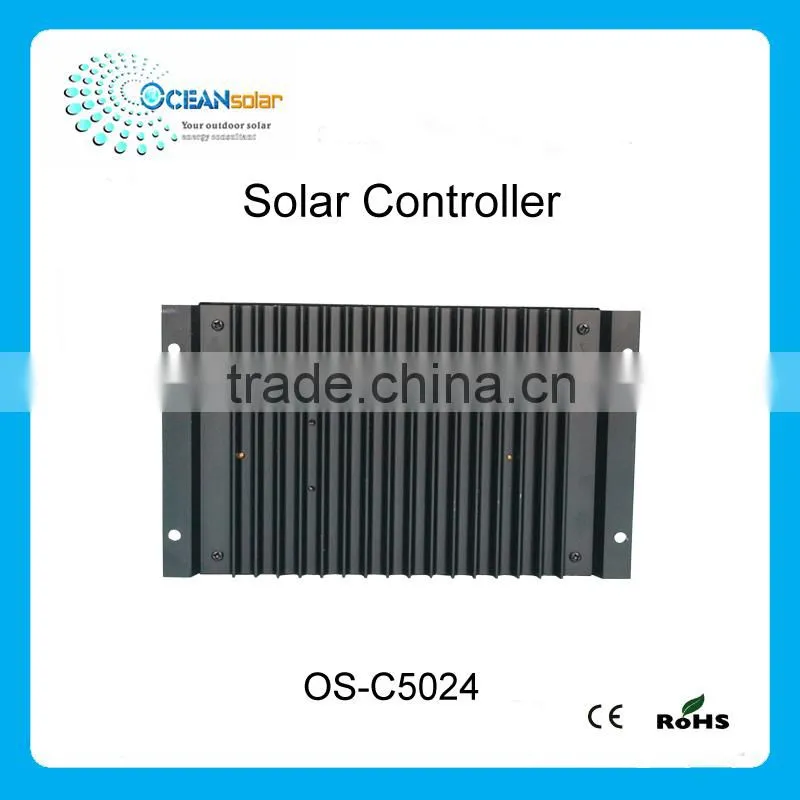

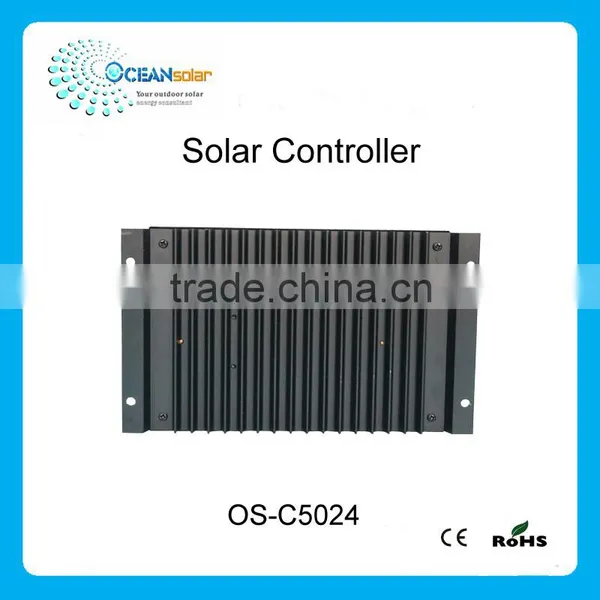

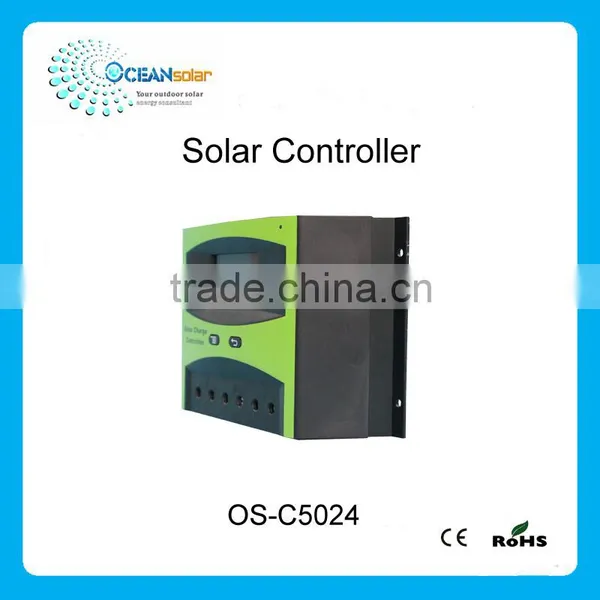

Solar Controller

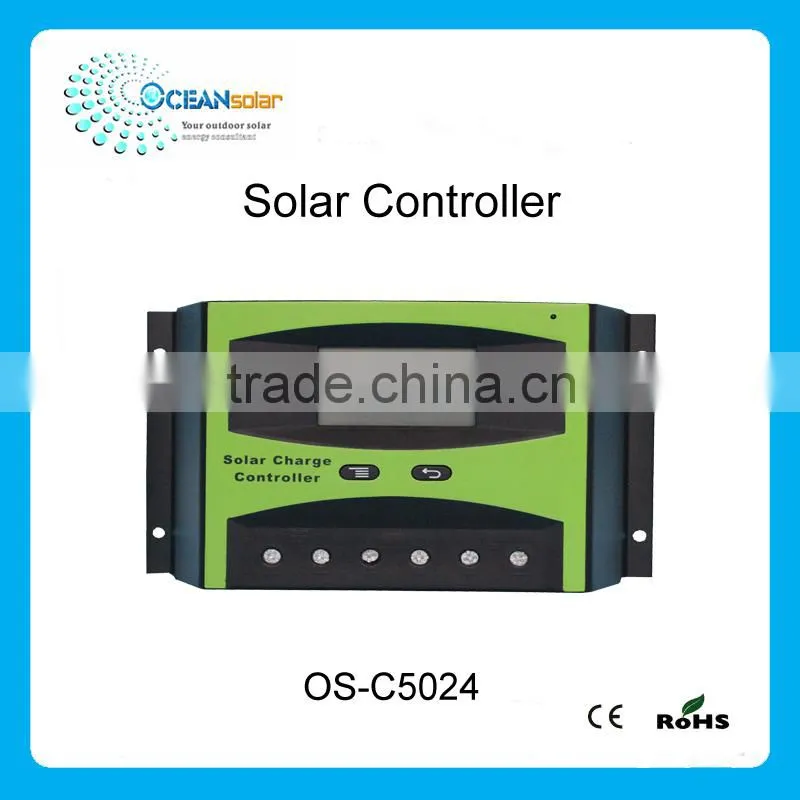

----OS-C5024
Intelligent solar charge controller PWM Introduction:
This controller continues the huge success of one of the most used SHS (Solar Home System.) With a power range to 50A at automatically recognized 24V it fits to a system size of maximum1200W.

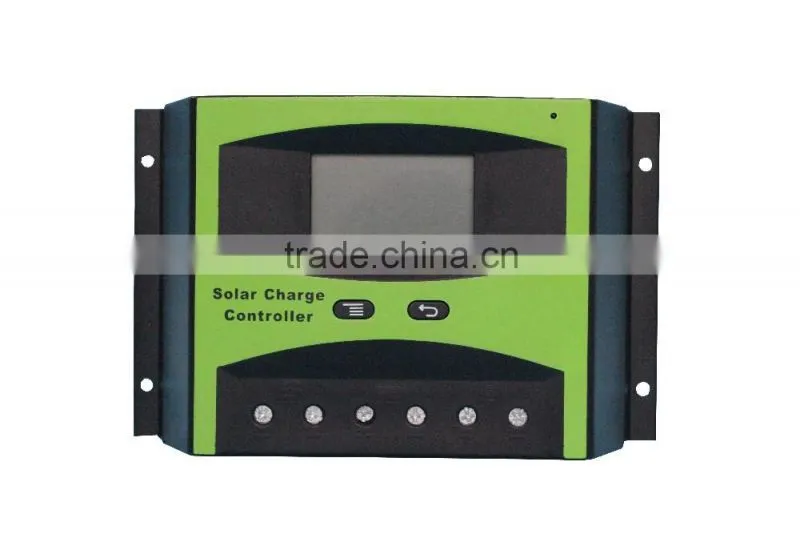

The latest charging technologies, combined with a new state of charge determination which has been significantly improved once again. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display.
Product’s Features:
* Microcontroller digital accuracy self test
* PWM control
* Multistage charging technology
* Load disconnection depending on LVD
* Automatic load reconnection
* Temperature Compensation
* Common positive grounding on one terminal
* Integrated data logger(optional)
* Night light and morning light function
* Integrated self test
* Automatic detection of voltage
* Manufactured according to ISO9001 and ISO14001
Electronic protection functions:
* Overcharge Protection
* Reverse polarity protection of module, load and battery
* Short circuit protection of load and module
* Open circuit protection with disconnected battery array
* Reverse current protection at night
* Battery Overvoltage shutdown
* Deep discharge Protection
* Automatic electronic fuse
* Overload protection
* Battery Over-voltage shutdown
Operation:
* Simple menu-driven operation
* Programming by button
* Manual load switch
Parameters
Model |
OS-C5024 |
||
Rated Current |
50A |
Installation cable area. |
≤7# AWG (25mm2) |
Rated Voltage |
12V/24V |
Operating Temperature |
-10℃~60℃ |
Open Circuit Voltage of solar panel |
≤50V |
Storage temperature |
-30℃~70℃ |
Float Voltage |
13.8V/27.6V |
Humidity requirements |
≤90%,no condensation |
Low Voltage |
10.7V/21.4V |
Size |
130mm×188mm×62mm |
Low Voltage Disconnection(LVD) |
12.5V/25.0V |
Mounting hole spacing |
98 mm×178 mm--Φ5 |
No load loss |
<30mA |
weight |
590g |
Loop Voltage Drop |
≤170mV |
|
|
Charging Mode |
PWM |
|
|
Temperature Compensation |
-4mV/Cell/℃ |
|
|

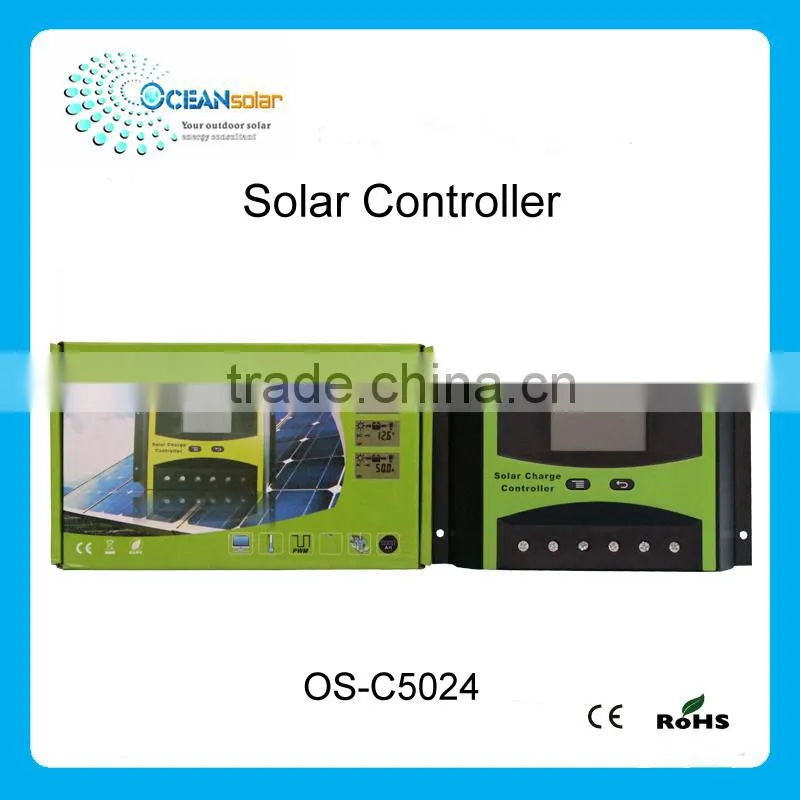

Packing Information
Model |
OS-C5024 |
Packing Size |
48*44*38.5CM |
PCS/CTN |
24 |
G.W/CTN |
19.2KGS |
20GP |
344CTNS |
40HQ |
836CTNS |
