Specifications

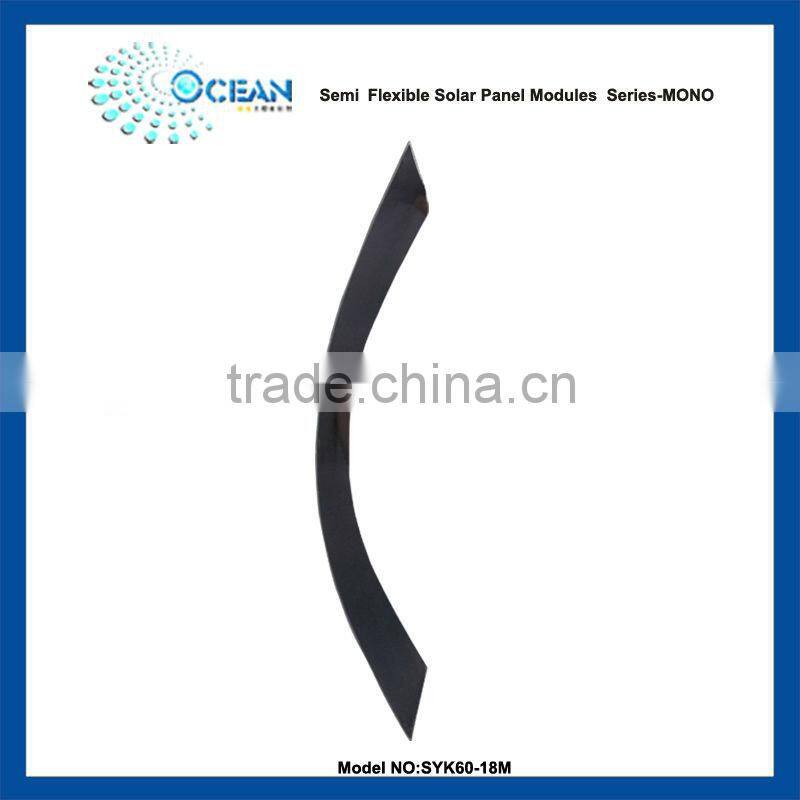

Flexible up to 2.5% (= 2.5cm over 1 m) across their lengthcan be mounted on curved surfaces
with 1.5m halogen free cable

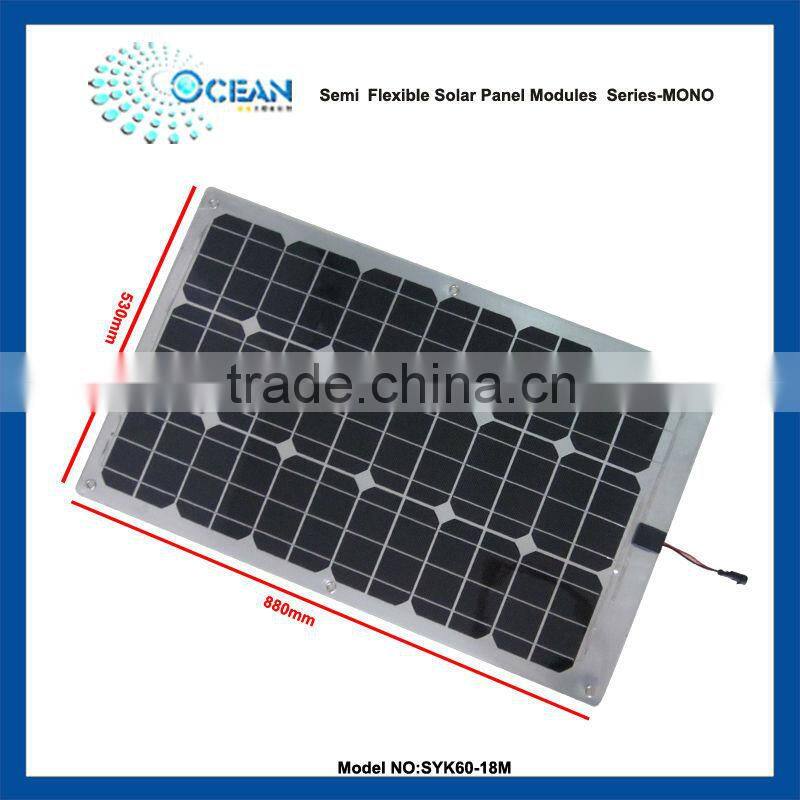

60w 12v semi-flexible solar panel with weatherproof low-profile & lightweight design
main features:
1- Flexing must not exceed 2.5cm for every 100cm of length
2- Durable with aluminum back sheet, no glass
3- Light weight for easy carrying
4-Thickness only 2.5mm, easy joint to your yacht or RV roof
5- Can be stepped on with soft soled shoesHigh efficiency mono crystalline solar panel
1. 60w 12v semi-flexible solar panel with weatherproof low-profile & lightweight design Electrical Technical Data | ||
Model NO |
SYK60-18M |
|
Peak Power (Pmax) |
(W): |
60 |
Production Tolerance |
(%): |
±3 |
Maximum Power Voltage (Vmp) |
(V): |
18 |
Maximum Power Current (Imp) |
(A): |
3.33 |
Open Circuit Voltage (Voc) |
(V): |
21.24 |
Short Circuit Current (Isc) |
(A): |
3.67 |
Maximum System Voltage |
(VDC): |
300 |
Solar Cell Type |
Mono |
|
Solar Cell Efficiency |
17.1% |
|
2. 60w 12v semi-flexible solar panel with weatherproof low-profile & lightweight design size&Packing | ||
Length |
880mm |
|
Width |
530mm |
|
Depth |
2.5mm |
|
N.W Per Piece |
1.7KGS |
|
Master Carton Size (5PC/CTN) |
955*605*200MM |
|
G.W/CTN |
17KGS |
|
AII technical data at standard test condition | ||
AM=1.5 E=1000W/M2 Tc=25°C | ||
Performance warantty: 90% output for 12years and 80% output for 25years | ||
