Bendable Solar Panel for Yartch 75w Solar pv Panels

Bendable Solar Panel for Yartch 75w Solar pv Panels photo-1
US$ 150 - 165 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
SYK75-18M
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name OEM
Model Number SYK75-18M
Material Monocrystalline Silicon
Size 1000*570*2.5mm
Number of Cells 36 pcs
Max. Power 75w

Specifications

1 Rounding corner to prevent from being hurt
2 Durable with aluminum backsheet, no glass
3 bending angle up to 30 degrees



Bendable solar panel 75w main Features:

1. Bending angle up to 30 degrees

2. Durable with aluminum backsheet, no glass

3. Light weight for easy carrying

4. the thickness only 2.5mm, easy joint to your yacht or RV roof

5. Can be stepped on with soft soled shoses

6. High efficiency mono crystalline solar panel

7.Rounding corners to prevent from being scratched

8. Built-in diode to prevent reverse charge



 75W semi- flexible solar panel +Cables 2*2.5 mm2

1. Bendable  Solar Panel 75w Electrical Technical Data

Model NO

SYK75-18M

Peak Power (Pmax)

(W):

75

Production Tolerance

(%)

±3

Maximum Power Voltage (Vmp)

(V):

18

Maximum Power Current (Imp)

(A):

4.17A

Open Circuit Voltage (Voc)

(V):

21.24

Short Circuit Current (Isc)

(A):

4.58A

Maximum System Voltage

(VDC):

1000

Solar Cell Type

Mono

Solar Cell Efficiency

16.5%

2. Bendable Solar Panel 75w Size&Packing

Length

1070mm

Width

530mm

Depth

2.5mm

N.W Per Piece

2.04KGS

Master Carton Size (5PCs/CTN)

114.5*60.5*20mm

N.W 10.2KGS

G.W

13KGS

AII technical data at standard test condition

AM=1.5 E=1000W/M2 Tc=25°C



 Picture:

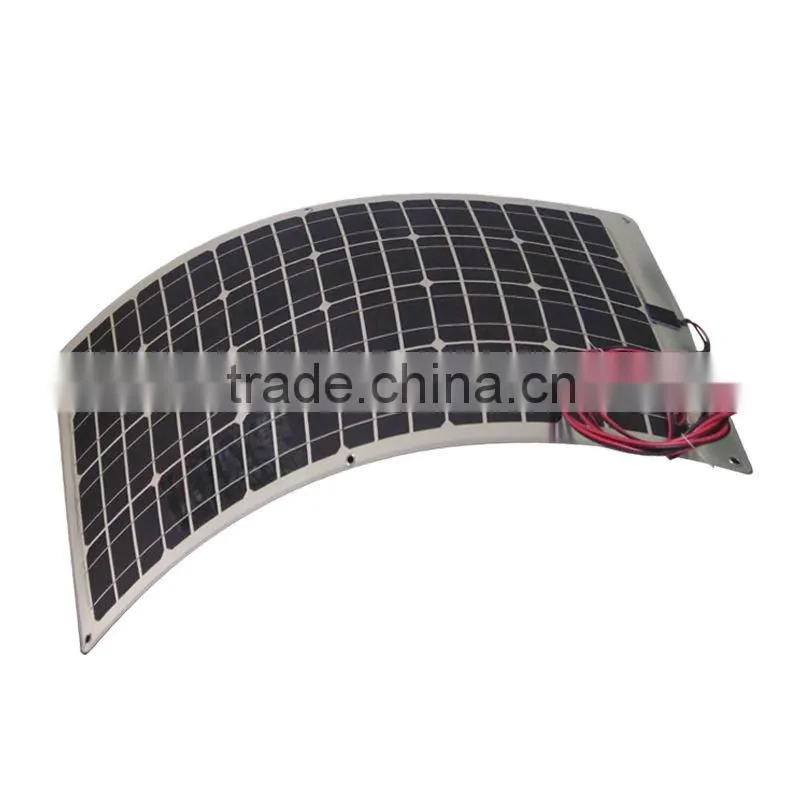

Bendable solar panel for yartch 75w solar pv panels
