Specifications
Suitable for lifting material from ground to the top in the food, agriculture, pharmaceutical, chemical industry.Overview:
Suitable for lifting material from ground to the top in the food, agriculture, pharmaceutical, chemical industry. such as snack foods, frozen foods, vegetables, fruits, confectionary. Chemicals or other granular products, etc.
This type of elevator take mor space but easier for cleaning.
Working Principle:
1). Manual feeding the bulk products into vibrator feeder hopper;
2). Bulk products will be feeded into the belt of incline elevator evenly by vibration;
3). Incline elevator will lifting products onto the top of weighing machine for feeding
Features:
1). Carry belt is make of good grade PP, suitable to work in high or low temperature;
2). Automatic or manual lifting material is available, carry speed also can be adjusted;
3). All parts easy install and disassemble, available to washing on carry belt directly;
4). Vibrator feeder will feed materials to carry belt orderly according to signal require;
5). Be make of stainless steel 304 construction;
6). Open design for easy cleaning after daily work;
7). Discharge angle can be design in more flate if apply for easy fragile products;
8). Washing pipe device on the bottom of elevator, easier for washing (Optional).
Specification:
Model |
SW-B2 |
Convey Height |
1800-4500 mm |
Belt Width |
220-400 mm |
Carrying Speed |
40-75 cell/min |
Bucket material |
White PP (Food grade) |
Vibrator Hopper Size |
650L*650W |
Frequency |
0.75 KW |
Power supply |
220V/50HZ or 60HZ Single Phase |
Packing Dimension |
6000L*900W*1000H mm |
Gross Weight |
650kg |

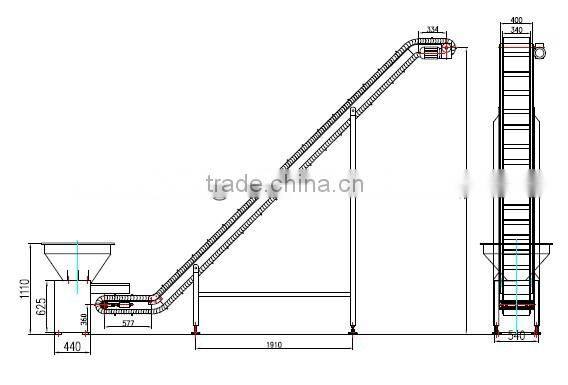

Drawing:
Options:
1). Vibration auto adjustment
Function: vibrator feeder will auto adjust vibration according to product volume inside the hopper
2). Washing pipe
Function: auto cleaning running belt after daily work
3). SUS304 Roller
Function: apply in moisture environment
Packing and shipping:
1. Polywood carton
2. Delivery: 15-20 days
3. FOB ZHONGSHAN
