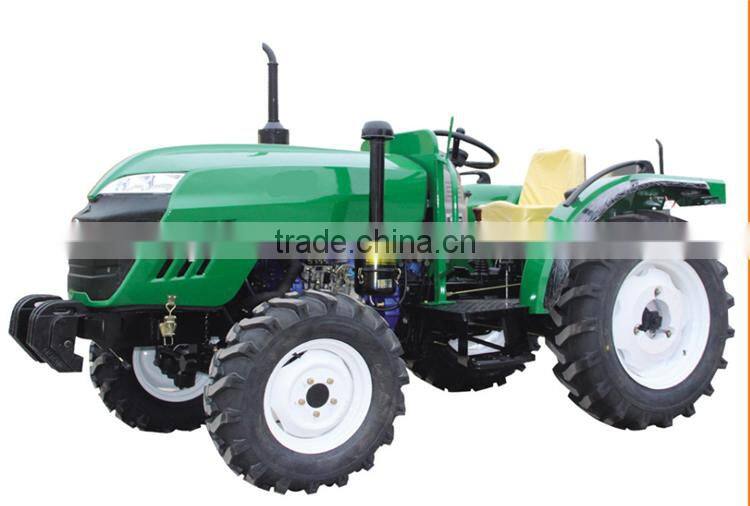

Changhui 40hp-60hp High Quality Cheap Farm Tractor

Changhui 40hp-60hp High Quality Cheap Farm Tractor photo-1
US$ 4,500 - 5,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4*4
Power(W) 29.4KW
Certificate CE
Brand Name CHANGHUI
Model Number 404
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Product Description

  changhui 40hp-60hp  high quality cheap farm tractor





This series use the TF chassis,4 wheel drive,16F+8R gear box,hydraulic steering,double cluth and the 3 point linkage is adjustable by floating way.The series can choose to equip the roll bar,hydraulic multi-valves,heater and AC cabin.

changhui 40hp-60hp high quality cheap farm tractorchanghui 40hp-60hp high quality cheap farm tractor

Tractor ModelTF404TF454TF504TF554
Drive Type4×4
Overall Dimension   L×W×H(mm)3770×1620×21303875×1635×2145
Wheel base(mm)19902010
Front wheel tread(mm)1265
Rear wheel tread(mm)1200--1500 (Common 1300)
Min. ground clearance(mm)315315330330
Min. steering radiusUnilateral brake(m)3.8
Not unilateral brake(m)4.3
Min. operating weight (KG)20802300
Gearbox gears number12F+12R
SpeedForward(Kw/h)2.46-34.02
Reverse(Kw/h)2.15-29.82
EngineModelC490BT-8A495BTA498BT-6AA4K41T55-002
Rated power (Kw)29.433.136.840.4
Rated speed (r/min)2400240024002400
Tires spec.Front tires8.3-208.3-208.3-24
Rear tires12.4-2813.6-28
Steering TypeFull hydraulic front wheels steering
Max. lifting force( KN )77.58.289.1
PTOTypeRear-mounted, Semi-independent type
Speed (r/min)540/760 or 540/1000
Power(Kw)≥26.3≥28.1≥31.3≥34.3
Control type of ploughing depthHeight control & flotation control
Max. traction force (KN)9.710.2/10.511.712.
Front / rear Ballast (KG)104/220



 1.The engine is equipped with HT DI cylinder and large diameter for powerful driving.

 2. LUK14 double action clutch from Germany is installed for independent operation.

 3. Full hydraulic steering system with smaller turning radius, being flexible and reliable.

 4. Combination4 ×(2+1) ×2 gear box having16 forward gears and 8 backward gears for easy operation and higher efficiency.

 5. The main gear shift adopts synchronizer-shift to reduce impact to gear to the maximum and thus, effectively elongated gear service life, range shift adopted tooth shift. The proper matching has guaranteed gear box’s best use and optimized cost performance ratio.

 6. CARRARO front axle from Italy is used with advanced structure and superb performance.

 7. Independent hydraulic fuel system with high reliability.

 8. Strengthened chasis having great extension capacity and high reliability.

 9. Intensified pressured lifter may be optimal with higher lifting, better operation and high reliability.

 10. Carbon fiber composite material is used for driving cab and covers with tensile strength 8 times of steel and gravity 1/4 of steel. The material durability is great for 20 years without color change. Stiffness is also very high in that restoration of shape can be realized after forceful impact.
