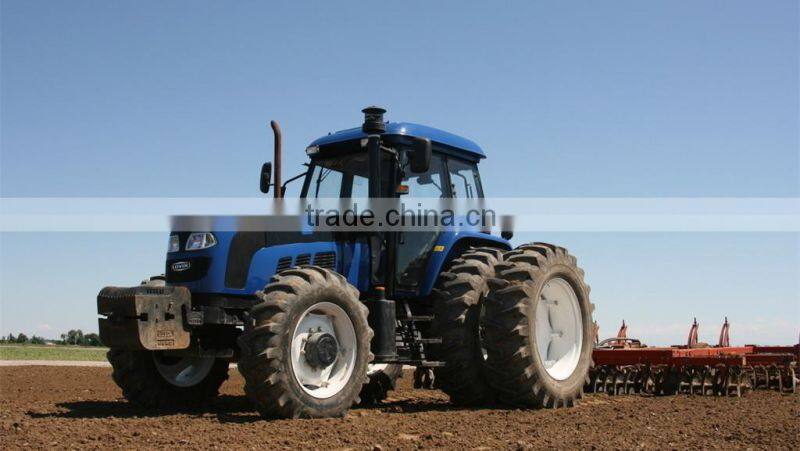

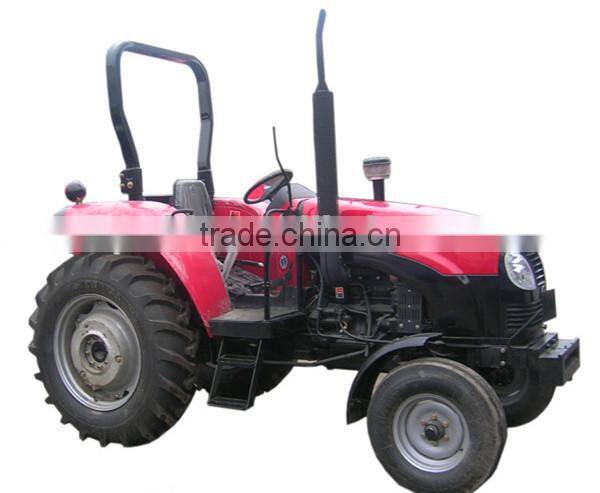

mini tractor small farm tractor

Specifications

chinese cheap farm tractor
1.famous diesel engine
2.FIAT front axle
3.big wheels big power
4.4wd farm tractor with tools

chinese 50HP 100HP cheap farm tractor with implements



Features of our Tractor (with modularized structure)



A.Easy to add accessories



With integrated frame and independent expandable PTO may easily add such accessories as loading, excavation, bulldozing, well digging, and lifting etc. to expand functions of tractor and increase utilization rate of tractor.



B.Easy to utilize matured technology
Adoption of matured technology in loading truck, engineering machinery, and other industry may directly be made for product components. For example, application of such technologies as caliper disc brake, wet clutch, synchronizer, fuel and gas booster etc may accelerate to upgrade technology of large-power tractor products relying on developing advantages in the other industries.



C.Easy to expand portfolio of product
Adoption of matured products from loading truck, engineering machinery, and agricultural machinery are made for the components. For each type of product, different series of specification have been designed. Optimized portfolios of these series of components have formed products with different power ranges, which may greatly reduce developing cycle of products. Over four years, eight models with more than 30 variants have totally been developed by 110-280 HP in successively, where mass production has been made for six models.



D.Easy to meet user requirement of individualization
Adjustment of speed ratio of transfer box may have different speed with different shifts to meet agricultural requirements of refinement in different areas. Adjustment of speed ratio of final transfer box may meet the requirements of downstream output rpm against different countries. The tractors may be customized according to users requirements against functional modules.



E.Easy to organize mass production
Adoption of general components has been made for modularized structures to fully utilize social resources and professionalized production and manufacturing platform in XCMG Group. Large-scale fixed assets is unnecessarily invested to produce wheel type of large tractor with high power in mass production, which may change traditional production organization method of tractor and solve current production bottleneck for production of large traditional tractor.



F.Easy to Service
All possible defects can easily be found and easy maintenance may be made due to modularized structure.







Items			Unit	CH160
Net Power of Engine			kW(HP)	118(160)
Driving Method				4x4(Four-wheel drive)
Dimension, Length/Width (tread) /Height (Cab Top)			mm	5830/2420(3510)/3010
Wheelbase			mm	3080
Wheelbase of Front Wheel			mm	1928-2240
Wheelbase of Rear Wheel			mm	1952-2568
Minimum Ground Clearances			mm	415
Minimum Steering Circle Radius			mm	6900
Minimum Working Weight			kg	7300
Front Counterweight≤			kg	504
Rated Traction Force			kN	36
Power Output Shaft	Model			Independent Rear-mounted
	Standard RPM		r/min	Double speed 540/100
Maximum Lifting Force			kN	36
forward gear	Low RPM	The number of stalls		7
		Driving Speed	km/h	2-17
	High RPM	The number of stalls		7
		Driving Speed	km/h	3-30
Reverse Shift	The number of stalls			7
	Driving Speed		km/h	2-17
Specification of Tire	Front Wheel			14.9-28R1
	Rear Wheel			18.4-38R1
Diesel Engine	Nominated Power/RPM		kW/r/min	118/2000
	Nominated Working Condition Fuel  Oil Consumption Rate		g/kW·h	≤230

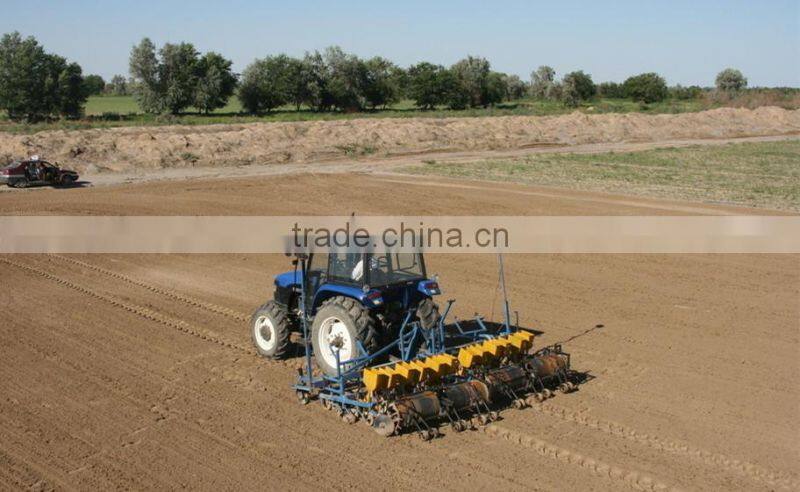

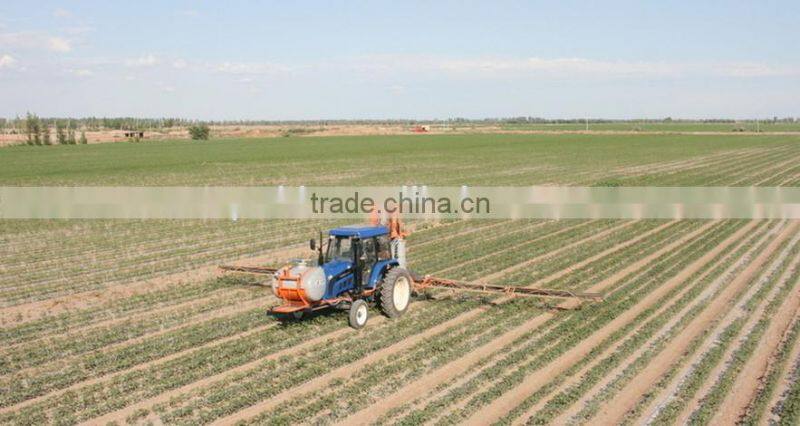

different uses of the tractors
