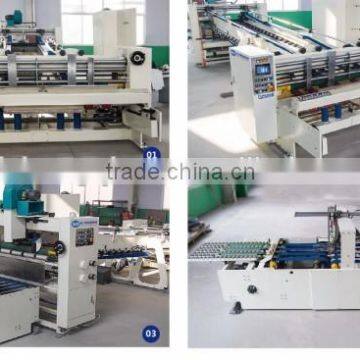

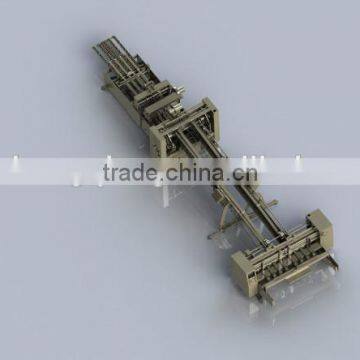

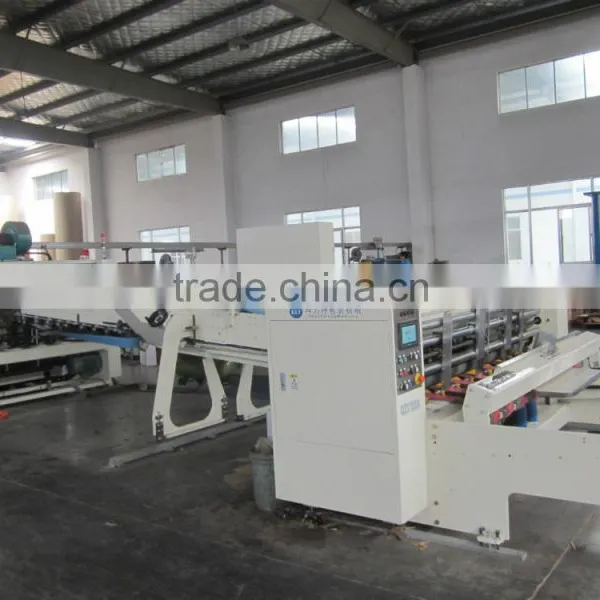

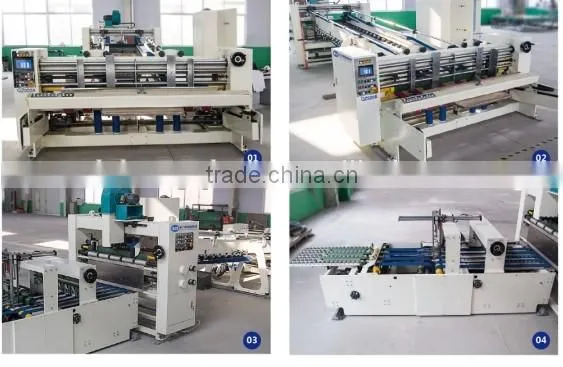

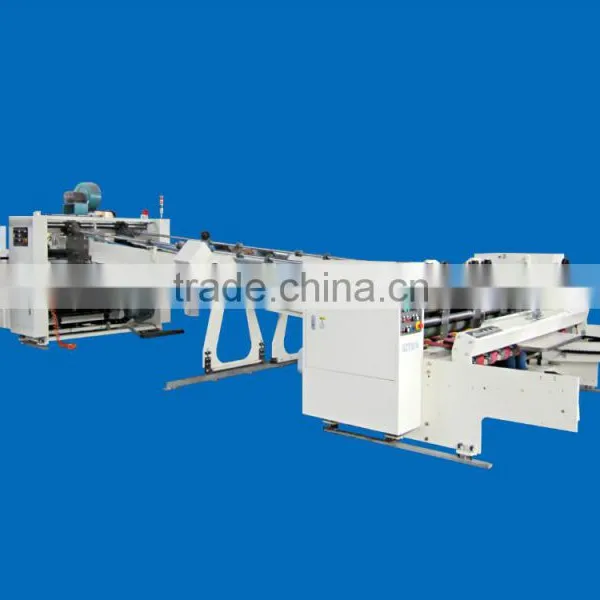

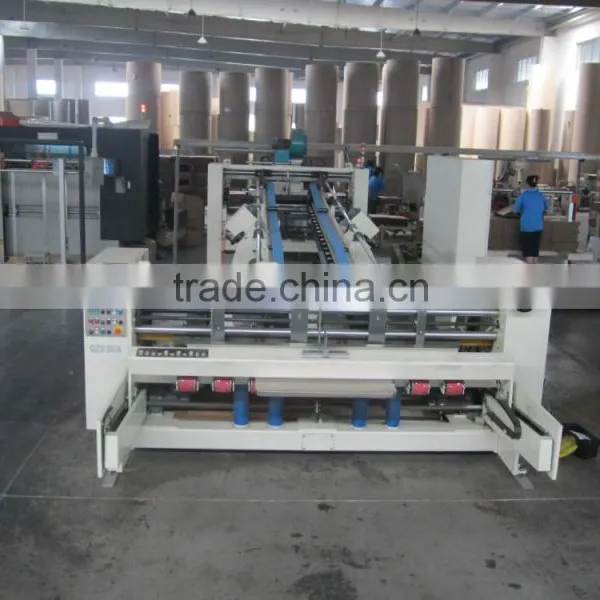

Help CenterFull Automatic Folder Gluer QZ920B
Related Products
-
High Quality Medium Price Plastic WB8611US$ 10 - 30MOQ: 100 Pieces -
Heavy Duty Hand Truck PH1118US$ 23 - 23MOQ: 100 Pieces
-
Qingdao High Quality Medium Price Plastic WB8611 From ZhongqiangUS$ 10 - 30MOQ: 100 Pieces
-
Bicycle Tralier Wheel 20inchUS$ 3.1 - 9.9MOQ: 200 Pieces
-
Cheap Price Rubber Bicycle Trailer Wheels 26x2.125 From ManufacturerUS$ 1.4 - 2.5MOQ: 200 Pieces
Specifications
advantage:1. Down fold( avoid of paperboard bouncing)
2. Align paperboard twice( avoid of paperboard being irregular)
The main advantages are:
1. Down fold of paperboard,
papaerboard could be pressed under and could not make stick part bounce.
2. Align papaerboard twice during stick box together.
So as to make paperboard come into line. Not appear paperboard irregularly.
Main Technical Parameter:
1. Max. speed of driving belt: 120m/min
2. Avaiable carton size, Min. paperboard size is 260x720mm
Max paperboard size is 900x2040mm
3. Available paperboard thickness : 2-8mm. It appalies to 3-5layers corrugated board such as A,B,C,AB,AC and the like.
4. Available carton type: similar to NS0210 die cutting or slotted carton with front and back straight.
5. Storable number of order: 500
6. Bale number: 5,10,15,20,25,30
7.Gross power: 18kw
8. Machine weight: 9.6t
9. Overall dimension of machine(length x width x height): 12.2x3.5x2.1m
10. Service environment: temperature range from 0℃~40℃ and humidity 30%-90%RH(without frosting).
11. Adaptable air source: the pressure is from 0.7 to 0.9Mpa and air demand is not less than 0.5m³/min.
