Specifications
Overhead line ACSR Aluminum Electrical Cable1, Material: Aluminum
2, Factory price
3, Export Packing
4, brand BONLE and O
Overhead line AAAC Electrical Aluminum Conductor
Overhead line AAAC Electrical Aluminum Conductor
Application:To supply 3 phase power, usually from a pole-mounted transformer, to the use’s service Head where connection to the service entrance cable is made. To be used of service of 600V or below (Phase to phase)and at a conductor temperature of 70°C maximum for Polyethylene insulation or of 90 °C maximum for Cross-linked Polyethylene insulation.
Construction: Concentric stranded of compressed conductors of aluminum 1350 H19 covered for weather proofing with Polyethylene, High Density Polyethylene (HDPE) or Cross-linked Polyethylene (XLPE) insulation, concentric stranded AAC, ACSR or 6210 AAAC Alloy neutral messenger.
Specification:
(1)ASTM B 230, aluminum wire, 1350-H19 for electrical purpose
(2)ASTM B 231, aluminum conductor, concentric laying stranded
(3)ASTM B 232, Aluminum conductor steel reinforced (ACSR)
(4)ASTM B 399, Concentric laying stranded aluminum alloy conductor 6201-T81
Service drop conductors meet or exceed all applicable requirement of ICEA S -76-474
Adapt Temperature:
* Ampacity rating base on 75°C conductor temperature; 25°C ambient temperature;emissivity 0.91 and coefficient of absorbtion of 0.95
Overhead line AAAC Electrical Aluminum Conductor

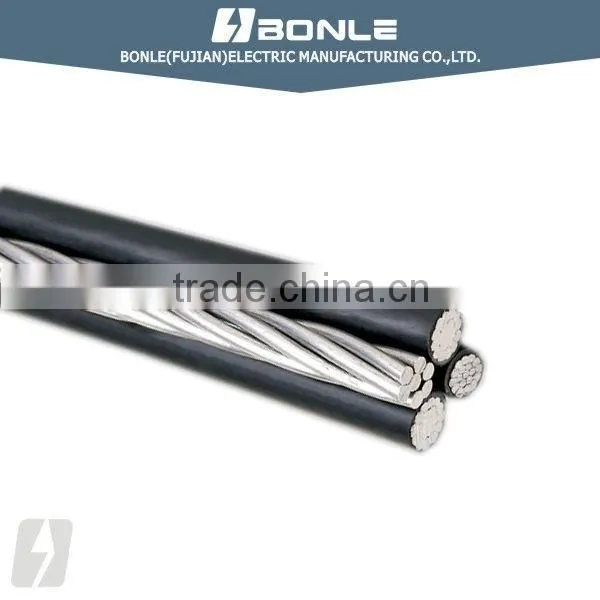

Quadruplex service drop conductors Aluminum Conductor with AAAC 6201 neutral
Prompt Delivery with Standard Export Packing
Our Factory
Business Chanel
Certification
Other production Line
Welcome to visit our factory and start our business here.
