150w Monocrystalline Thermodynamic Solar Panel

Name: 150w Monocrystalline Thermodynamic Solar Panel
Brand: Dcloud
SKU: 123253141
Availability: InStock

US$ 81.8 - 86.7 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Dcloud

Model Number:

LNFA-150W

Ningbo Dcloud Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Dcloud

Model Number LNFA-150W

Type Other

1)25 years warranty insured by chubb

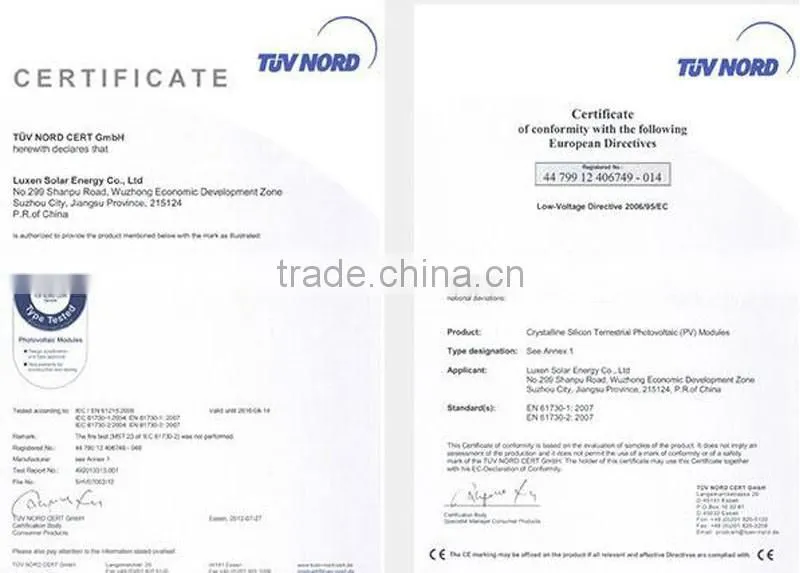

2)CE/TUV
3)High efficiency, good quality
4)Quick delivery
5)OEM available

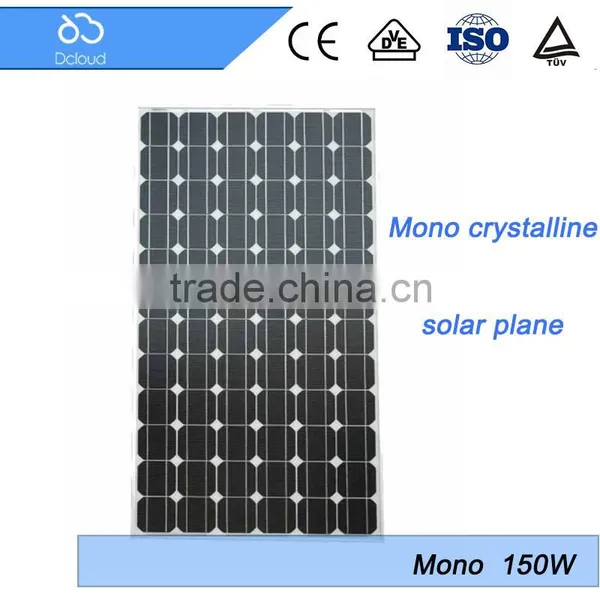

150w monocrystalline solar panel

Features

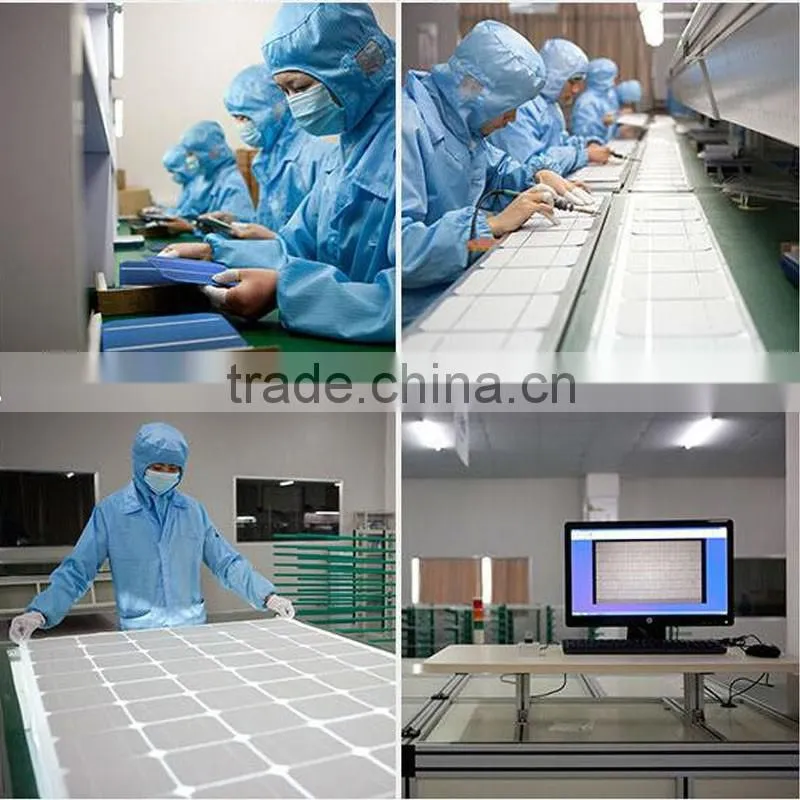

1) High module conversion efficiency, through superior manufacturing technology

2) 0 to +5W positive tolerance for mainstream products

3) Certified to withstand high wind loads and snow loads

4) Anodized aluminum is mainly for improving corrosion resistance

5) Anti-reflective, Highly transparent, low iron tempered glass

6) Excellent performance under low light environment

Benefits

25-year performance warranty

10-year product warranty

mono

STC	150W	155W	160W	165W
Maximum Power (Pmax)	150W	155W	160W	165W
Open Circuit Voltage (Voc)	22.30V	22.50V	22.70V	22.80V
Short Circuit Current (Isc)	8.87A	9.09A	9.17A	9.28A
Voltage at Maximum Power (Vmpp)	18.10V	18.20V	18.40V	18.50V
Current at Maximum Power (Impp)	8.31A	8.52A	8.72A	8.91A
Module Efficiency (%)	15.13%	15.63%	16.14%	16.64%

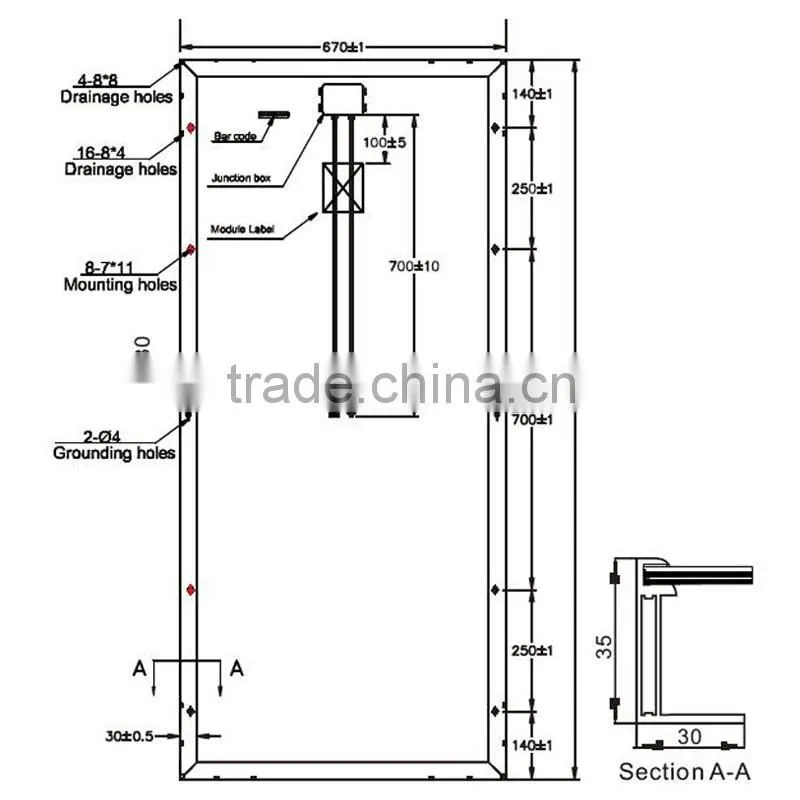

Mechanical Characteristics

Solar Cell	156x156mm (6inches)
No. of Cells	36 (4 × 9)
Dimensions	1480× 670 × 35mm
Weight	10.5 kgs
Front	Glass 3.2 mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP65/IP67 rated (2 bypass diodes)
Output Cables	TÜV (2Pfg1169:2007), UL 4703, 4.0 mm2,
	symmetrical length
	(-) 700mm and (+) 700mm
Connectors	MC 4 compatible
Mechanical load test	5400Pa
Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000 V DC (IEC) / 600V DC (UL)
Maximum Series Fuse Rating	10 A
Power Tolerance	0/+5W

Temperature Charateristics

Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of Pmax	-0.44 %/°C
Temperature Coefficient of Voc	-0.33 %/°C
Temperature Coefficient of Isc	0.055 %/°C
