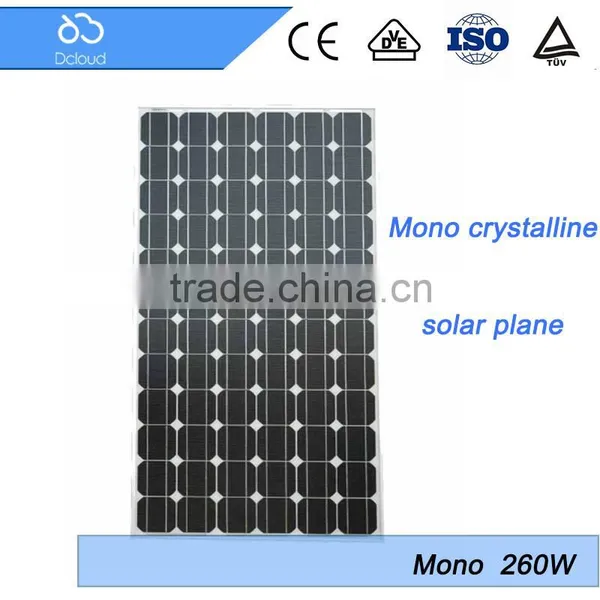

260w High Efficiency Monocrystalline Thermal Solar Panel

Name: 260w High Efficiency Monocrystalline Thermal Solar Panel
Brand: Dcloud
SKU: 123253177

US$ 176.8 - 176.8 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Dcloud

Model Number:

LNFA-260W

Ningbo Dcloud Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Dcloud

Model Number LNFA-260W

Type Other

1)25 years warranty insured by chubb
2)CE/TUV
3)High efficiency, good quality
4)Quick delivery
5)OEM available

260w monocrystalline solar panel

Features

1) High module conversion efficiency, through superior manufacturing technology

2) 0 to +5W positive tolerance for mainstream products

3) Certified to withstand high wind loads and snow loads

4) Anodized aluminum is mainly for improving corrosion resistance

5) Anti-reflective, Highly transparent, low iron tempered glass

6) Excellent performance under low light environment

Benefits

25-year performance warranty

10-year product warranty

mono

STC	250W	255W	260W	265W	270W
Maximum Power (Pmax)	250W	255W	260W	265W	270W
Open Circuit Voltage (Voc)	37.5V	37.7V	37.8V	38.0V	38.2V
Short Circuit Current (Isc)	8.74A	8.82A	8.94A	9.06A	9.17A
Voltage at Maximum Power (Vmpp)	30.4V	30.5V	30.7V	30.8V	31.0V
Current at Maximum Power (Impp)	8.22A	8.35A	8.47A	8.60A	8.71A
Module Efficiency (%)	15.37%	15.67%	15.98%	16.29%	16.60%

Mechanical Characteristics

Solar Cell	156x156mm (6inches)
No. of Cells	60(6*10)
Dimensions	164099240mm
Weight	20 kgs
Front	Glass 3.2 mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP65/IP67 rated (2 bypass diodes)
Output Cables	TÜV (2Pfg1169:2007), UL 4703, 4.0 mm2,
	symmetrical length
	(-) 900mm and (+) 900mm
Connectors	MC 4 compatible
Mechanical load test	5400Pa
Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000 V DC (IEC) / 600V DC (UL)
Maximum Series Fuse Rating	15 A
Power Tolerance	0/+5W

Temperature Charateristics

Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of Pmax	-0.44 %/°C
Temperature Coefficient of Voc	-0.33 %/°C
Temperature Coefficient of Isc	0.055 %/°C
