195w Rooftop Installation Photovoltaic Solar Panel

Name: 195w Rooftop Installation Photovoltaic Solar Panel
Brand: Dcolud
SKU: 123253137
Availability: InStock

US$ 135 - 135 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Dcolud

Model Number:

LNFE-195W

Ningbo Dcloud Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Dcolud

Model Number LNFE-195W

Type Other

1)25 years warranty insured by chubb
2)CE/TUV
3)High efficiency, good quality
4)Quick delivery
5)OEM available

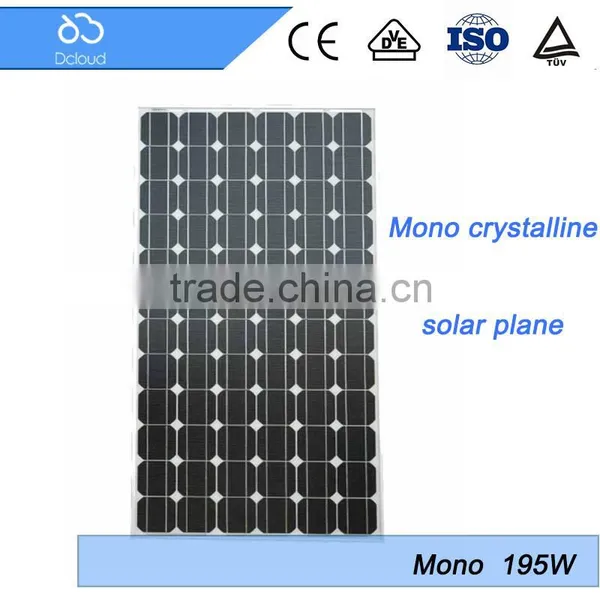

195w monocrystalline solar panel

Features

1) High module conversion efficiency, through superior manufacturing technology

2) 0 to +5W positive tolerance for mainstream products

3) Certified to withstand high wind loads and snow loads

4) Anodized aluminum is mainly for improving corrosion resistance

5) Anti-reflective, Highly transparent, low iron tempered glass

6) Excellent performance under low light environment

Benefits

25-year performance warranty

10-year product warranty

mono

STC	195W	200W	205W	210W
Maximum Power (Pmax)	195W	200W	205W	210W
Open Circuit Voltage (Voc)	44.9V	44.9V	45.0V	45.2V
Short Circuit Current (Isc)	5.62A	5.80A	5.91A	6.02A
Voltage at Maximum Power (Vmpp)	36.8V	36.8V	37.0V	37.1V
Current at Maximum Power (Impp)	5.27A	5.45A	5.55A	5.66A
Module Efficiency (%)	15.27%	15.67%	16.06%	16.45%

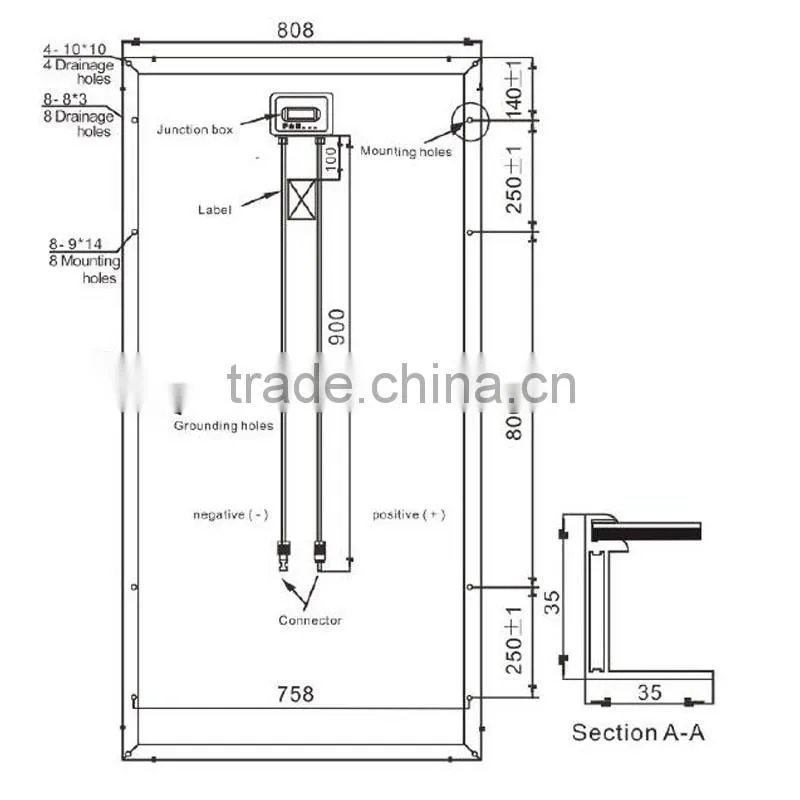

Mechanical Characteristics

Solar Cell	125x125mm (5inches)
No. of Cells	72(6*12)
Dimensions	158080835mm
Weight	15.5kgs
Front	Glass 3.2 mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP65/IP67 rated (2 bypass diodes)
Output Cables	TÜV (2Pfg1169:2007), UL 4703, 4.0 mm2,
	symmetrical length
	(-) 900mm and (+) 900mm
Connectors	MC 4 compatible
Mechanical load test	5400Pa
Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000 V DC (IEC) / 600V DC (UL)
Maximum Series Fuse Rating	15 A
Power Tolerance	0/+5W

Temperature Charateristics

Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of Pmax	-0.44 %/°C
Temperature Coefficient of Voc	-0.33 %/°C
Temperature Coefficient of Isc	0.055 %/°C
