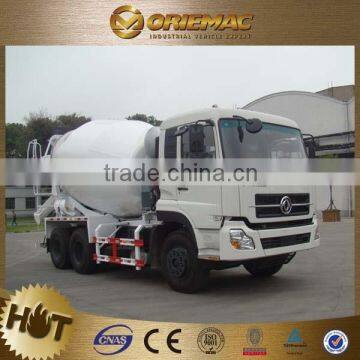

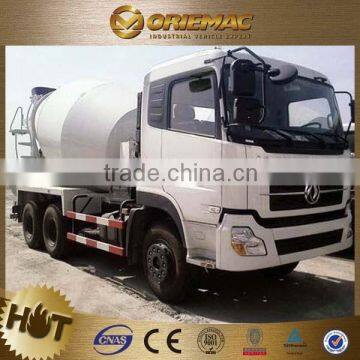

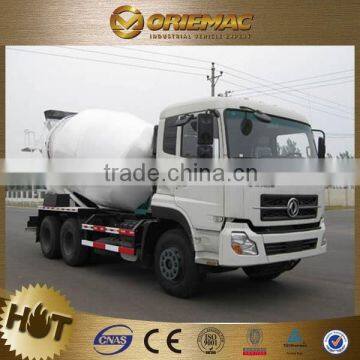

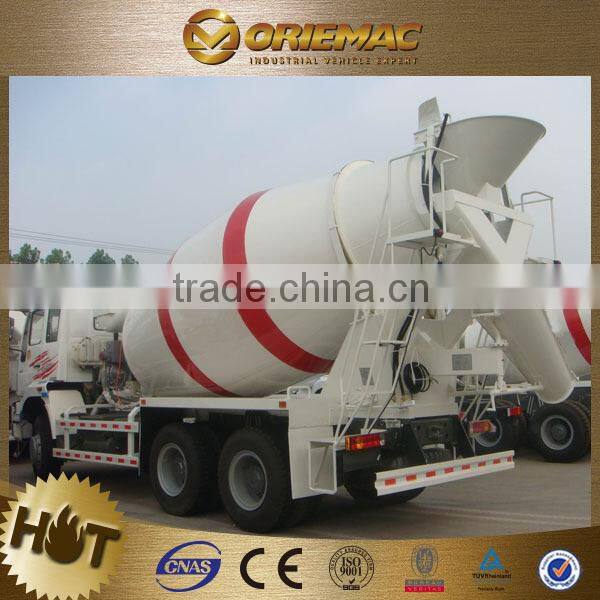

Dognfeng 8 Cbm Concrete Mixer Trucks for Sale

Concrete Mixer Techinical Specification

Chassis

Brand

Dongfeng

Chassis Model (Model No.)

HN5253GJB

Drive Mode

6*4

Tire

11.00-20

Engine

Model

L345 20

Horsepower (Hp)

345

Displacement(ml)/Power(kw)

8900/254

Emission

Euro III

Main Parameter

Overall dimension (MM)

L*W*H

8800*2500*3930

wheelbase

3600+1310

Axles No.

3

Weight (KG)

Gross weight

25000

Capacity

8M3

Kerb weight

12800

Leaf spring No.

9/12

Front/Rear Tread(mm)

2065/1860

Front/Rear Suspension(mm)

1370/2650

Max speed(km/h)

90

Gear Box

9 speed gearbox

Front/Rear Axle Load

7.5T/13T

Filling Rate(%)

63%

Feeding speed(M3/min)

≥3

Discharge speed(M3/min)

≥2.0

Residue Rate(M3/min)

≤1.0

Rotation Speed of mixing drum(r/min)

0-12

Inclination of mixing drum(°)

13-15

Hydraulic Drive Parameters

Oil Pump

Italy Brand

Hydraulic Motors

Decelerator

Remarks:
1. The term of validity for above quotation: One month.

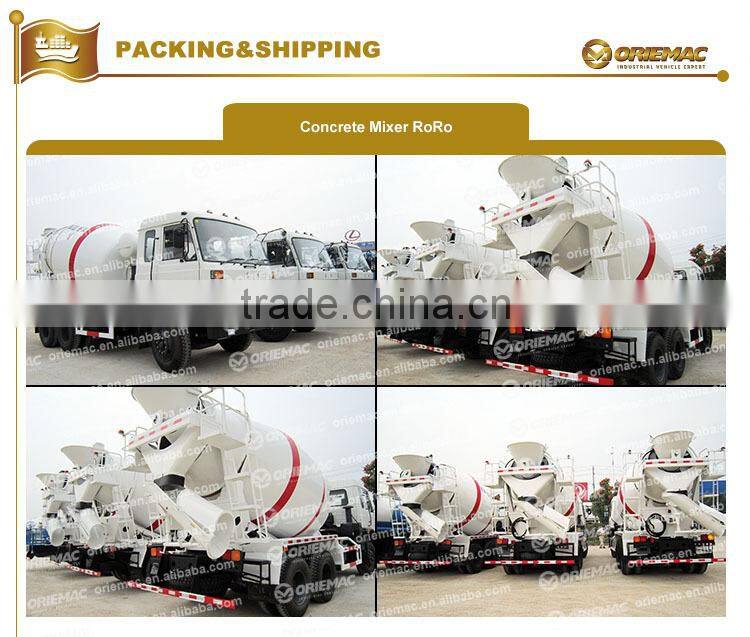

2. Method of shipment:Ro~Ro or bulk ship
3. Payment term:T/T (30% deposit in advance, the balance 70% payment before delivery)
4. Delivery term: In 15 days upon receipt of the deposit.
5. The guarantee period: One year warranty service.
6. Package: Main machine nude, attached parts and tools into standard export cas.
