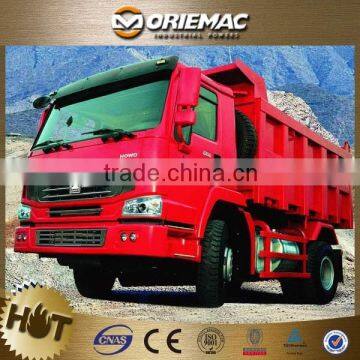

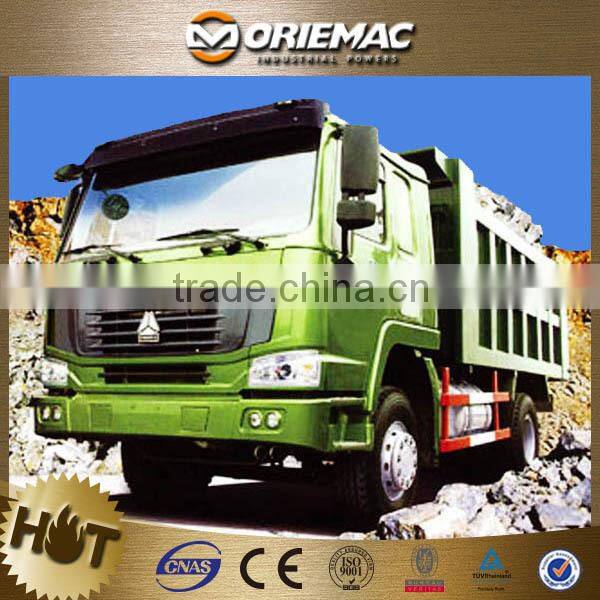

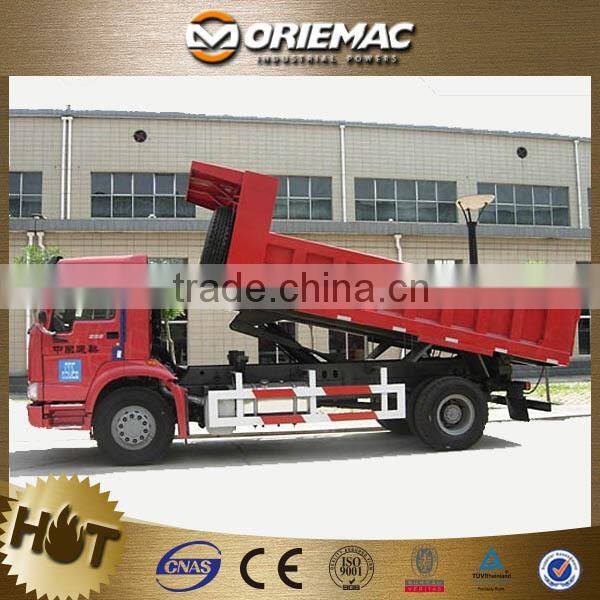

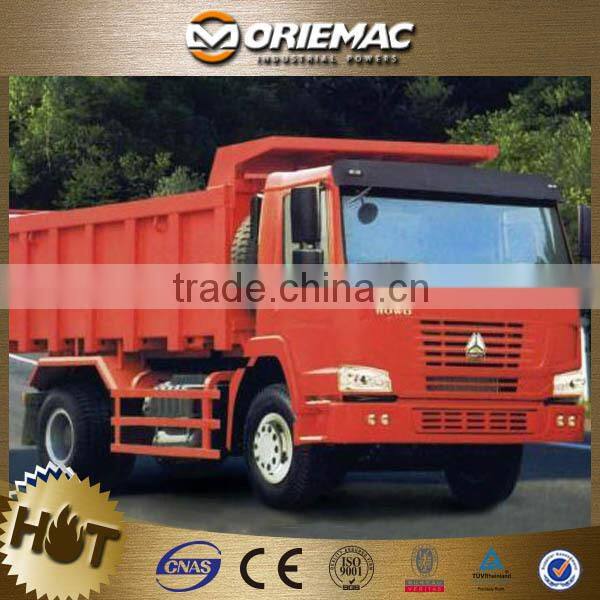

Top Brand Sinotruk Howo Heavy Duty 4*2 Dump Truck for Sale

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Shanghai Qingdao
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Drive Wheel	4x2	Capacity (Load)	11 - 20t
Horsepower	251 - 350hp	Condition	New
Transmission Type	Manual	Emission Standard	Euro 2
Fuel Type	Diesel	Engine Capacity	6 - 8L
Gross Vehicle Weight	7950	Place of Origin	Shandong, China
Brand Name	SINOTRUCK HOWO	Model Number	ZZ3167M3811
Dimensions (L x W x H) (mm)	698024963150mm

Product Description

Welcome to Oriemac!

As authorized dealer,we offer full kinds of construction machinery made by Chinese famous factory,including XCMG,SDLG,CHANGLIN,FOTON,LIUGONG,CHENGGONG.

Being in this line for 8 years ,we have exported thousands of products.You will get the best service here and high quality products with competitive price!
Please contact us if you have any questions about the products.

Contact Person:Betty Ding
Skype: dgongzuo
Mobile: +86-182-2104-5926

Email:betty.ding at

Top Brand sinotruk howo heavy duty 4*2 dump truck for sale:

GVW16000kg Driving Type 4x2
Model		ZZ3167M3811		ZZ3167M4611
Product code		316700038		316700046
Engine(Hp)		266/290		266/290
Power(Kw)		196/213		196/213
Cab		HW70
Transmission		HW15710
Front Axle		HF9
Steering		ZF8098
Rear Axles		HC16
Wheels & Tyres		8.5/12.00R20
Carriage Internal Dimensions(mm)		4190x2300x1200		5410x2300x1200
Cubage (m3)		11.6		15
Steel thickness of Carriage(mm)		Floor:8mm/Side:6mm		Floor:8mm/Side:6mm
Hydraulic Lift of Carriage		Middle Lift		Middle Lift
Dimensions		6980×2496×3150		8127×2496×3150
Kerb weight		7950		8000
Engine	Model		WD615.62		WD615.87
	Horsepower		266		290
	Maximum output Kw/r/min		196/2200		213/2200
	Maximum torque N.m/r/min		1100/1100-1600		1160/1100-1600
	Type		6-cylinder in line, 4-stroke, water- cooled, turbo-charged & inter-cooled, direct injection
	Bore x Stroke		126x130mm
	Valve		2
	Displacement		9.726L
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
	Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery)
Cab	SINOTRUK HW70 Standard cab,no bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder left driving,air Conditioner. Option: right driving; color
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW15710 transmission ,10 forward and 2 reverse Ratio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2)
Front Axle	SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes Option: disc brake
Steering	German ZF8098 Steering Gear Box ,hydraulic steering with power assistance Ratio:22.2-26.2
Rear Axles	HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System	Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake
Wheels & Tyres	Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire Option:12.00R20 radial tyre
Electrics	Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light Option:2x180Ah Batteries
Oil Tank	Square type-300L Aluminum alloy fuel tank
Other Optional	Vertical Muffler ;ABS ;Automatic Break Clearance Adjusting Arm ; Traveling Data Recorder ;Under Starting/Stopping Device ;Metal Pipeline ;Engine Protective Board
Delivery date	Within 45 days after receipt advance
Weight in kg	Gross vehicle weight 16000 Front axle loading capacity 9000 Rear axles loading capacity 16000
Performance	Maximum drving speed (km/h) 75 Fuel consumption (1/100 km) 35
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
