2015 low cost cable modem terminal system DOCSIS 3.0

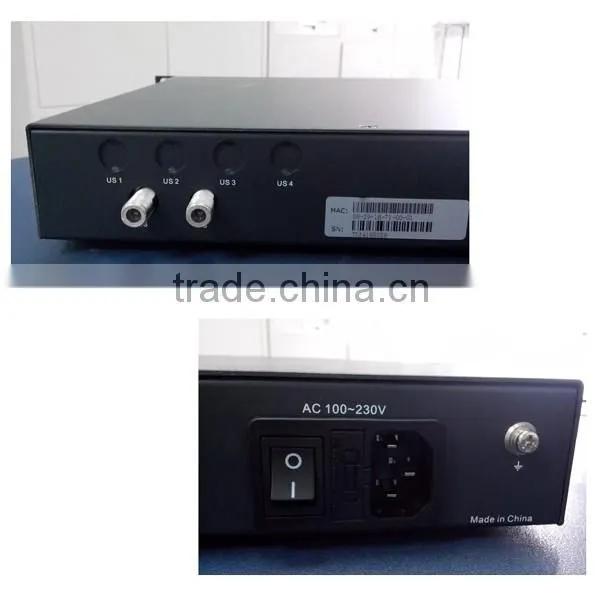

JH-HE3416 is one of a chassis CMTS with 19 inch 1U standard chassis, it is tailor made for head end room deployment. It is suitable for small broadband user’s scaled network. It has wide coverage and high efficiency.
There are three ways to manage it:
CLI after log in via serial port or by telnet;
Remote log in embed web NMS;
External NMS server based on SNMP protocols which run windows OS.
This items can compatible with DOCSIS3.0/2.0 cable modem.
Features
Compatible with DOCSIS3.0, C-DOCSIS standardwork with all cable modem based on DOCSIS, support both EURO DOCSIS and DOCSIS.
16 DS channels bound, 64/256/1024QAM modulation mode optional. Data rate could reach up to 1.1Gbps@1024QAM.
4 US channels bound, could be configured to QPSK, 3-8 grade QAM mode, data rate could reach up to 160Mbps.
Flexible on channels bound quantity set for operators convenient planning and use of channel resource.
Layer 3 routing functions, support static route, VLAN, NAT and DHCP relay agent.
There are GE RJ45 port and SFP on WAN port, convenient and flexible.
Built-in DHCP/TFTP server, support PPPoE.
Load balancing based on quantity of CM either DS or US.
Support IPV6, multicast function.
QoS based on service flow ensures bandwidth needs for various services.
Ensure network transmit safety via various kinds of methods such as BPI+, CM identification, anti-DOS attack , user isolation and IP source checking.
Support US channel spectrum analysis via Web and NMS management
Support three management ways: CLI after log in via serial port or by telnet; Remote log in embed web NMS; External NMS server based on SNMP protocols which run windows OS.

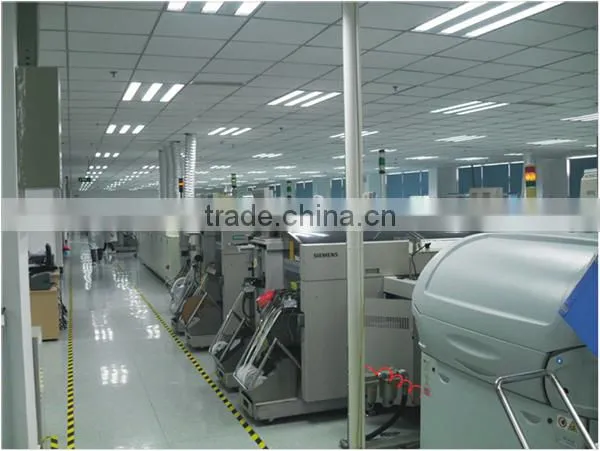

Workshop
Certificates
Payment and delivery
Items will be shipped within 7 working days after T/T in advance via ups dhl fedex or ems etc.
Warranty
1 year for hardware reparing,5 years for software updating.
