IPTV Head-end device CMTS DOCSIS 3.0
- 2000 Piece / Pieces per Month
- CHONGQING
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Chongqing, China | Brand Name: | Jinghong | Model Number: | JH-HE3416 |
Product Description
Specifications
IPTV Head-end device CMTS DOCSIS 3.01.Deployed at the front room;
2.Wide coverage and high efficiency;
3.CE & RoHS.
JH-HE3416 is one of a chassis CMTS with 19 inch 1U standard chassis, it is tailor made for head end room deployment. It is suitable for small broadband user’s scaled network. It has wide coverage and high efficiency.
There are three ways to manage it:
- CLI after log in via serial port or by telnet;
- Remote log in embed web NMS;
- External NMS server based on SNMP protocols which run windows OS.
This items can compatible with DOCSIS3.0/2.0 cable modem.
Features
- Compatible with DOCSIS3.0, C-DOCSIS standardwork with all cable modem based on DOCSIS, support both EURO DOCSIS and DOCSIS.
- 16 DS channels bound, 64/256/1024QAM modulation mode optional. Data rate could reach up to 1.1Gbps@1024QAM.
- 4 US channels bound, could be configured to QPSK, 3-8 grade QAM mode, data rate could reach up to 160Mbps.
- Flexible on channels bound quantity set for operators convenient planning and use of channel resource.
- Layer 3 routing functions, support static route, VLAN, NAT and DHCP relay agent.
- There are GE RJ45 port and SFP on WAN port, convenient and flexible.
- Built-in DHCP/TFTP server, support PPPoE.
- Load balancing based on quantity of CM either DS or US.
- Support IPV6, multicast function.
- QoS based on service flow ensures bandwidth needs for various services.
- Ensure network transmit safety via various kinds of methods such as BPI+, CM identification, anti-DOS attack , user isolation and IP source checking.
- Support US channel spectrum analysis via Web and NMS management
- Support three management ways: CLI after log in via serial port or by telnet; Remote log in embed web NMS; External NMS server based on SNMP protocols which run windows OS.
Specification
Downstream | Upstream | ||||||||
Euro- DOCSIS | DOCSIS | ||||||||
Modulation Mode | 64QAM/256QAM/1024QAM | 256QAM/64QAM/32QAM/16QAM/8QAM/QPSK | |||||||
Frequency Range(MHz) | 112-1002 adjustable | 91-857 adjustable | 5-65 | ||||||
Single channel bandwidth (MHz) | 8 | 6 | Single channel bandwidth (MHz) | 6.4 | 3.2 | 1.6 | |||
Binding channel quantity | 16 | 4 | |||||||
Max.total data bandwidth (Mbps) | 1000 | 857 | 160 | ||||||
Single channel data rate(Mbps) | 64QAM | 41 | 27 | Single channel data rate (Mbps) | 256QAM | 40.96 | 20.48 | 10.24 | |
128QAM | 35.84 | 17.92 | 8.96 | ||||||
256QAM | 55 | 38 | 64QAM | 30.72 | 15.36 | 7.68 | |||
32QAM | 25.60 | 12.80 | 6.40 | ||||||
Output level (dBmV) | 45-58 adjustable 1 stepping | 16QAM | 20.48 | 10.24 | 5.12 | ||||
8QAM | 15.36 | 7.68 | 3.84 | ||||||
QPSK | 10.24 | 5.12 | 2.56 | ||||||
Input level (dBmV) | -1~+29 | -4~+26 | -7~+23 | ||||||
Single channel baud rate (Msymps) | 64QAM | 6.952 | 5.056941 | Single channel baud rate (Msymps) | 5.12 | 2.56 | 1.28 | ||
256QAM | 6.952 | 5.360537 | |||||||
RF port number | 1 | 1 | |||||||
Reflection loss(dB) | > 14 | > 14 | |||||||
Output impedance(Ω) | 75 | Input impedance (Ω) | 75 | ||||||
Supported protocols | Euro-DOCSIS/DOCSIS3.0/2.0TCP/IP,ARP,RIPv2,ICMP,VLAN,multicast,OSPF,DHCP,TFTP,SNMP,PPPoE,DHCP relay agent,Telnet Etc. | ||||||||
Physical parameters | |||||||||
WAN Port | GE SFP | Input voltage | AC100230V | ||||||
GE RJ45 | Consumed power | < 50W | |||||||
RF port | F type socket (imperial) | Net weight | 2.50Kg | ||||||
Console port | RJ45 | Working conditions | Temperature: 0~40℃; Humidity: <90% | ||||||
Status display | LED | Size(W×H×D) | 430mm×44mm×285mm | ||||||

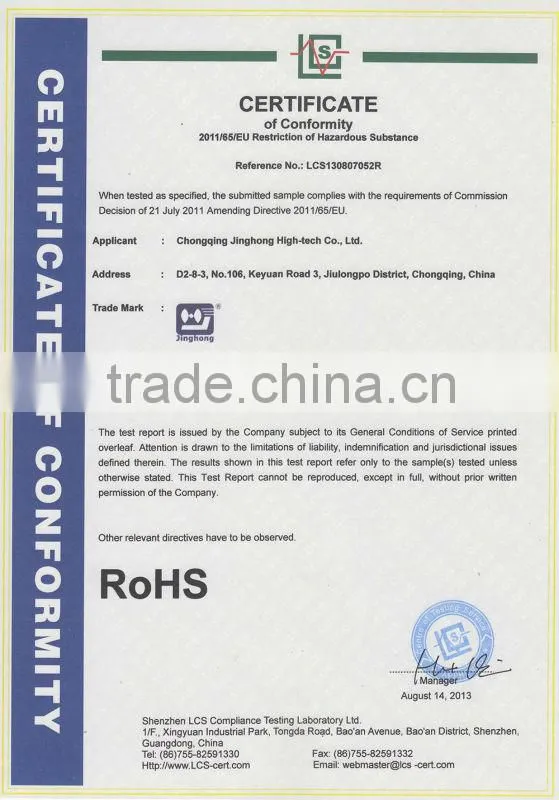

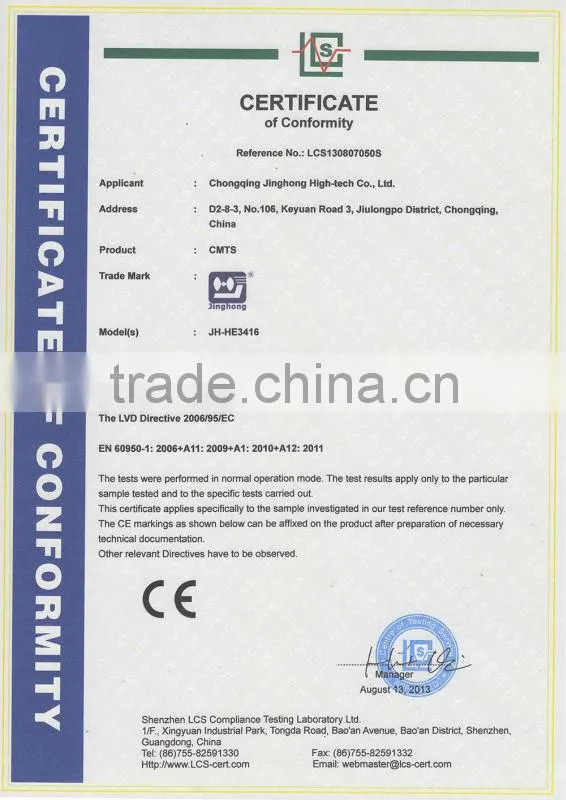

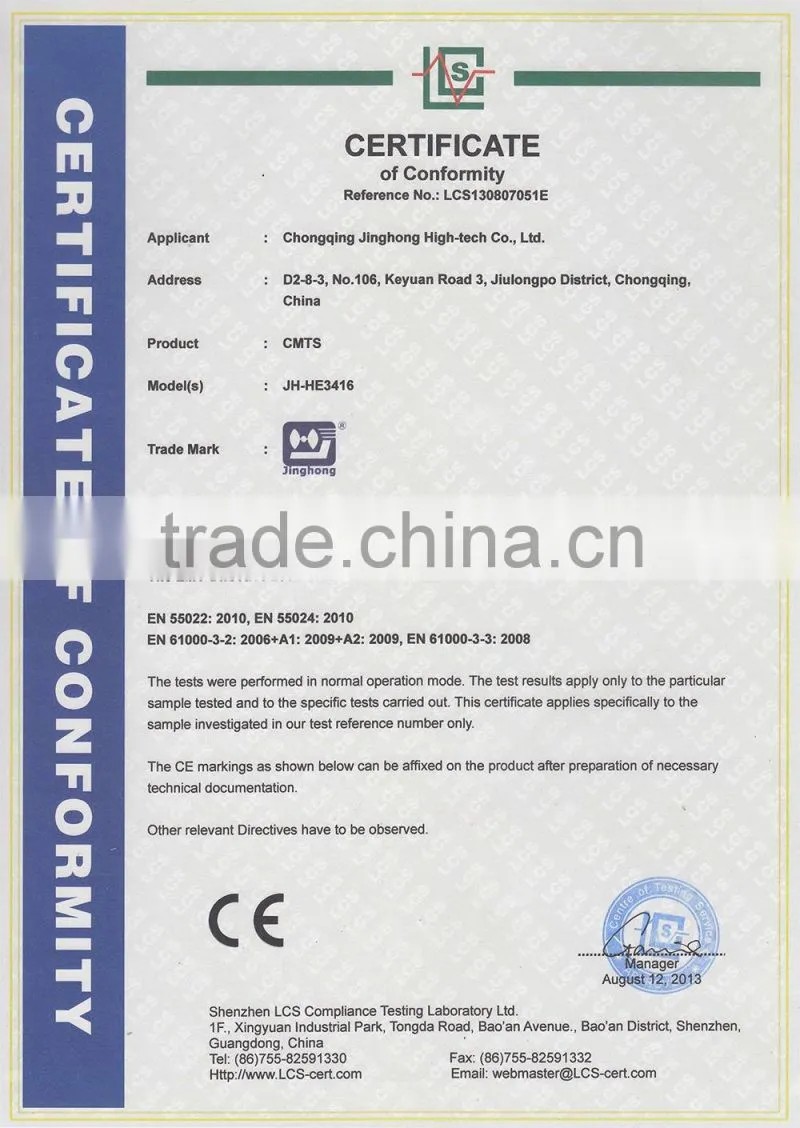

Certifications
Payment and delivery
Items will be shiped within 7 working days after T/T in advance via ups dhl fedex or ems etc.
Warranty
1 year for hardware repairing,5 years for software updating.
