Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module

Name: Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module
Brand: Jinghong
SKU: 123225547

Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module thumbnail-1

Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module thumbnail-2

Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module thumbnail-3

Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module thumbnail-4

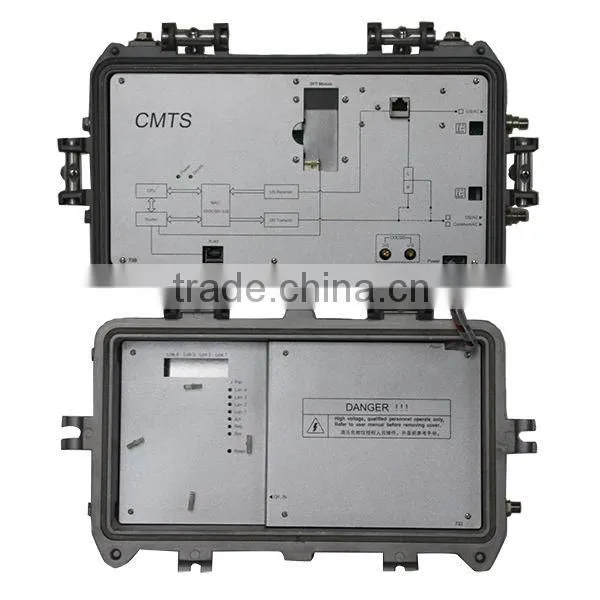

Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module photo-1

Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module photo-2

Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module photo-3

Advanced All in One CMTS Integrating CMTS Module ,CATV Optical Receiver and ONU Module photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Chongqing, China

Brand Name:

Jinghong

Model Number:

JH-DN3416

Contact Supplier Request Quote Chat Now

Chongqing Jinghong High-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Chongqing, China

Brand Name Jinghong

Model Number JH-DN3416

Specifications

all in one CMTS
1.Integrating Service workstation;
2.Simplified network structure, improved reliability;
3.CE & RoHS.

Summary

H-DN3416 is a D-node which has built-in CMTS module and CATV optical receiving module and ONU module (optional), those two optical input port connects upwards to CATV fiber and IP trunk fiber and the four high level output RF ports can connect to cable distribution network directly. D-node could finish CATV photovoltaic conversion, IP data photovoltaic conversion and mixture transmission of data and TV signals, actually, it is an “Integrated Service workstation”.

The built-in CMTS module in JH-DN3416 adapts the Jinghong D3 series CMTS core which accord with DOCSIS 3.0 standard, there are 16 QAM channels which has 1.1Gbps data rate; for upstream, there are 4 QPSK/QAM channels which could reach up to 160Mbps.For data port, there are 1000Mbps power port (RJ45) and 1000Mbps optical port (SFP). There is also built-in ONU module (optional) for choice, it can work not only with Ethernet but also connect to EPON. There are also built-in CATV optical receiver and 1000 MHz bandwidth RF amplification module. It adapts CNC equilibrium and attenuation adjustment, can be operated via remote control.

JH-DN3416 can completely replace the current optical node equipment which could simplify the HFC network structure. Its excellent transmission capability can meet the NGB requirements completely which enable itself to be the core equipment of triple play projects.

Function

CATV Optical Receiver
Ethernet fiber transceivers or ONU
CMTS: Combine IP data signal and CATV signal in coaxial cable.
Realize remote monitoring, configuration & resetting ,user management via NMS or Web log in
Support QoS, VLAN, L2VPN,PPPoE etc,built-in DHCP/TFTP Server

Features

ØBased on matured DOCSIS3.0 standard, lower investment risk
ØIntegrated equipment, simplified network structure, lower the construction cost
ØUse cable modem and interactive set-top box as terminals, cost effective, more options
ØOvercome traditional CMTS flaw, greatly reduced the funnel interference
ØSave frequency resource
ØMeet the requirement for broadcasting & TV integrated service development
ØRemote control, powerful management
ØAlmost no transmission distance limits, support 500 simultaneous online users
ØLow coverage cost
ØLow power consumption no-fan design, ensure stable running status outdoors
ØReplace all original optical node equipment completely

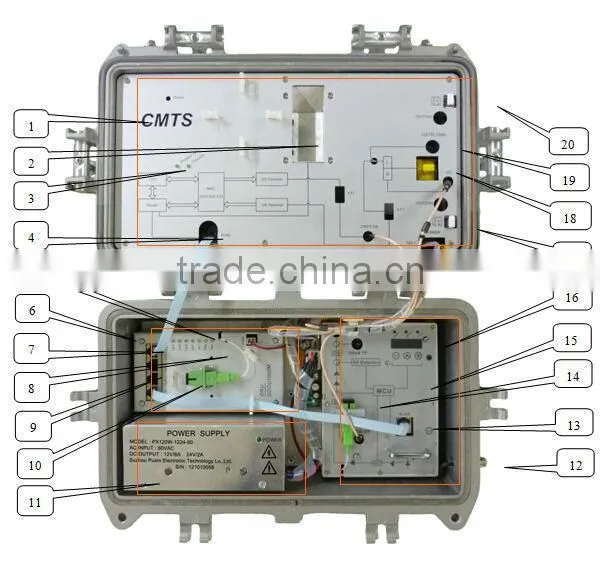

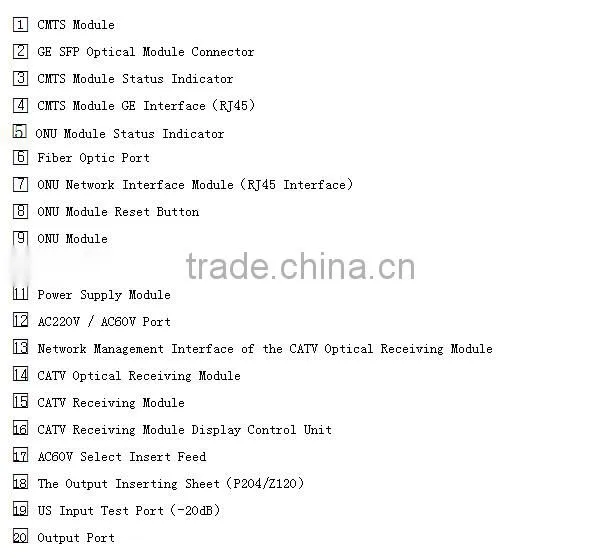

Internal Structure

Specifications

1) CMTS Module

		Downstream		Upstream
		Euro DOCSIS	DOCSIS
Modulation Mode		64QAM/256QAM/1024QAM		256QAM/64QAM/32QAM/16QAM/8QAM/QPSK
Frequency range (MHz)		112~858 adjustable	91~1000 adjustable	5~65/42(optional)
Single channel bandwidth (MHz)		8	6	Single channel bandwidth (MHz)		6.4	3.2	1.6
Binding channel quantity		16		4
Max.total data bandwidth (Mbps)		1100	857	160
Single channel data rate (Mbps)	64QAM	41	27	Single channel data rate (Mbps)	256QAM	40.96	20.48	10.24
					128QAM	35.84	17.92	8.96
	256QAM	55	38		64QAM	30.72	15.36	7.68
					32QAM	25.60	12.80	6.40
Output level (dBmV)		45~58 adjustable 1dB Step			16QAM	20.48	10.24	5.12
					8QAM	15.36	7.68	3.84
					QPSK	10.24	5.12	2.56
				Receiving Level (dBmV)		-1~+29	-4~+26	-7~+23
Single channel baud rate (Msymps)	64QAM	6.952	5.056941	Single channel baud rate (Msymps)		5.12	2.56	1.28
	256QAM	6.952	5.360537
Supported protocols		Euro-DOCSIS/DOCSIS3.0/2.0,TCP/IP,ARP,RIPv2,ICMP,VLAN,multicast,OSPF,DHCP,TFTP,SNMP,PPPoE,DHCP relay agent,Telnet,etc.

2) CATV optical receiving module

Item		Parameter	Target	Remarks
Optical Parameters	Optical wavelength	nm	1290~1560
	Optical receiver type		FC/APC
	Receiving power range	dBm	+2.0~-6.0
RF Parameters	Frequency Range	MHz	47~860	1002MHz Optional
	Flatness	dB	±1
	RF out port number		2
	Output Level	dBuV	≥114	@-1dBm Receive Power
	RF output impedance	Ω	75
	Gain Adjustment Range	dB	0~20	Adjustable,1dB stepp
	EQ adjustment range	dB	0~20	Adjustable,1dB stepp
	Output return loss	dB	≥14
	RF Output Test Point	dB	-20±1.0
Distortion	C/N	dB	≥51
	C/CTB	dBc	≥65
	C/CSO	dBc	≥61

Payment and delivery
Items will be shiped within 7 working days after T/T in advance via ups dhl fedex or ems etc.

Warranty

1 year for hardware reparing,3 years for software updating.
