catv products Cable Modem Termanal System made in china1.Integrated Service workstation;
2.High density
3.Strong technology

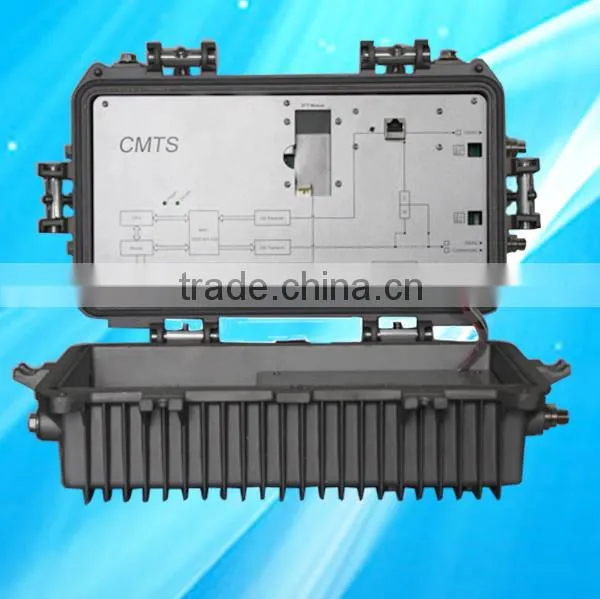

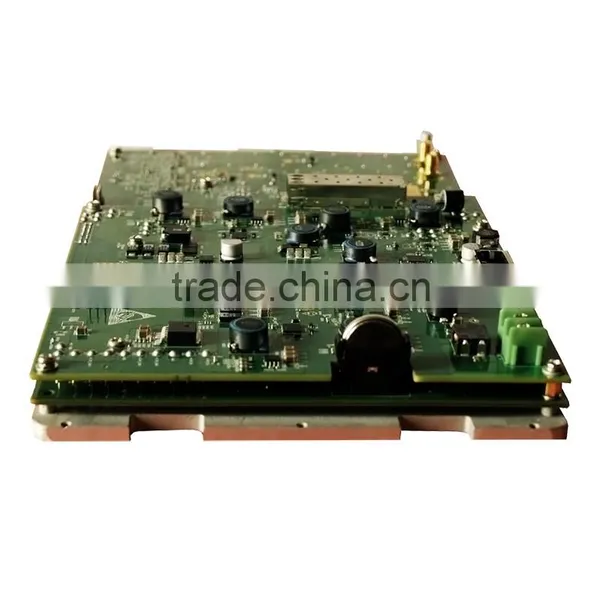

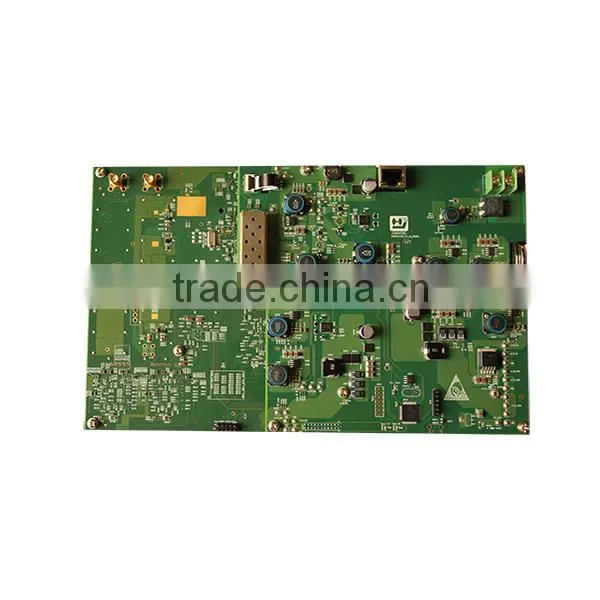

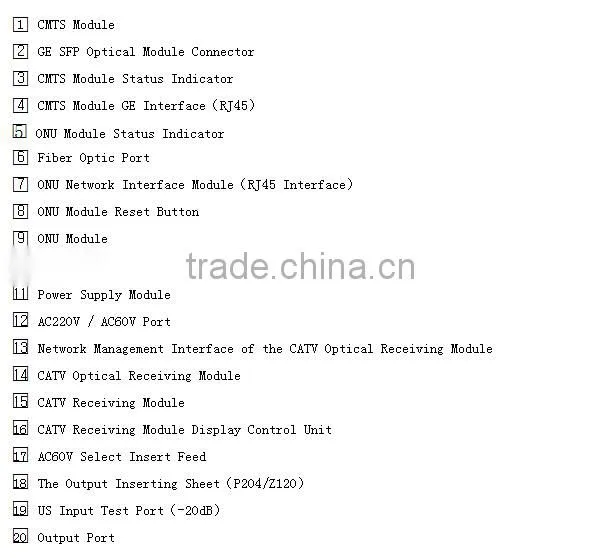

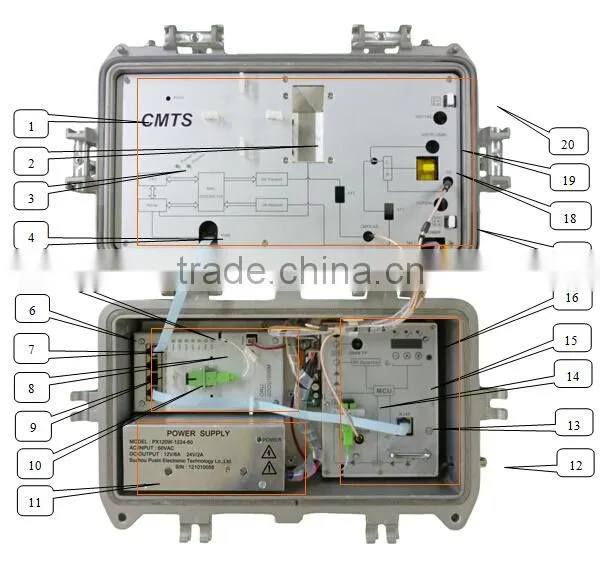

JH-DN3416 is a D-node device which integrates CMTS module ,CATV optical receiver and ONU module (optional). Its two optical ports are respectively connected CATV fiber and IP fiber trunk while its four RF port with high output level directly connect coaxial distributive network. Since D-node achieves CATV O/E conversion, IP data O/E conversion and transmission of mixed data and television signal, it is in fact a full service optical node.
JH-DN3416 simplifies HFC network and is fully available to replace the existing optical node device. Its superior transmission capacity meets all the requirements of NGB and, therefore, could be chosen as the most appropriate equipment of triple - play bundling.
Specification
1) CMTS Module
|
Downstream |
Upstream |
||||||
Euro DOCSIS |
DOCSIS |
|||||||
Modulation Mode |
64QAM/256QAM/1024QAM |
256QAM/64QAM/32QAM/16QAM/8QAM/QPSK |
||||||
Frequency range (MHz) |
112~858 adjustable |
91~857 adjustable |
5~85 |
|||||
Single channel bandwidth (MHz) |
8 |
6 |
Single channel bandwidth (MHz) |
6.4 |
3.2 |
1.6 |
||
Binding channel quantity |
16 |
4 |
||||||
Max.total data bandwidth (Mbps) |
1100 |
857 |
160 |
|||||
Single channel data rate(Mbps) |
64QAM |
41 |
27 |
Single channel data rate (Mbps) |
256QAM |
40.96 |
20.48 |
10.24 |
128QAM |
35.84 |
17.92 |
8.96 |
|||||
256QAM |
55 |
38 |
64QAM |
30.72 |
15.36 |
7.68 |
||
32QAM |
25.60 |
12.80 |
6.40 |
|||||
Output level (dBmV) |
45~58 adjustable 1dB Step |
16QAM |
20.48 |
10.24 |
5.12 |
|||
8QAM |
15.36 |
7.68 |
3.84 |
|||||
QPSK |
10.24 |
5.12 |
2.56 |
|||||
Receiving Level (dBmV) |
-1~+29 |
-4~+26 |
-7~+23 |
|||||
Single channel baud rate (Msymps) |
64QAM |
6.952 |
5.056941 |
Single channel baud rate (Msymps) |
5.12 |
2.56 |
1.28 |
|
256QAM |
6.952 |
5.360537 |
||||||
Supported protocols |
Euro-DOCSIS/DOCSIS2.0/1.1/1.0,TCP/IP,ARP,RIPv2,ICMP,VLAN,multicast,OSPF,DHCP,TFTP,SNMP,PPPoE,DHCP relay agent,Telnet,etc. |
|||||||
2) CATV optical receiving module
Item |
Parameter |
Target |
Optical Parameters |
Optical wavelength |
1290~1560 nm |
Optical receiver type |
FC/APC |
|
Receiving power range |
+2.0~-6.0 dBm |
|
RF Parameters |
Frequency Range |
47~860(1000)MHz |
Flatness |
±0.75 dB |
|
RF out port number |
4 |
|
Output Level |
≥104 dBuV@-1dBm receiving optical power |
|
RF output impedance |
75Ω |
|
Gain Adjustment Range |
0~20 dB |
|
EQ adjustment range |
0~20 dB |
|
Output return loss |
≥14 dB |
|
Distortion |
C/N |
≥51 dB |
C/CTB |
≥65 dBc |
|
C/CSO |
≥61 dBc |
