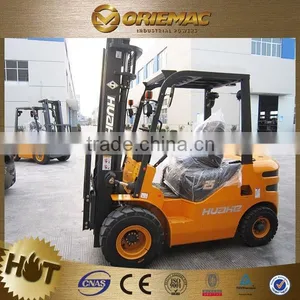

HUAHE 2500kg Diesel Forklift With 3-stage Mast HH25Z

Name: HUAHE 2500kg Diesel Forklift With 3-stage Mast HH25Z
Brand: HUAHE
SKU: 123222727

US$ 5,000 - 10,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

HUAHE

Shanghai Oriemac Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Lianyungang Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name HUAHE

Model Number HH25Z-W3-D

Type Manual Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 2500kg

Max. Lifting Height 3-6M

Min. Lifting Height 100mm

Fork Length 1070mm

Fork Width 125mm

Overall Dimensions 3750*1225*2090mm

Certification 3C,CE,ISO,CNAS,TUV

After-sales Service Provided Engineers available to service machinery overseas

HUAHE 2500kg diesel forklift with 3-stage mast HH25Z

	origin								ZHEJIANG HuaHe forklift company
	Model								HH25Z
	Power type								Diesel
	Rated capacity							kg	2500
	Load center							mm	500
Dimension	Lift height							mm	3000
	Free lift height							mm	130
	Fork size			NUL				mm	107012240
	Mast inclination			Front/Back				deg	6/12
	Front o-verhang							mm	482
	Overall dimensions			Length to face of fork				mm	2630
				Overall width				mm	1150
				Mast lowered height				mm	2095
				Overhead guard height				mm	2120
	Turning radius							mm	2380
	Min. right angle aisle width							mm	2000
Performance	Travel speed				No load			km/h	9/20
					Full load			mm/s	8.8/18.5
	Lift speed							mm/s	480
	Max. gradeability							%	20
	Max. drawbar pull							Kn	14
	self weight							kg	4020
Wheel&Tires	Tires	Front							7.00-12-12PR
		Rear							6.00-9-10PR
	Tread	Front						mm	970
		Rear						mm	970
	Wheelbase							mm	1650
	Min. ground (no ldad/full load)						Mast	mm	152/132
							Frame	mm	158/138
Drive units	Battery		Voltage					V/Ah	12/90
	Engine		Model						4TNE92
			origin						Japan
			Rated output/r.p.m					kw/r.p.m	33/2450
			Rated torque					N.m/r.p.m	150/1700
			No.Cylinder						2659
			Displacement					cc	4
			Type						Hydraulic
			Shift			(Fwd/Rwd)			1/1
	Operating pressure							Mpa	17.5
