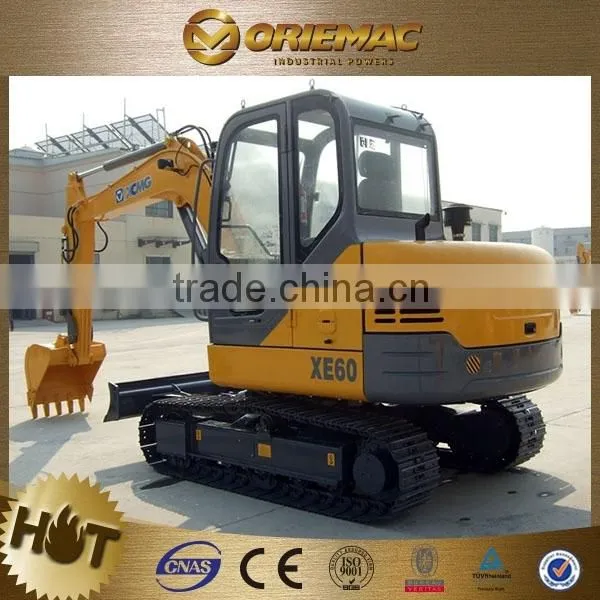

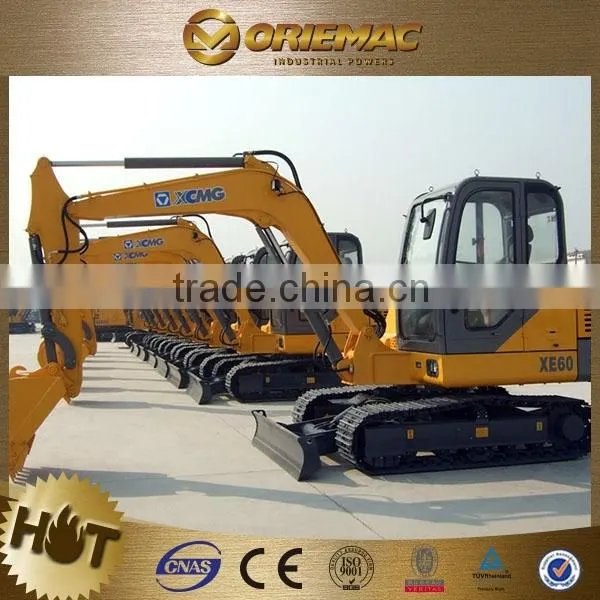

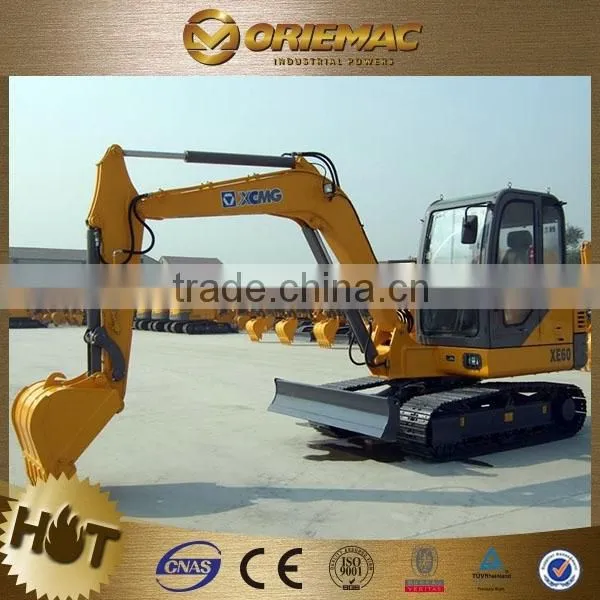

XCMG CRAWLWE EXCAVATOR 6ton/0.23cbm XE60

Name: XCMG CRAWLWE EXCAVATOR 6ton/0.23cbm XE60
Brand: XCMG
SKU: 123216943
Availability: InStock

US$ 30,000 - 50,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE60

Shanghai Oriemac Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE60

Condition New

Moving Type Crawler Excavator

Operating Weight 6ton, 6ton

Bucket capacity 0.23cbm, 0.23cbm

Maximum Digging Height 5660mm

Maximum Digging Depth 3830mm

Machine Weight 6ton

Max Digging Radius 3915mm, 3830mm

Rated Speed 4.2/2.6km/h XCMG XE60

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

XCMG CRAWLWE EXCAVATOR 6ton/0.23cbm XE60 !!!

XCMG 6 ton Crawler Excavator XE60
1.Bucket:0.23m3
2.Rated power:39kw
3.The operating weigh:5,920kg

1.Bucket:0.23m3

2.Rated power:39kw
3.The operating weigh:5,920kg

Model			XE60
Bucket capacity		m3	0.23
Standard bucket width		mm	700
Operation weight		kg	5,920
Dimension(in transportation)	Overall length	mm	5,850
	Overall width	mm	1,885
	Overall height	mm	2,584
	Min. clearance	mm	369
Engine	Model		4TNV94L
	Total displacement	L	3.054
	Rated output power	KW/rpm	39/2200
Digging performance	Max. digging height	mm	5,660
	Max. dumping height	mm	3,970
	Max. digging depth	mm	3,830
	Max. vertical digging depth	mm	2,680
	Max. digging radius	mm	6,130
	Boom deflection angle	°
	Min. slew radius	mm	2,450
	Min. rear slew radius	mm	1,650
	Bucket digging force	kn	42.5
Track type			Steel
Track width		mm	400
Travel System	Track length	mm	2,548
	Wheel base	mm	1,985
	Track gauge	mm	1,480
	Travel speed (Gear I/II)	km/h	3.8/2.1
	Gradeability	%	70
Slew speed		rpm	9
Bulldozing plate	Bulldozing plate width	mm	1,880
	Bulldozing plate height	mm	363
	Lifting distance	mm	402/456
Hydraulic pump type			Variable pump×1 +gear pump×1
Slew motor type			Piston hydraulic motor
Travel motor type			Piston hydraulic motor
Fuel tank capacity		L	120
Hydraulic oil tank capacity		L	85
